Removing instrument panel end mounting plate (right)

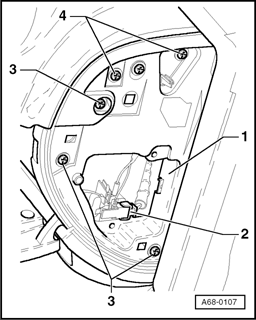

Fig 1: Removing Instrument Panel End Mounting Plate (Right)

GW00016610

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - 4 - (2x).
