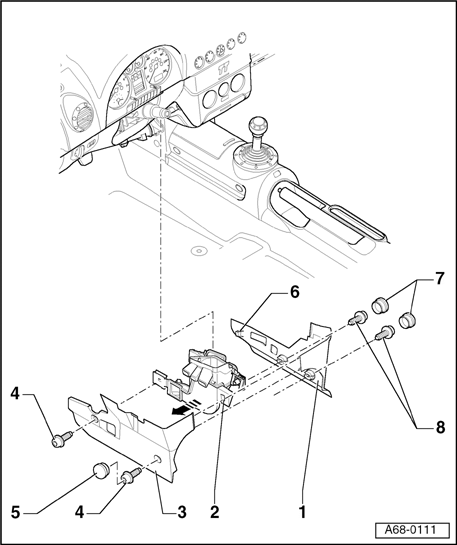

Footwell vent and footwell vent trim, removing and installing

1 - Right-hand footwell vent trim

• Removing

• Pry out screw caps - 7  -.
• Remove screws - 8  - (2x).
• Pull out footwell vent trim - 1  - to rear.

• Installing

• Make sure retaining hook - 6  - engages in instrument panel.
• Engage right-hand footwell vent trim - 1  - and left-hand footwell vent trim - 3  - in center.

2 - Footwell vent

• Removing
• Trims of right-hand and left-hand footwell vents ( - 1  - and - 3  - , respectively) removed.

• Pull out footwell vent - 2  - in direction of - arrow  -.

• Installing

• Press on footwell vent - 2  - until it engages.

3 - Left-hand footwell vent trim

• Removing

• Pry out trim cap - 5  -.
• Remove screws - 4  - (2x).

• Installing

• Engage trims of right-hand and left-hand footwell vents ( - 1  - and - 3  - respectively) in center.

4 - Screws (2x)

• Tightening torque 3.5 Nm

5 - Trim cap

6 - Retainer hooks

7 - Trim caps (2x)

8 - Screws (2x)

• Tightening torque 3.5 Nm
