Component Location Overview - Front Adjustment Motors, Electric-Manual Climate Control System

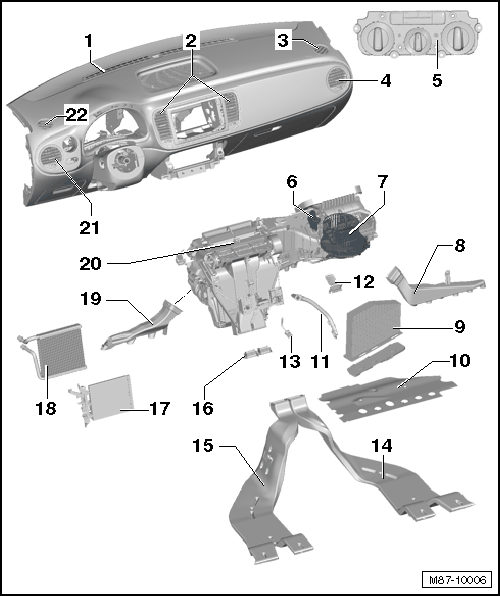

Fig 1: Identifying Front Motors Components Location (Electric Manual A/C System)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Panel
   • Instrument panel with defroster vent
   • Air guide channel installed under the instrument panel
   • Overview - Air guide channel. Refer to AIR DUCT .
   • Removing  and installing  . Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
2. Center Vent
   • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
   • Removing  and installing  . Refer to CENTER VENT, REMOVING AND INSTALLING .
3. Right Side Vent
   • Air distribution occurs through the defrost intermediate piece -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Defroster Vent Intermediate Piece.
   • Removing  and installing  . Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
4. Right Side Vent
   • The air distribution is activated using the intermediate piece for the vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Instrument Panel Vent Intermediate Piece.
   • Removing  and installing  . Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
5. Front A/C Display Control Head -E87- with A/C Control Module -J301-
   • Two-piece version
   • Rear heat controls. Refer to -item 16- COMPONENT LOCATION OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR - list item: Rear Section Display Control Head .
   • Function. Refer to COMPONENT LOCATION OVERVIEW - DISPLAY AND CONTROL HEAD, ELECTRIC-MANUAL CLIMATE CONTROL SYSTEM .
   • Removing  and installing  . Refer to DISPLAY CONTROL HEAD .
   • With Fresh Air Blower Switch -E9-
   • With Fresh Air/Recirculation Door Switch -E159-
   • Also with Immediate Heating Button -E537- in vehicles with auxiliary heater
   • Depending on the vehicle equipment level, with Seat Heating/Ventilation Adjuster -E399-
6. Recirculation Door Motor -V113-
   • With Recirculation Door Motor Position Sensor - G143-
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Removing  and installing  . Refer to Recirculation Door Motor -V113-, REMOVING AND INSTALLING .
7. Fresh Air Blower -V2-
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Removing  and installing  . Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
8. Front Passenger Side Footwell Vent
   • Removing  and installing  . Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
9. Dust and Pollen Filter
   • Dust and Pollen Filter Information. Refer to DUST AND POLLEN FILTER INFORMATION .
   • Observe the replacement interval. Refer to the Maintenance, Diagnosis .
   • There are different versions. Refer to the Parts Information.
   • Removing  and installing  . Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .

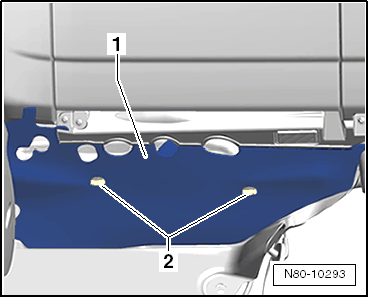

10. Footwell Trim Panel for the Front Passenger Side
    • Removing  and installing  . Refer to Figure.
11. Condensation Water Drain
    • Removing  and installing  . Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
    • Checking using the Vehicle Diagnostic Tester CONDENSATION WATER DRAIN, CHECKING .
12. Fresh Air Blower Series Resistor with Fuse -N24-
    • Removing  and installing  . Refer to Fresh Air Blower Series Resistor with Fuse -N24-, REMOVING AND INSTALLING .
13. Evaporator Temperature Sensor -G308-
    • Removing  and installing  . Refer to Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING .
14. Right Rear Vent Air Duct
    • Removing  and installing  . Refer to FRONT AIR VENT AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
15. Left Rear Vent Air Duct
    • Removing  and installing  . Refer to FRONT AIR VENT AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
16. Closure Caps
    • Only for vehicles without air duct/vent installed in the rear center console
    • Removing  and installing  . Refer to CLOSURE CAP ON THE HEATER AND A/C UNIT, REMOVING AND INSTALLING .
17. Auxiliary Heater Heating Element -Z35-
    • Only installed on vehicles with a diesel engine without an auxiliary coolant heater.
    • Removing  and installing  . Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
    • Switch on criteria. Refer to Auxiliary Heater Heating Element -Z35-, SWITCH-ON CRITERIA FOR THE ACTIVATION .
    • Switch-off criteria. Refer to Auxiliary Heater Heating Element -Z35-, ACTIVATION SWITCH-ON CRITERIA .
18. Heater Core
    • Removing  and installing  . Refer to HEATER CORE, REMOVING AND INSTALLING .
19. Driver Side Footwell Vent
    • Removing  and installing  . Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
20. Heater and A/C Unit
    • Disassembling and assembling. Refer to OVERVIEW - HEATER AND A/C UNIT, ELECTRIC MANUAL CLIMATE CONTROL SYSTEM .
    • Removing  and installing  . Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
    • Overview - Attachments. Refer to OVERVIEW - HEATING AND A/C UNIT ATTACHMENTS .
    • Overview. Refer to OVERVIEW - EVAPORATOR HOUSING .
21. Left Side Vent
    • The air distribution is activated using the intermediate piece for the vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Instrument Panel Vent Intermediate Piece.
    • Removing  and installing  . Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
22. Left Side Vent
    • Air distribution occurs through the defrost intermediate piece -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Defroster Vent Intermediate Piece.
    • Removing  and installing  . Refer to .
