Overview - Heating And A/C Unit Attachments

WARNING: This page is about a different variant/trim than selected.

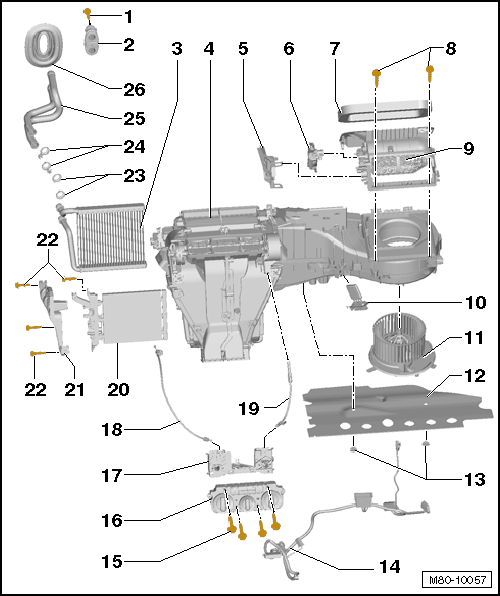

Fig 1: Identifying Heater And A/C Unit Components
GWWM80-10057Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 2 Nm
    • Bolt for coolant lines -25-
    • The coolant lines will be able to move slightly when the bolt is loosened
  2. Bracket
    • Bracket for Coolant Pipes
    • Included with coolant pipe replacement part
  3. Heater Core
  4. Heater and A/C Unit
  5. Cover and Bracket for Recirculation Door Motor -V113-
  6. Recirculation Door Motor -V113-
  7. Foam Seal
    • Fresh air intake seal to the body
  8. Bolts
    • Air intake duct bolts on the heater and A/C unit
  9. Air Intake Housing with Fresh Air/Air Recirculation Door
    • Cannot be disassembled
  10. Fresh Air Blower Series Resistor with Fuse -N24-
  11. Fresh Air Blower -V2-
  12. Cover/Insulation
    • Front passenger footwell
  13. Screw Clips
    • Quantity: 2
  14. Wiring Harness
    • There are different versions (for example, with or without connection to Auxiliary Heater Control Module -J604-). Refer to the Parts Information.
    • Mark the allocation before disconnecting the connectors (connectors are the same design for different components)
    • Secure wiring harness to mounting points provided on housing (using cable ties or on mounts) so that it does not come into contact with moving components.
  15. Bolt
    • 1.5 Nm
    • Hold the display control head front section and rear section together
    • Quantity: 4
  16. Display Control Head Front Section Heater Control Module -J65-)
  17. Rear Section Display Control Head
  18. Temperature Control Door Release Cable
  19. Flexible Shaft
  20. Auxiliary Heater Heating Element -Z35-
  21. Cover for Coolant Pipes and Heater Core
    • The illustration shows the version for vehicles with Auxiliary Heater Heating Element -Z35-.
    • There are different versions for vehicles with or without the Auxiliary Heater Heating Element -Z35- (on vehicles without the Auxiliary Heater Heating Element -Z35-, the opening will be sealed with this cover). Refer to Parts Information.
  22. Bolts
    • 2 Nm
    • Quantity: 4
  23. O-rings
    • Replace after removing  .
    • Between the coolant lines and the heater core
    • Pay attention to the different versions. Refer to the Parts Information.
    • Coat with coolant before assembly
    • Quantity: 2
  24. Clamps
    • 2 Nm
    • Check for proper seating
    • For vehicles with heating, ventilation and air conditioning installed
    • Quantity: 2
  25. Coolant Lines
    • Supply and return with bracket -2-, replaceable part
  26. Seal
    • Seal between the bulkhead and the heater and A/C unit
