Overview - Evaporator Housing

WARNING: This page is about a different variant/trim than selected.

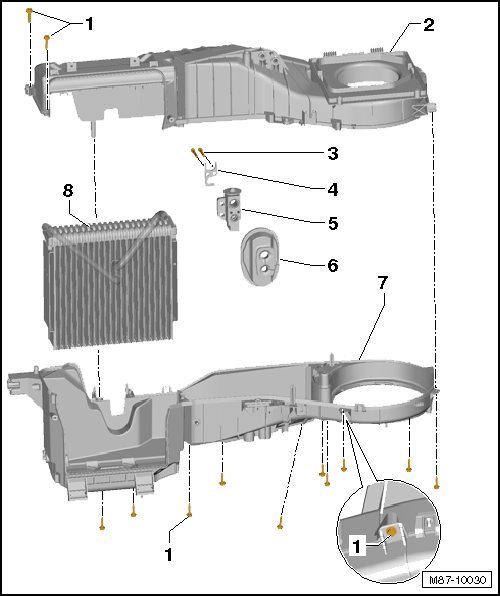

Fig 1: Exploded View Of Evaporator Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolts
- 1.5 Nm
- Quantity: 12
Evaporator Housing Upper Section
Bolts
- 5 Nm
- Quantity: 2
Threaded Plate
- To the threaded connectors for the refrigerant lines on the evaporator
Expansion Valve
- Removing and installing . Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
Seal/Insulation
- Expansion valve heat insulation
Evaporator Housing Lower Section
Evaporator
- Check insulation, it must be completely present
- Removing and installing . Refer to EVAPORATOR, REMOVING AND INSTALLING .
