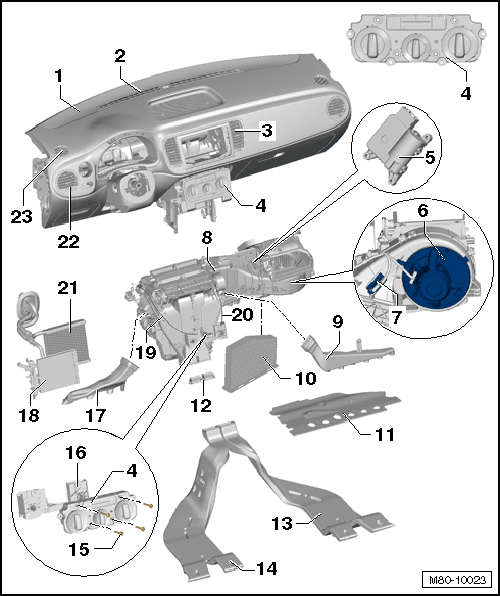

Component Location Overview - Components In Front Vehicle Interior
WARNING: This page is about a different variant/trim than selected.
- Instrument Panel
- Air guide channel installed under the instrument panel
- Overview. Refer to AIR DUCT .
- Removing and installing . Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Defrost Vent
- The defrost vent cannot be removed and installed because it is a component of the instrument panel.
- Center Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .
- Removing and installing . Refer to CENTER VENT, REMOVING AND INSTALLING .
- Front Section Display Control Head
- Two-piece version
- Rear heat controls. Refer to -item - COMPONENT LOCATION OVERVIEW - COMPONENTS IN FRONT VEHICLE INTERIOR - List Item:Rear Section Display Control Head.
- With Fresh Air Blower Switch -E9-
- With Fresh Air/Recirculation Door Switch -E159-
- Also with Immediate Heating Button -E537- in vehicles with auxiliary heater
- Depending on the vehicle equipment level, with Seat Heating/Ventilation Adjuster -E399-
- Removing and installing . Refer to DISPLAY CONTROL HEAD .
- Recirculation Door Motor -V113-
- Removing and installing . Refer to Recirculation Door Motor -V113-, REMOVING AND INSTALLING .
- Fresh Air Blower -V2-
- Removing and installing . Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
- Fresh Air Blower Series Resistor with Fuse -N24-
- Removing and installing . Refer to Fresh Air Blower Series Resistor with Fuse -N24-, REMOVING AND INSTALLING .
- Heater and A/C Unit
- Removing and installing . Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Disassembling and assembling. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Overview - Attachments. Refer to OVERVIEW - HEATING AND A/C UNIT ATTACHMENTS .
- Air Duct, Disassembling and Assembling. Refer to AIR DUCT CHANNEL, DISASSEMBLING AND ASSEMBLING .
- Front Passenger Side Footwell Vent
- Removing and installing . Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
- Dust and Pollen Filter
- Dust and Pollen Filter Information. Refer to DUST AND POLLEN FILTER INFORMATION .
- Observe the replacement interval. Refer to the Maintenance, Diagnosis .
- There are different versions. Refer to the Parts Information
- Removing and installing . Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- Footwell Trim Panel for the Front Passenger Side
- Removing and installing . Refer to Figure

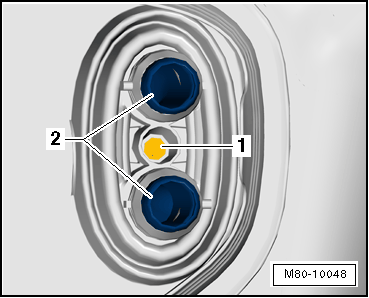

- Closure Caps
- Only for vehicles without air duct/vent installed in the rear center console
- Removing and installing . Refer to CLOSURE CAP ON THE HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Right Rear Vent Air Duct
- Removing and installing . Refer to FRONT AIR VENT AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
- Left Rear Vent Air Duct
- Removing and installing . Refer to FRONT AIR VENT AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
- Bolts
- 1.5 Nm
- Different lengths installed
- Quantity: 8
- Rear Section Display Control Head
- Removing and installing . Refer to DISPLAY CONTROL HEAD .
- Driver Side Footwell Vent
- Removing and installing . Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
- Auxiliary Heater Heating Element -Z35-
- Only installed on vehicles with a diesel engine without an auxiliary coolant heater.
- Removing and installing . Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Switch on criteria. Refer to Auxiliary Heater Heating Element -Z35-, SWITCH-ON CRITERIA FOR THE ACTIVATION .
- Switch-off criteria. Refer to Auxiliary Heater Heating Element -Z35-, ACTIVATION SWITCH-ON CRITERIA .
- Temperature Control Door Release Cable
- Removing and installing . Refer to TEMPERATURE CONTROL DOOR RELEASE CABLE, REMOVING AND INSTALLING .
- Flexible Shaft
- Controls the air distribution to the individual vents
- Removing and installing . Refer to FLEXIBLE AIR DISTRIBUTION SHAFT, REMOVING AND INSTALLING .
- Heater Core
- After replacing the heater core, replace all the coolant. Refer to [For engine(s) DDSB, DDSA] Cooling System or Refer to [For engine(s) CPPA, CPRA, CPKA, CPLA] Cooling System .
- Removing and installing . Refer to HEATER CORE, REMOVING AND INSTALLING .
- Side Vent
- The air distribution is activated using the intermediate piece for the vent -item 11- OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - List Item:Instrument Panel Vent Intermediate Piece .
- Removing and installing . Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Side Window Air Vent
- The air distribution is activated using the defrost intermediate piece -item 10- OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - List Item:Defroster Vent Intermediate Piece .
- Removing and installing . Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
