Overview - Air Routing And Air Distribution In Vehicle Interior

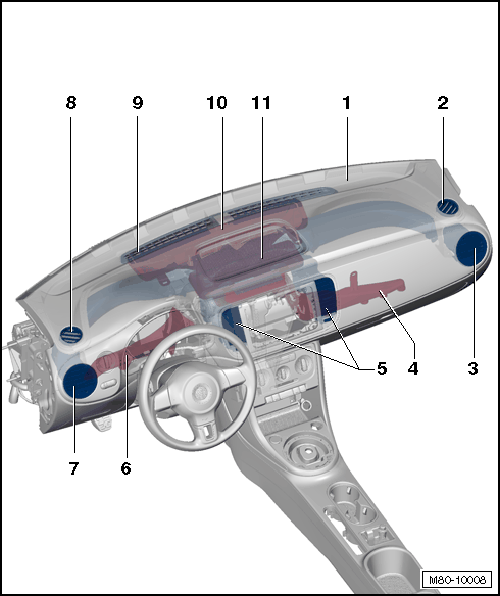

Fig 1: Identifying Air Ducts And Air Distribution In Passenger Compartment Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Panel
   • Removing and installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
2. Right Side Vent
   • Air distribution occurs through the defrost intermediate piece -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Defroster Vent Intermediate Piece.
   • Removing  and installing  . Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
3. Right Side Vent
   • The air distribution takes place via the intermediate piece for the vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Instrument Panel Vent Intermediate Piece.
   • The Right Vent Temperature Sensor -G151- is installed in the side vent for vehicles with electronically controlled A/C system.
   • Right Vent Temperature Sensor -G151-, Removing  and installing  . Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
   • Removing  and installing  . Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
4. Front Passenger Side Footwell Vent
   • Removing  and installing  . Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
5. Center Vent
   • Removing  and installing  . Refer to CENTER VENT, REMOVING AND INSTALLING .
6. Driver Side Footwell Vent
   • Removing  and installing  . Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
7. Left Side Vent
   • The air distribution takes place via the intermediate piece for the vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Instrument Panel Vent Intermediate Piece.
   • The Left Vent Temperature Sensor -G150- is installed in the side vent for vehicles with electronically controlled A/C system.
   • Left Vent Temperature Sensor -G150-, Removing  and installing  . Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
   • Removing  and installing  . Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
8. Left Side Vent
   • Air distribution occurs through the defrost intermediate piece -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Defroster Vent Intermediate Piece.
   • Removing  and installing  . Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
9. Defroster Vent
   • The defroster vent cannot be removed and installed because it is a component of the instrument panel.
10. Defroster Vent Intermediate Piece
    • Defroster Vent Intermediate Piece -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Defroster Vent.
    • Intermediate Piece for Left Side Vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Left Side Vent.
    • Intermediate Piece for Right Side Vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Right Side Vent.
    • Removing  and installing  . Refer to DEFROST VENT INTERMEDIATE PIECE, REMOVING AND INSTALLING .
11. Instrument Panel Vent Intermediate Piece
    • Center Vent Intermediate Piece -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Center Vent
    • Intermediate Piece for Left Side Vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Left Side Vent.
    • Intermediate Piece for Right Side Vent -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Right Side Vent.
    • Removing  and installing  . Refer to INSTRUMENT PANEL VENT INTERMEDIATE PIECE, REMOVING AND INSTALLING .

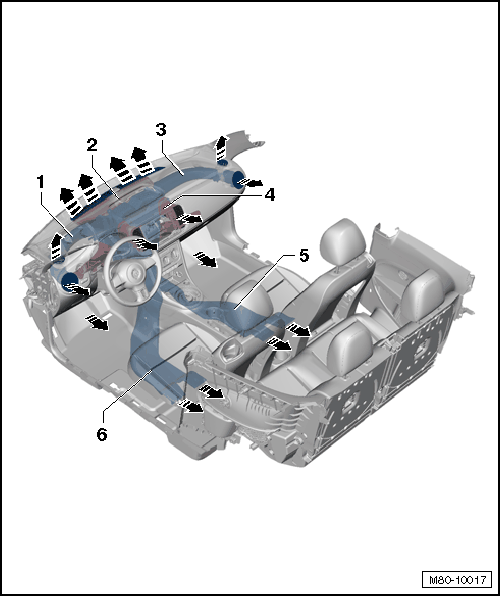

Fig 1: Identifying Air Guide Channels In Passenger Compartment Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Air Duct/Connecting Piece for Side Vent on Driver Side
   • For removal, the instrument panel must be removed
   • Air distribution takes place via the instrument panel vent air ducts -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Intermediate Piece for the Side Air Vent.
   • Removing  and installing  . Refer to AIR DUCTS, REMOVING AND INSTALLING .
2. Intermediate Piece for the Side Air Vent
   • For removal, the instrument panel must be removed
   • Removing  and installing  . Refer to AIR GUIDE FOR CENTER VENT, REMOVING AND INSTALLING .
3. Air Duct Channel/Connection Location for the Front Passenger Side Air Vent
   • For removal, the instrument panel must be removed
   • Air distribution takes place via the instrument panel vent air ducts -item  - OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR - list item: Intermediate Piece for the Side Air Vent.
   • Removing  and installing  . Refer to AIR DUCTS, REMOVING AND INSTALLING .
4. Center Vent Intermediate Piece
   • For removal, the instrument panel must be removed
   • Removing  and installing  . Refer to AIR GUIDE FOR CENTER VENT, REMOVING AND INSTALLING .
5. Right Rear Vent Air Duct
   • Removing  and installing  . Refer to FRONT AIR VENT AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
6. Left Rear Vent Air Duct
   • Removing  and installing  . Refer to FRONT AIR VENT AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
