Transmission And Bevel Box Seals Overview

WARNING: This page is about a different variant/trim than selected.

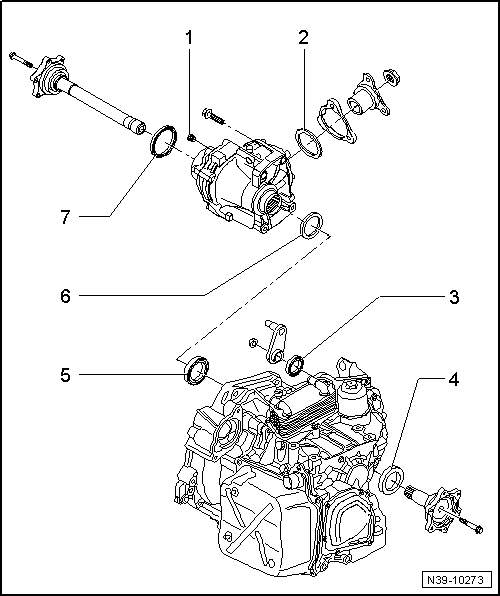

Fig 1: Identifying Assembly Overview: Sealing Rings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Plug
- All Wheel Drive (AWD) only
Bevel Box Output Flange Seal
- Removing and installing, refer to BEVEL BOX OUTPUT FLANGE AND SEAL .
Selector Shaft Seal
- Removing and installing, refer to SELECTOR SHAFT LEVER SEAL, TRANSMISSION REMOVED .
Flange Shaft Seal, Left
- Removing and installing, refer to LEFT FLANGE SHAFT AND SEAL .
Flange Shaft Seal, Right
- Removing and installing, refer to one of the following:
  Front Wheel Drive (FWD), refer to RIGHT STUB/FLANGE SHAFT AND SEAL, FWD .

  AWD, refer to SEAL, BETWEEN THE TRANSMISSION AND BEVEL BOX, TRANSMISSION SIDE .
Bevel Box Seal
- Removing and installing, refer to SEAL, BETWEEN THE TRANSMISSION AND BEVEL BOX, BEVEL BOX SIDE .
Flange Shaft Seal, Right
- AWD only.
- Removing and installing, refer to RIGHT FLANGE SHAFT SEAL .

Never loosen both mounting bolts in the left and right flange shafts at the same time. If the differential bevel gears rotate themselves, bolts are difficult to reinstall.
