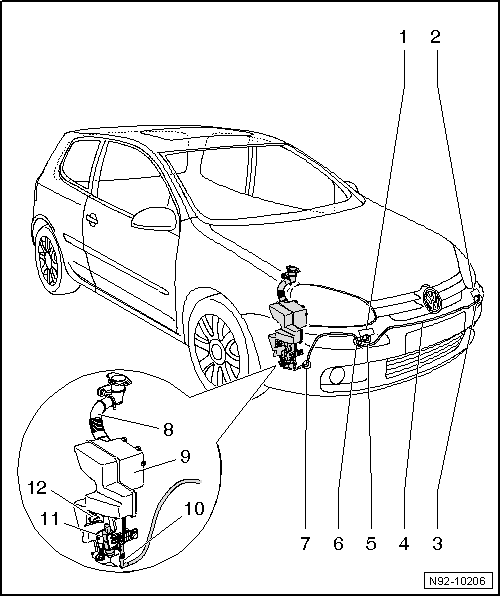

Headlamp Washer System Overview
WARNING: This page is about a different variant/trim than selected.
- Spray Nozzle Holder With Spray Nozzle, Right
- Spray nozzle holder, removing and installing, refer to SPRAY NOZZLE HOLDER .
- Spray nozzles, adjusting, refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- Spray nozzle lift cylinder, removing and installing, refer to SPRAY NOZZLE LIFT CYLINDER .
- Spray Nozzle Holder With Spray Nozzle, Left
- Spray nozzle holder, removing and installing, refer to SPRAY NOZZLE HOLDER .
- Spray nozzles, adjusting, refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- Spray nozzle lift cylinder, removing and installing, refer to SPRAY NOZZLE LIFT CYLINDER .
- Angle Coupling
- Connection to lift cylinder for left spray nozzle.
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Hose
- Angle Coupling
- Connection to lift cylinder for right spray nozzle.
- Divides washer fluid line to spray nozzles of headlamp cleaning system.
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- T-connection
- Divides washer fluid line to spray nozzles of headlamp cleaning system.
- Angle Coupling
- Filler Tube For Tank For Windshield Washer System and Headlamp Cleaning System
- Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR .
- Washer Fluid Reservoir
- Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER SYSTEM RESERVOIR .
- Angle Coupling
- Connection on Headlamp Washer Pump -V11-
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Headlamp Washer System Pump -V11-
- Removing and installing, refer to HEADLAMP WASHER PUMP -V11- .
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .
