Windshield And Headlamp Washer Fluid Reservoir
WARNING: This page is about a different variant/trim than selected.

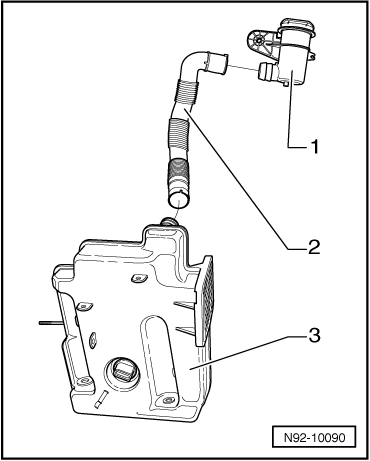

Tank for windshield washer system and headlamp cleaning system is in three parts and designed to be fitted together. In order to guarantee the correct position of the parts with respect to each other, make sure that guides present on the individual components engage in each other during assembly.
1 - Filler tube for tank for windshield washer system and headlamp cleaning system
2 - Filler tube connecting pipe to tank (is removed and installed together with tank)
3 - Washer fluid reservoir
Two different reservoirs for windshield washer and headlamp cleaning systems are installed, depending on equipment.
- Tank for windshield washer system and headlamp cleaning system, removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER SYSTEM RESERVOIR .
