Spray Nozzle Lift Cylinder

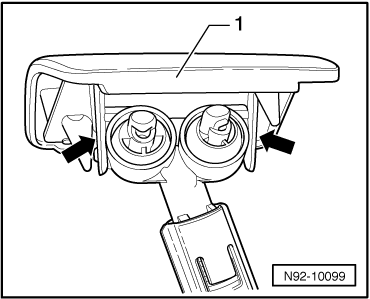

Fig 1: Identifying Cover Cap And Bearings On Spray Jet Holder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove spray nozzles with cover cap -1- up to stop out of bumper cover.

-- Unclip cover cap -1- from bearings -arrows- on spray nozzle holder.

-- Remove front bumper cover. Refer to Removal and Installation .

-- Pull off securing clip -4- from the hose connection.

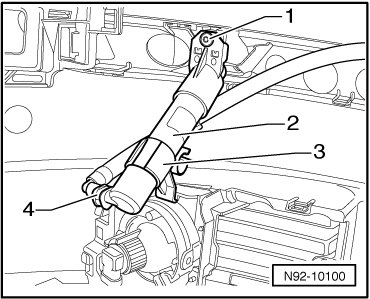

Fig 2: Identifying Cylinder And Washer Jets Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the hose connection from lift cylinder -2-.

-- Remove screw -1-.

-- Unclip lift cylinder -2- from bracket -3-.

Installing

Installation is performed in the reverse order of removal. Note the following:

-- The hose to lift cylinder must be clipped into hose bracket.

-- Tighten all threaded connections to specified torques. Refer to TIGHTENING SPECIFICATIONS .

-- Bleed headlamp washer system after completing assembly work. Refer to HEADLAMP WASHER SYSTEM, BLEEDING .
