Spray Nozzle Holder

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Cover Cap And Bearings On Spray Jet Holder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove spray jet with cover cap -1- up to stop out of bumper cover.

-- Unclip cover cap -1- from bearings -arrows- on spray nozzle holder.

-- Lift lug -arrow- slightly and pull out spray nozzle holder.

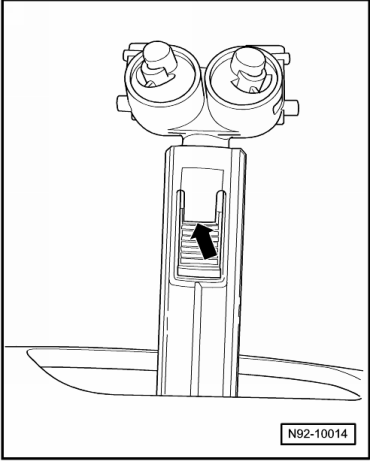

Fig 2: Identifying Lug Lifted To Pull Out Spray Jet Holder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

NOTE:

Use the spray nozzle bracket to adjust how far the cap on the nozzle is pulled into the bumper cover. The cap will not close if the spray nozzle bracket does not retract far enough. If the spray nozzle bracket moves with too much force, the cap and the bumper cover will get damaged.

-- Slide spray nozzle holder into lift cylinder until it engages.

-- Install cover cap onto the spray nozzle holder and let down lift cylinder.

-- Check cover cap for correct seating on bumper cover.

-- Adjust the cap if necessary by shifting the spray nozzle holder into a higher or lower catch on the lift cylinder.

-- Bleed headlamp washer system after completing assembly work. Refer to HEADLAMP WASHER SYSTEM, BLEEDING .

-- Check the spray nozzles for the headlamp cleaning system and adjust if necessary. Refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
