Windshield Washer Fluid Level Sensor -G33-

WARNING: This page is about a different variant/trim than selected.

NOTE:

Depending on equipment, the component location of the windshield washer fluid level sensor may deviate slightly from the illustrations. Removal is identical.

Removing

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove front bumper cover. Refer to Removal and Installation .

-- Disconnect harness connector -1- on windshield washer fluid level sensor.

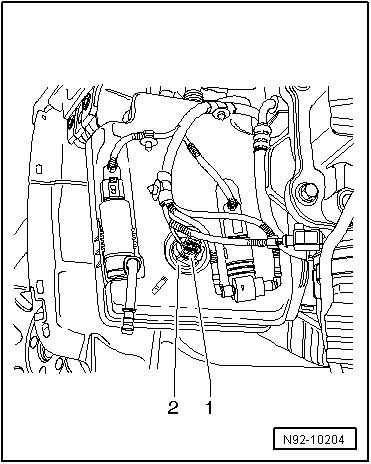

Fig 1: Identifying Windshield Washer Fluid Level Sensor G33 And Harness Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull windshield washer fluid level sensor -2- out of its rubber seal.

-- If necessary, collect the draining fluid in a suitable container.

Installing

Installation is performed in the reverse order of removal. Note the following:

-- Bleed headlamp washer system after completing assembly work. Refer to HEADLAMP WASHER SYSTEM, BLEEDING .
