Removal [07/2020 - ]: Procedure
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [07/2022 - ]
- REMOVE TURN SIGNAL SWITCH ASSEMBLY
Refer to REMOVAL [07/2020 - ]
- REMOVE FRONT DOOR SCUFF PLATE LH

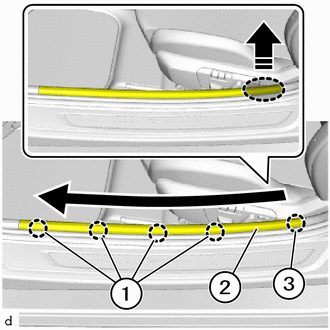

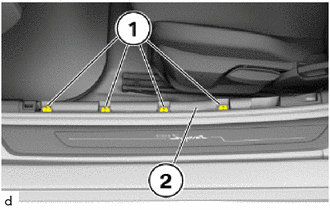

- Detach the guide (3) and clips (1) in the order as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Place Hands Here Order of Removal Remove in this Direction - Remove the front door scuff plate LH (2).
HINT:
If necessary, remove the clips (1) from the floor panel (2) and attach to the front door scuff plate LH.

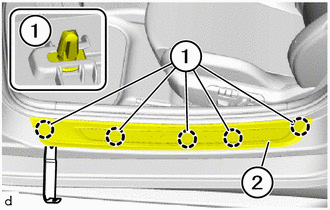

- Detach the guide (3) and clips (1) in the order as shown in the illustration.
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.

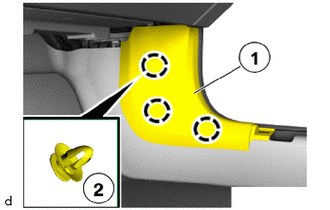

- REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
- REMOVE COWL SIDE TRIM BOARD RH

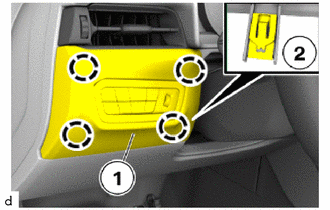

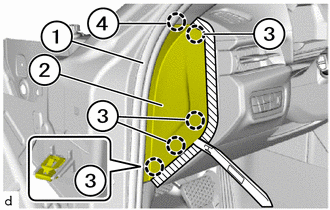

- REMOVE NO. 2 INSTRUMENT SIDE PANEL
- REMOVE NO. 1 INSTRUMENT SIDE PANEL
HINT:
Use the same procedure as for the No. 2 side.
- REMOVE COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
- REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

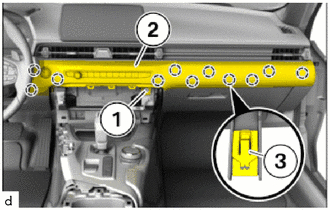

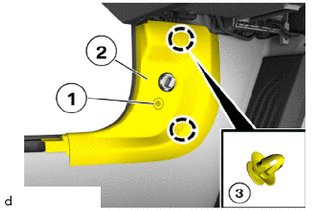

- Loosen T20 screw (1) on the No. 1 instrument panel garnish sub-assembly (2).

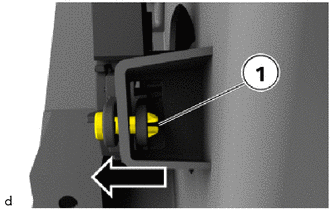

- Loosen T20 screw (1).

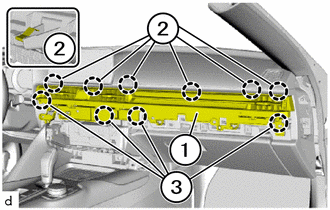

- Detach the clips (3) to remove the No. 1 instrument panel garnish sub-assembly (2).
- Pull the No. 1 instrument panel garnish sub-assembly (2) from the instrument panel safety pad assembly slightly forward.

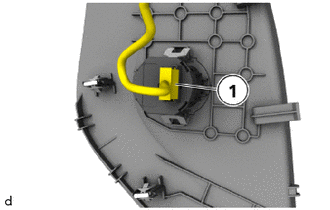

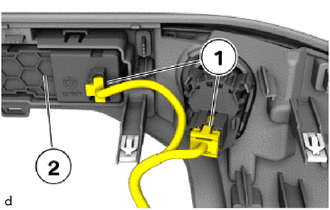

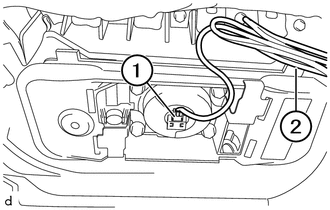

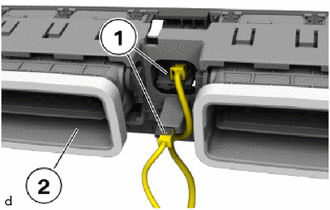

- Unlock and disconnect plug connections (1).
- Remove the No. 1 instrument panel garnish sub-assembly (2).

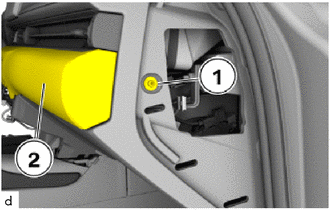

- Loosen T20 screw (1) on the No. 1 instrument panel garnish sub-assembly (2).
- REMOVE GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
HINT:
Perform this procedure only when replacement of the glove compartment door lock cylinder assembly is necessary.
- Apply protective tape to the glove compartment door assembly as shown in the illustration.

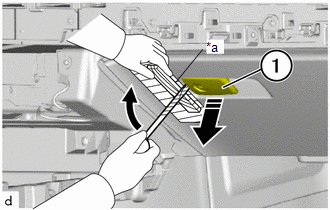

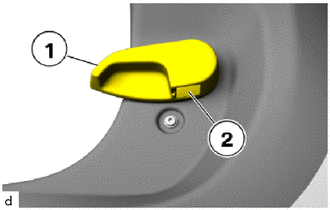

*a Wooden Block Protective Tape Apply Pressure in this Direction Remove in this Direction - Insert a screwdriver with its blade wrapped in protective tape into the gap between the opener (1) and the glove compartment door assembly.
- Using a wooden block as a fulcrum, apply pressure in the direction shown by the arrow in the illustration to break the opener (1) and remove it.NOTE:
Make sure the glove compartment door assembly is not damaged in the process.

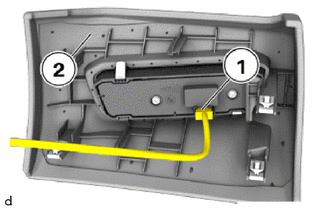

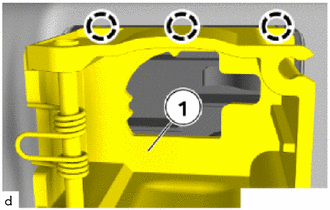

- Unclip the housing (1) with a flat screwdriver in the marked areas and remove.

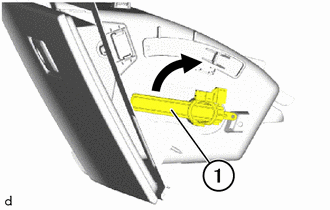

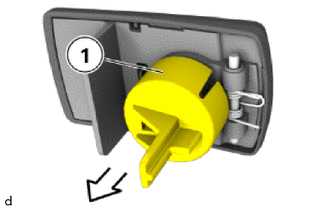

- Remove the operating lever (1) in the direction of the arrow.

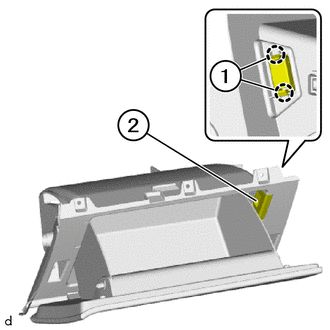

Remove in this Direction - Detach retaining lugs (1) and remove the glove compartment door lock cylinder assembly (2) in direction of arrow.
Remove in this Direction
- Apply protective tape to the glove compartment door assembly as shown in the illustration.

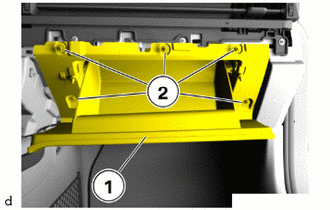

- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

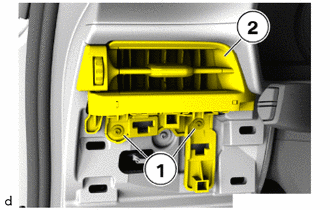

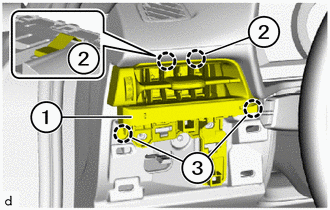

- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE FRONT PILLAR GARNISH LH WARNING:
- Airbag unit.
Danger! Life-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery earth lead from the battery.
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see:
Refer to PRECAUTION [03/2019 - ]

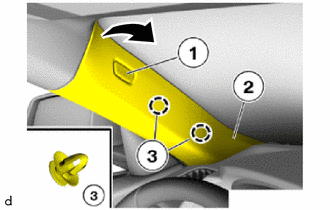

- Remove the front pillar garnish cover LH (1) and loosen T25 screw below it.
Pull up - Pull up the front pillar garnish LH (2) to detach the clips (3).

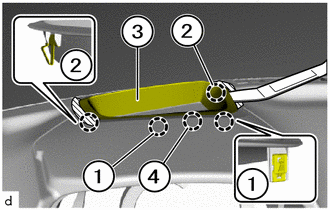

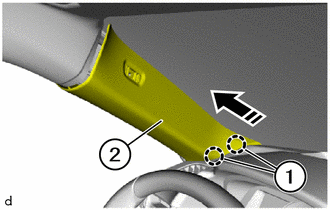

- Detach the guides (1) to remove the front pillar garnish LH (2) in the direction of the arrow.
Remove in this Direction - Protect the curtain shield airbag assembly.

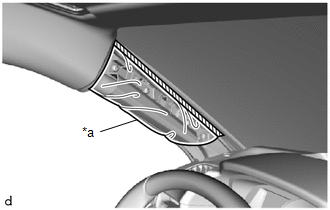

*a Protective Cover Adhesive Tape - Completely cover the curtain shield airbag assembly with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.NOTE:
Cover the curtain shield airbag assembly with a protective cover as soon as the front pillar garnish LH is removed.
- Completely cover the curtain shield airbag assembly with a cloth or nylon sheet and secure the ends of the cover with adhesive tape as shown in the illustration.
- Airbag unit.
- REMOVE FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.

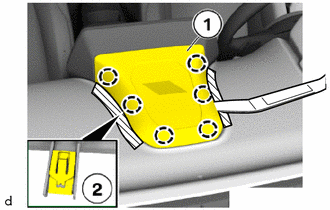

- REMOVE INSTRUMENT CLUSTER FINISH CENTER UPPER PANEL
- REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (w/ Front Center Speaker)
Refer to PROCEDURE - Step 2
- REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (w/ Front Center Speaker)
Refer to PROCEDURE - Step 3
- REMOVE MULTI-DISPLAY ASSEMBLY
Refer to PROCEDURE - Step 3

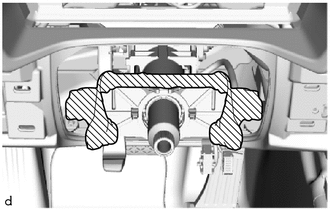

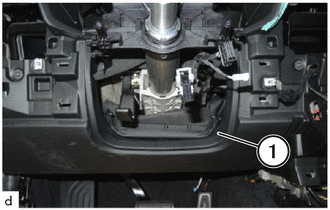

- REMOVE STEERING COLUMN COVER
- REMOVE INSTRUMENT CLUSTER FINISH END PANEL (w/ Headup Display)

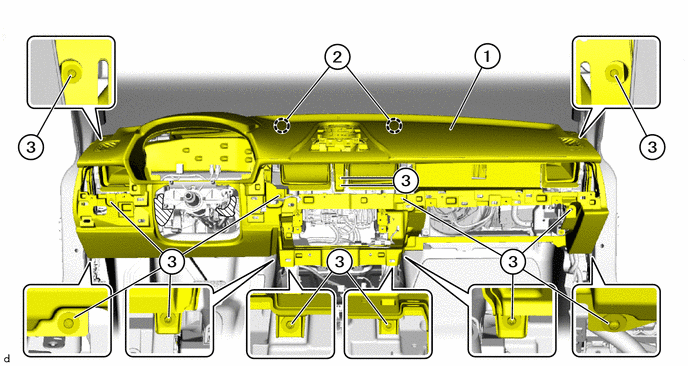

- REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
- Instrument panel passenger airbag assembly for Single Type:
- Instrument panel passenger airbag assembly for Dual Type:

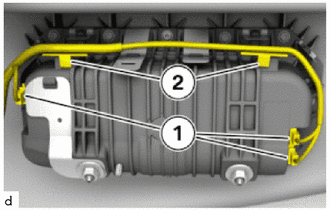

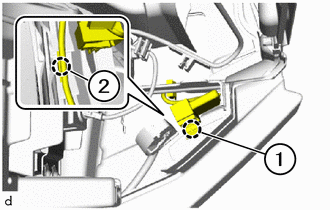

- Detach the clips (1) and clips (2) of wiring harness.
- Apply protective tape as shown in the illustration.
Protective Tape - Loosen T20 screws (3).
Protective Tape - - - Detach the guides (2) to remove the instrument panel safety pad assembly (1).
- REMOVE AIRBAG CUT OFF SWITCH CYLINDER SUB-ASSEMBLY (w/ Airbag Cut Off Switch)
HINT:
Perform this procedure only when replacement of the instrument side panel is necessary.
Refer to PROCEDURE - Step 3
- REMOVE NO. 1 LIGHT CONTROL SWITCH ASSEMBLY
HINT:
Perform this procedure only when replacement of the instrument panel finish panel sub-assembly is necessary.
See step 2

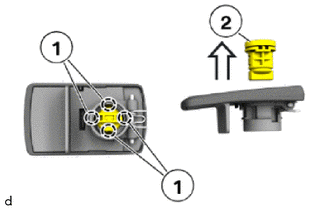

- REMOVE RADIO RECEIVER SWITCH KNOB
HINT:
Perform this procedure only when replacement of the No. 1 instrument panel garnish sub-assembly is necessary.
Refer to PROCEDURE - Step 8
- REMOVE PUSH START SWITCH
HINT:
Perform this procedure only when replacement of the No. 1 instrument panel garnish sub-assembly is necessary.
- for B58:
Refer to PROCEDURE - Step 7
- for B58:
- REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
HINT:
Perform this procedure only when replacement of the glove compartment door stopper sub-assembly is necessary.
- REMOVE HAZARD WARNING SIGNAL SWITCH ASSEMBLY
HINT:
Perform this procedure only when replacement of the No. 2 instrument panel register assembly is necessary.
Refer to PROCEDURE - Step 3

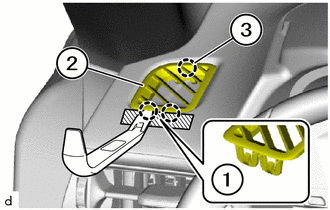

- REMOVE NO. 2 SIDE DEFROSTER NOZZLE
HINT:
Perform this procedure only when replacement of the No. 1 side defroster nozzle is necessary.
- REMOVE NO. 1 SIDE DEFROSTER NOZZLE
HINT:
Use the same procedure as for the No. 2 side.

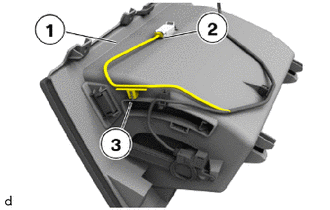

- REMOVE GLOVE BOX LIGHT (w/ Glove Box Light)
HINT:
Perform this procedure only when replacement of the glove compartment door assembly is necessary.
Refer to PROCEDURE - Step 1

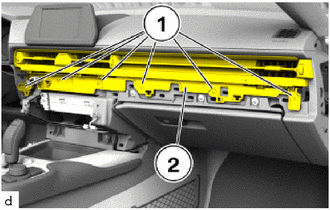

- REMOVE INSTRUMENT PANEL PATCH
HINT:
- Perform this procedure only when replacement of the instrument panel patch is necessary.
- Use the same procedures for the opposite side.
- REMOVE FRONT DOOR SCUFF PLATE OUTSIDE LH
HINT:
Perform this procedure only when replacement of the front door scuff plate outside LH is necessary.
- REMOVE FRONT DOOR SCUFF PLATE OUTSIDE RH
HINT:
Use the same procedure as for the LH side.
