Removal [03/2019 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH CENTER UPPER PANEL

    Refer to PROCEDURE - Step 18 [07/2020 - ]

  2. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY
    1. Loosen T20 screws (1).

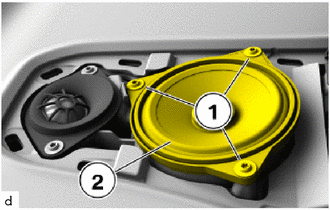

      GTY940540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 4 speaker assembly (2).
    3. Unlock plug connections (1) and disconnect.

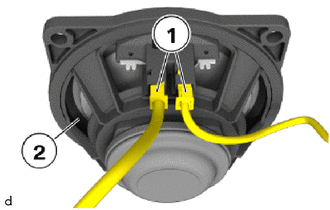

      GTY903349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front No. 4 speaker assembly (2).
  3. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
    1. Loosen T20 screws (1).

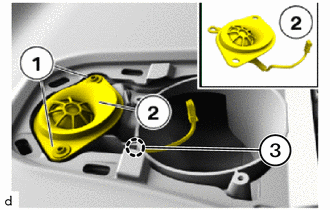

      GTY940542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide (3) to remove the front No. 3 speaker assembly (2).
