Removal [03/2019 - ]: Procedure

  1. REMOVE GLOVE BOX LIGHT

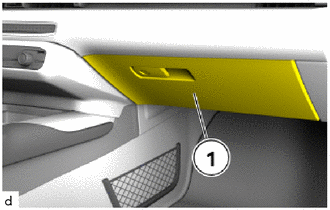

    1. Open glove compartment door assembly (1).
      GTY940514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

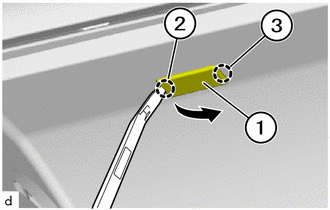

    2. Using a molding remover A, detach the claw (2) and guide (3) to remove the glove box light (1) in the direction of the arrow.
      GTY936853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Unlock plug connection (1) and disconnect.
      GTY903233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove glove box light (2).
