Removal [07/2020 - ]: Procedure

• for B46:

  Refer to REMOVAL [07/2020 - ]

• for B48:

  Refer to REMOVAL [07/2020 - ]

• for B58:

  Refer to REMOVAL [03/2019 - ]

WARNING:

• Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
• If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 8

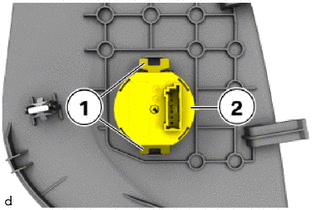

1. Detach the clamps (1) to remove the airbag cut off switch cylinder sub-assembly (2).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
