Removal [07/2020 - ]: Procedure

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- for B46:
  Refer to REMOVAL [07/2020 - ]
- for B48:
  Refer to REMOVAL [07/2020 - ]
- for B58:
  Refer to REMOVAL [03/2019 - ]
REMOVE FRONT CONSOLE ARMREST ASSEMBLY
Refer to PROCEDURE - Step 2 [07/2022 - ]
REMOVE CONSOLE SIDE PANEL
Refer to PROCEDURE - Step 4 [07/2022 - ]
REMOVE CONSOLE PANEL AND CONSOLE PANEL RETAINER
Refer to PROCEDURE - Step 5 [07/2022 - ]
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL
Refer to PROCEDURE - Step 6 [07/2022 - ]
REMOVE NO. 1 INSTRUMENT SIDE PANEL
Refer to PROCEDURE - Step 8
REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 11

REMOVE RADIO RECEIVER SWITCH KNOB

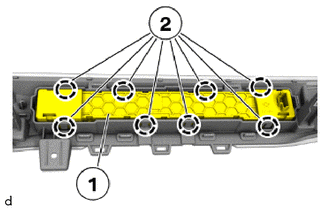

Detach the claws (2) to remove the radio receiver switch knob (1).
