Removal [03/2019 - ]: Procedure

  1. REMOVE FRONT CONSOLE ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2022 - ]

  2. REMOVE CONSOLE SIDE PANEL

    Refer to PROCEDURE - Step 4 [07/2022 - ]

  3. REMOVE CONSOLE PANEL AND CONSOLE PANEL RETAINER

    Refer to PROCEDURE - Step 5 [07/2022 - ]

  4. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL

    Refer to PROCEDURE - Step 6 [07/2022 - ]

  5. REMOVE NO. 2 INSTRUMENT SIDE PANEL

    Refer to PROCEDURE - Step 7 [07/2020 - ]

  6. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [07/2020 - ]

  7. REMOVE PUSH START SWITCH

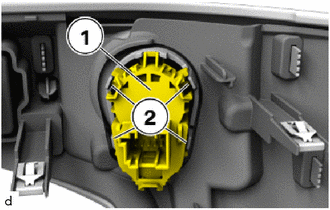

    1. Detach push start switch (1) at the latch mechanisms (2) and remove.
      GTY939502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
