Installation [12/2022 - ]: Procedure

  1. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY
    1. GTY1143794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the rear No. 2 suspension arm assembly to the rear suspension member sub-assembly with the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and nut.
        NOTE:
        • Insert the rear suspension toe adjust cam sub-assembly from the front of the vehicle.
        • When tightening the nut, keep the rear suspension toe adjust cam sub-assembly from rotating.
  2. INSTALL REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY
    Refer to PROCEDURE - Step 6
  3. CONNECT REAR TRACTION MOTOR CABLE
  4. INSTALL NO. 6 FLOOR WIRE
  5. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 11
  6. INSTALL FRAME WIRE
  7. TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
    1. GTY1065836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the rear upper control arm assembly LH to the rear axle carrier sub-assembly LH with the bolt and nut.
        NOTE:
        • Insert the bolt with the threaded end facing the rear of the vehicle.
        • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  8. TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
  9. INSTALL REAR DRIVE SHAFT ASSEMBLY LH
    Refer to PROCEDURE - Step 1
  10. INSTALL REAR DRIVE SHAFT ASSEMBLY RH
  11. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

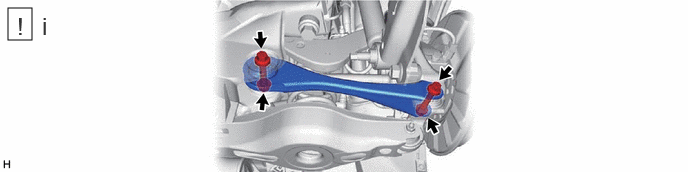

    1. GTY1144265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the rear No. 1 suspension arm assembly LH to the rear axle carrier sub-assembly and rear suspension member sub-assembly with the 2 bolts and 2 nuts.
        NOTE:
        • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
        • Insert the bolt with the threaded end facing the rear of the vehicle.
  12. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
  13. INSTALL REAR LOWER COIL SPRING INSULATOR LH
  14. INSTALL REAR LOWER COIL SPRING INSULATOR RH
  15. INSTALL REAR COIL SPRING LH
    See step  3 [12/2022 - 03/2023], or See step  3 [03/2023 - ]
  16. INSTALL REAR COIL SPRING RH
  17. INSTALL REAR STABILIZER BAR
    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]
  18. STABILIZE SUSPENSION
    See step  4 [12/2022 - 03/2023], or See step  4 [03/2023 - ]
  19. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

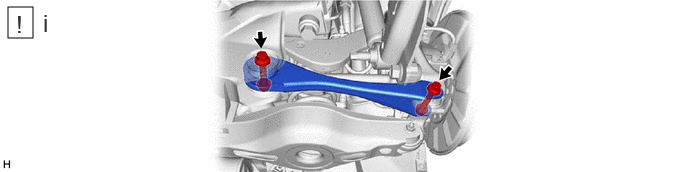

    1. GTY1145592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the rear No. 1 suspension arm assembly LH with the 2 bolts.

        Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

        NOTE:

        Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  20. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
  21. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

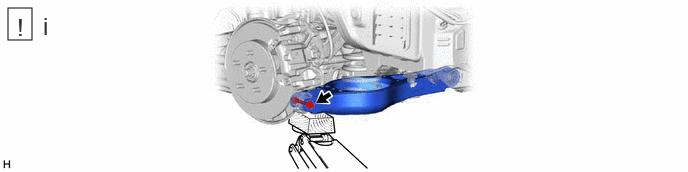

    1. GTY1153870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the rear No. 2 suspension arm assembly LH (rear axle carrier sub-assembly side) with the bolt.

        Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

        NOTE:

        Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  22. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
  23. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
    See step  5 [12/2022 - 03/2023], or See step  5 [03/2023 - ]
  24. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
  25. INSTALL REAR FLEXIBLE HOSE LH

    Refer to PROCEDURE - Step 15

  26. INSTALL REAR FLEXIBLE HOSE RH
  27. INSTALL REAR STABILIZER LINK ASSEMBLY LH
    Refer to PROCEDURE - Step 6 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 6 [03/2023 - ]
  28. INSTALL REAR STABILIZER LINK ASSEMBLY RH
  29. INSTALL REAR AXLE SHAFT NUT (for LH Side)
    Refer to PROCEDURE - Step 18
  30. INSTALL REAR AXLE SHAFT NUT (for RH Side)
  31. INSTALL REAR SKID CONTROL SENSOR LH
    Refer to PROCEDURE - Step 12
  32. INSTALL REAR SKID CONTROL SENSOR RH
  33. INSTALL TAIL EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]

  34. INSTALL REAR WHEEL

    Refer to INSTALLATION [12/2022 - ]

  35. INSTALL REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for LH Side)
    1. GTY1149690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Lower the vehicle to the ground.
      2. Bounce the vehicle up and down at the corners to stabilize the rear suspension.
      3. Align the matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.
      4. Fully tighten the nut.

        Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

        NOTE:
        • Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
        • Make sure that the vehicle is unloaded when fully tightening the nut.
  36. INSTALL REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for RH Side)
  37. INSTALL REAR FLOOR SIDE MEMBER COVER LH

    Refer to PROCEDURE - Step 7 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 7 [03/2023 - ]

  38. INSTALL REAR FLOOR SIDE MEMBER COVER RH

    Refer to PROCEDURE - Step 8 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 8 [03/2023 - ]

  39. CONNECT REAR TRACTION MOTOR CABLE
    Refer to PROCEDURE - Step 10
  40. INSTALL DECK FLOOR BOX LH
  41. INSTALL DECK FLOOR BOX RH
  42. INSTALL DECK BOARD ASSEMBLY
  43. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [12/2022 - ]

  44. INSPECT FOR EXHAUST GAS LEAK

    Refer to INITIALIZATION [12/2022 - 03/2023] , or refer to INITIALIZATION [03/2023 - ]

  45. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [12/2022 - 03/2023] , or refer to ADJUSTMENT [03/2023 - ]

  46. PERFORM INITIALIZATION
    Parking Assist Monitor System Refer to CALIBRATION [12/2022 - ]
    Panoramic View Monitor System Refer to CALIBRATION [12/2022 - ]
    Advanced Park Refer to CALIBRATION [12/2022 - ]
