Installation [12/2022 - ]: Procedure

  1. INSTALL DIFFERENTIAL MOUNT CUSHION

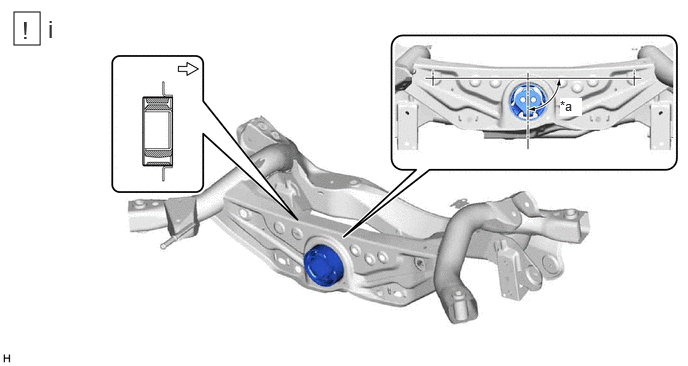

    1. GTY1142026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90° +/- 3° - -
      Front of Vehicle - -
      1. Temporarily install a new differential mount cushion to the rear suspension member sub-assembly from the rear of the vehicle as shown in the illustration.
        NOTE:
        • Make sure that the differential mount cushion is aligned within 90° +/- 3° from the center.
        • Be sure to install the differential mount cushion in the correct direction.

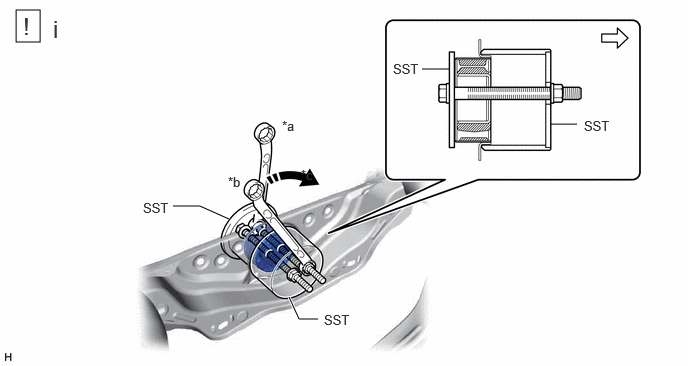

    2. GTY1146684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold *b Turn
      Turning Direction Front of Vehicle
      1. Using SST, press the differential mount cushion into the rear suspension member sub-assembly. (Step *1)
        • SST: 09570-48010
        NOTE:
        • Apply grease to the threads of the SST center bolt before use.
        • Install the SST bolts straight and tighten them equally.

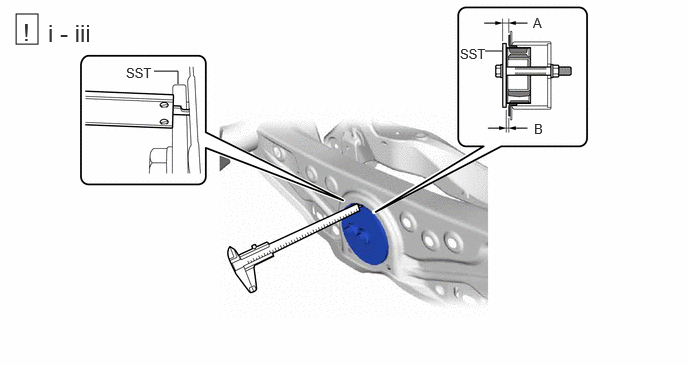

    3. GTY1157140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a vernier caliper, measure the length indicated by (A) in the illustration. (Step *2)
        NOTE:
        • Measure at several points to ensure that the differential mount cushion is pressed in evenly.
        • Do not measure on a weld bead.
      2. Repeat the steps *1 and *2 to press the differential mount cushion into the rear suspension member sub-assembly until the length indicated by (A) in the illustration is within the specification.

        Reference Length (A)

        10.5 to 11.5 mm (0.414 to 0.452 in.)

      3. Remove SST. Using a vernier caliper, measure the differential mount cushion protrusion length indicated by (B) in the illustration and ensure that the measured length is within the specification.

        Standard Length (B)

        4.5 to 5.5 mm (0.178 to 0.216 in.)

  2. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 1
  3. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
  4. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 1
  5. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
  6. INSTALL WIRE HARNESS CLAMP BRACKET

    Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  7. INSTALL MOTOR CABLE BRACKET

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  8. INSTALL REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY
    Refer to PROCEDURE - Step 6
  9. CONNECT REAR TRACTION MOTOR CABLE

    Refer to PROCEDURE - Step 7

  10. INSTALL NO. 6 FLOOR WIRE
  11. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

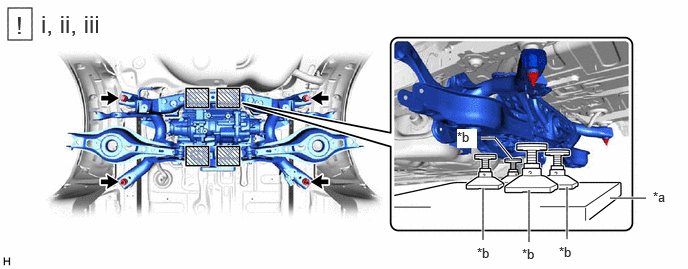

    1. GTY1154235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter *b Attachment
      Attachment Placement Location - -
      1. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
        WARNING:
        • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
        • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

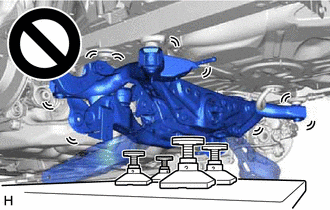

        GTY1116140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.
        • Keep supporting the rear suspension member sub-assembly until the installation has been completed.
      2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle.
      3. Install the rear suspension member sub-assembly with the 2 bolts and 2 nuts.

        Torque: 143 N*m (1458 kgf*cm, 105 ft.*lbf)

  12. INSTALL FRAME WIRE
  13. TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

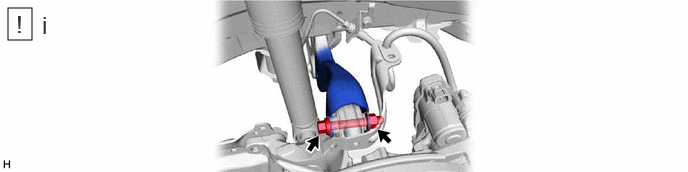

    1. GTY1143319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Temporarily install the rear upper control arm assembly LH to the rear axle carrier sub-assembly LH with the bolt and nut.
        NOTE:
        • Insert the bolt with the threaded end facing the rear of the vehicle.
        • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  14. TEMPORARILY INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
  15. INSTALL REAR DRIVE SHAFT ASSEMBLY LH
    Refer to PROCEDURE - Step 1
  16. INSTALL REAR DRIVE SHAFT ASSEMBLY RH
  17. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 11
  18. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
  19. INSTALL REAR LOWER COIL SPRING INSULATOR LH
  20. INSTALL REAR LOWER COIL SPRING INSULATOR RH
  21. INSTALL REAR COIL SPRING LH
    Refer to PROCEDURE - Step 3 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 3 [03/2023 - ]
  22. INSTALL REAR COIL SPRING RH
  23. INSTALL REAR STABILIZER BAR
    See step  4 [12/2022 - 03/2023], or See step  4 [03/2023 - ]
  24. STABILIZE SUSPENSION
    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]
  25. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 19
  26. INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
  27. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 21
  28. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
  29. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
    Refer to PROCEDURE - Step 5 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - ]
  30. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
  31. INSTALL REAR FLEXIBLE HOSE LH

    Refer to PROCEDURE - Step 15

  32. INSTALL REAR FLEXIBLE HOSE RH
  33. INSTALL REAR STABILIZER LINK ASSEMBLY LH
    See step  6 [12/2022 - 03/2023], or See step  6 [03/2023 - ]
  34. INSTALL REAR STABILIZER LINK ASSEMBLY RH
  35. INSTALL REAR AXLE SHAFT NUT (for LH Side)
    Refer to PROCEDURE - Step 18
  36. INSTALL REAR AXLE SHAFT NUT (for RH Side)
  37. INSTALL REAR SKID CONTROL SENSOR LH
    Refer to PROCEDURE - Step 12
  38. INSTALL REAR SKID CONTROL SENSOR RH
  39. INSTALL TAIL EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]

  40. INSTALL REAR WHEEL

    Refer to INSTALLATION [12/2022 - ]

  41. INSTALL REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for LH Side)
    Refer to PROCEDURE - Step 35
  42. INSTALL REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY (for RH Side)
  43. INSTALL REAR FLOOR SIDE MEMBER COVER LH

    See step  7 [12/2022 - 03/2023], or See step  7 [03/2023 - ]

  44. INSTALL REAR FLOOR SIDE MEMBER COVER RH

    See step  8 [12/2022 - 03/2023], or See step  8 [03/2023 - ]

  45. CONNECT REAR TRACTION MOTOR CABLE
    Refer to PROCEDURE - Step 10
  46. INSTALL DECK FLOOR BOX LH
  47. INSTALL DECK FLOOR BOX RH
  48. INSTALL DECK BOARD ASSEMBLY
  49. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [12/2022 - ]

  50. INSPECT FOR EXHAUST GAS LEAK

    Refer to INITIALIZATION [12/2022 - 03/2023] , or refer to INITIALIZATION [03/2023 - ]

  51. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Refer to ADJUSTMENT [12/2022 - 03/2023] , or refer to ADJUSTMENT [03/2023 - ]

  52. PERFORM INITIALIZATION
    Parking Assist Monitor System Refer to CALIBRATION [12/2022 - ]
    Panoramic View Monitor System Refer to CALIBRATION [12/2022 - ]
    Advanced Park Refer to CALIBRATION [12/2022 - ]
