Installation [12/2022 - ]: Procedure

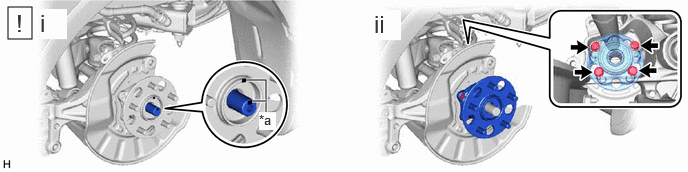

- INSTALL REAR AXLE HUB AND BEARING ASSEMBLY
*a Matchmark - - - Install the rear axle hub and bearing assembly and rear disc brake dust cover sub-assembly to the rear drive shaft assembly.NOTE:
Align the matchmarks on the rear drive shaft assembly and rear axle hub and bearing assembly.
- Install the rear axle hub and bearing assembly and rear disc brake dust cover sub-assembly to the rear axle carrier sub-assembly with the 4 bolts.
Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)
- Install the rear axle hub and bearing assembly and rear disc brake dust cover sub-assembly to the rear drive shaft assembly.
- INSTALL REAR DISC
Refer to PROCEDURE - Step 1 - INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

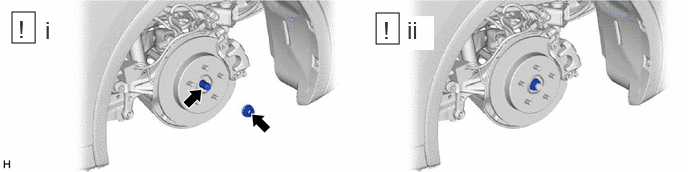

- TEMPORARILY INSTALL REAR AXLE SHAFT NUT
- Clean the threaded parts on the rear drive shaft assembly and a new rear axle shaft nut using non-residue solvent.NOTE:
- Be sure to perform this work even when using a new rear drive shaft assembly.
- Keep the threaded parts free of oil and foreign matter.
- Using a 30 mm deep socket wrench, temporarily install the rear axle shaft nut.
Torque: 216 N*m (2203 kgf*cm, 159 ft.*lbf)
NOTE:Stake the rear axle shaft nut after inspecting for looseness and runout in the following steps.
HINT:
Keep depressing the brake pedal to prevent the rear drive shaft assembly from rotating.
- Clean the threaded parts on the rear drive shaft assembly and a new rear axle shaft nut using non-residue solvent.
- SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
- REMOVE REAR DISC
Refer to PROCEDURE - Step 18 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 18 [03/2023 - ] - INSPECT REAR AXLE HUB BEARING LOOSENESS
- INSPECT REAR AXLE HUB RUNOUT
- INSTALL REAR DISC
Refer to PROCEDURE - Step 1 - INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

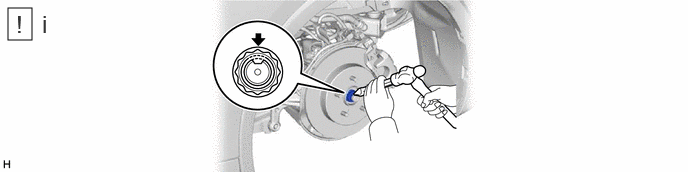

- STAKE REAR AXLE SHAFT NUT

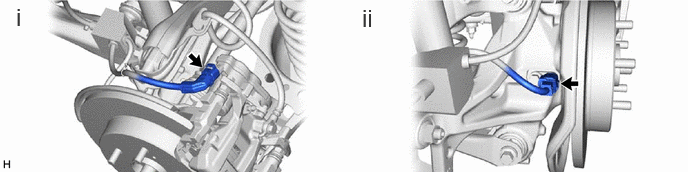

- INSTALL SKID CONTROL SENSOR NOTE:
- Keep the tip of the rear skid control sensor and installation hole free of foreign matter.
- Firmly insert the rear skid control sensor body into the rear axle carrier sub-assembly before tightening the bolt.
- After installing the rear skid control sensor to the rear axle carrier sub-assembly, make sure that there is no clearance between the rear skid control sensor stay and rear axle carrier sub-assembly. Also make sure that no foreign matter is stuck between the parts.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
- CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY NOTE:
- Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
- Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.
- INSTALL REAR WHEEL
Refer to INSTALLATION [12/2022 - ]
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 14 - INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Refer to AUTOMATIC LEARNING CHART [12/2022 - 03/2023] , or refer to AUTOMATIC LEARNING CHART [03/2023 - ]
- CHECK FOR SPEED SENSOR SIGNAL
Refer to SIGNAL CHECK [12/2022 - ]
