Installation [03/2023 - ]: Procedure

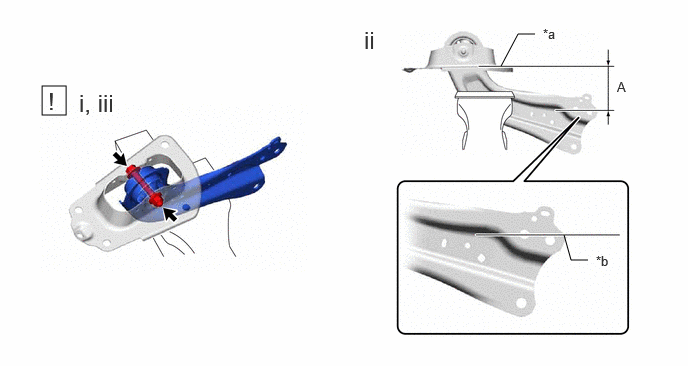

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Upper Surface of Rear Suspension Arm Bracket

   *b

   Edge of Rear Trailing Arm Assembly

   1. Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bolt and nut.
      NOTE:

      Insert the bolt from the inside of the vehicle.

   2. Position the rear trailing arm assembly as shown in the illustration.

      Reference Length (A)

      116 mm (4.57 in.)

   3. Fully tighten the nut.

      Torque: 124 N*m (1264 kgf*cm, 91 ft.*lbf)

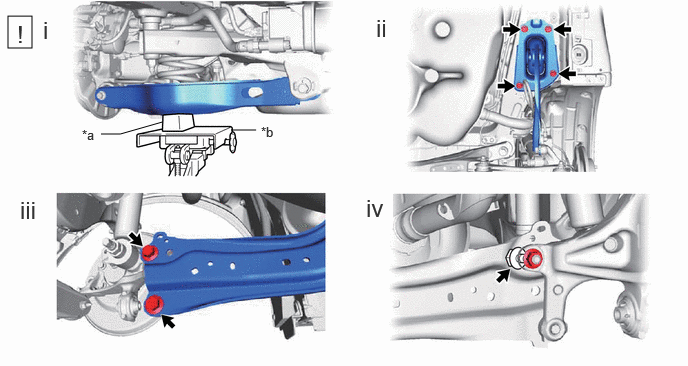

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Wooden Block

   *b

   Transmission Jack

   1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
   2. Install the rear trailing arm assembly to the vehicle with the 4 bolts.

      Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

   3. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.

      Torque: 150 N*m (1530 kgf*cm, 111 ft.*lbf)

   4. w/o Stabilizer Bar:

      1. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

      Torque: 79 N*m (806 kgf*cm, 58 ft.*lbf)

      NOTE:

      Insert the bolt with the threaded end facing the outside of the vehicle.

Torque: 15.5 N*m (158 kgf*cm, 11 ft.*lbf)

Refer to INSTALLATION [03/2023 - ]

Refer to INSTALLATION [12/2022 - ]

Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

Refer to PROCEDURE - Step 8

Refer to ADJUSTMENT [03/2023 - ]
