Removal [02/2024 - ]: Procedure

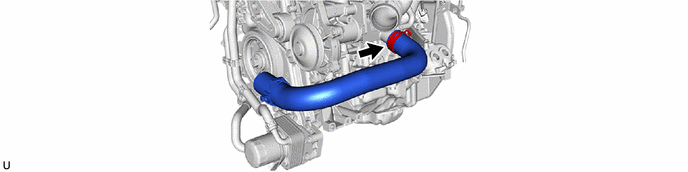

  1. REMOVE NO. 2 RADIATOR HOSE SUB-ASSEMBLY
    1. GTY1221237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

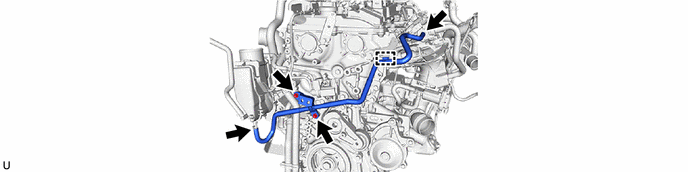

  2. REMOVE FUEL VAPOR FEED HOSE ASSEMBLY
    1. GTY1221238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE VACUUM REGULATING VALVE ASSEMBLY

    Refer to PROCEDURE - Step 1

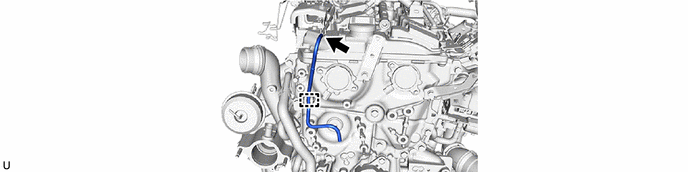

  4. REMOVE NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. GTY1221245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

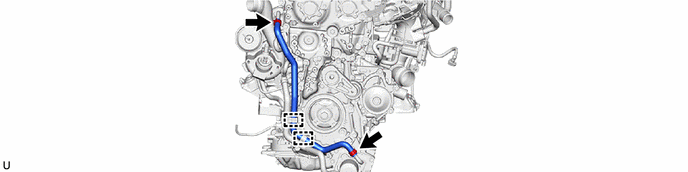

  5. REMOVE WATER BY-PASS HOSE
    1. GTY1221243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

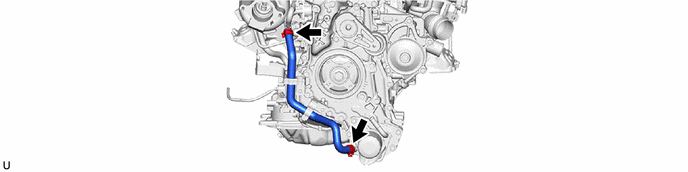

  6. REMOVE NO. 6 WATER BY-PASS HOSE
    1. GTY1221244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

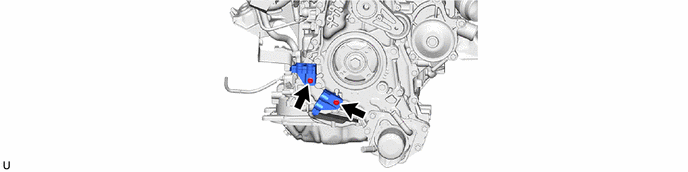

  7. REMOVE NO. 1 WATER BY-PASS PIPE CLAMP
    1. GTY1221228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

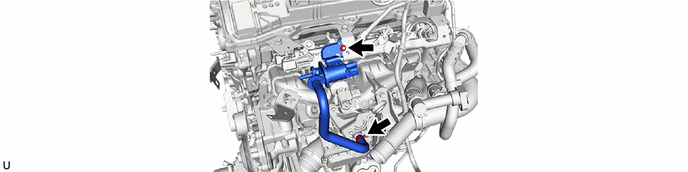

  8. REMOVE VACUUM SWITCHING VALVE
    1. GTY1221226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE WATER HOSE SUB-ASSEMBLY B

    Refer to PROCEDURE - Step 7

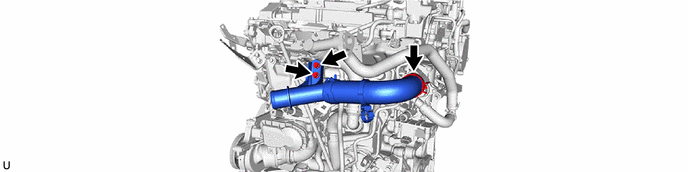

  10. REMOVE NO. 1 RADIATOR PIPE ASSEMBLY
    1. GTY1221223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

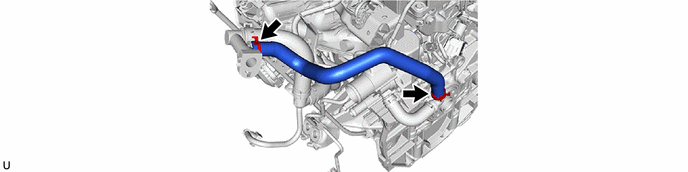

  11. REMOVE NO. 7 WATER BY-PASS HOSE
    1. GTY1226227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

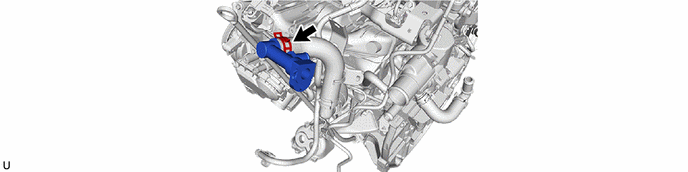

  12. REMOVE HEATER RETURN HOSE CONNECTOR
    1. GTY1226226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

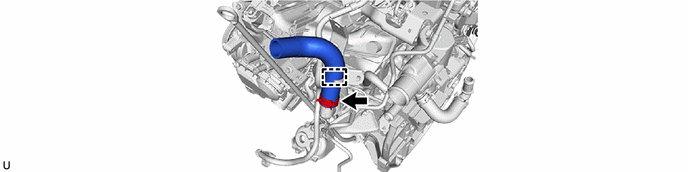

  13. REMOVE NO. 9 WATER BY-PASS HOSE
    1. GTY1221221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

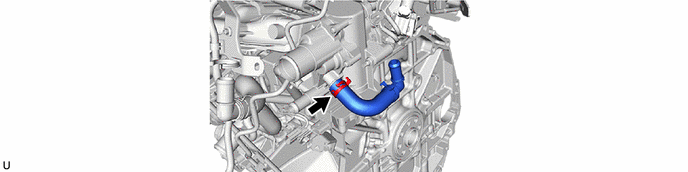

  14. REMOVE NO. 8 WATER BY-PASS HOSE
    1. GTY1221230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

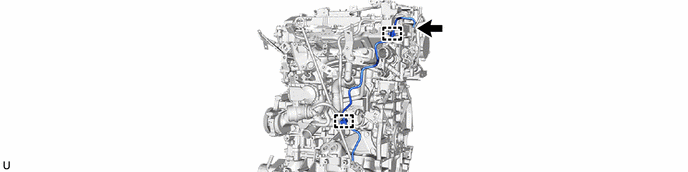

  15. REMOVE VENTILATION HOSE ASSEMBLY
    1. GTY1221231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

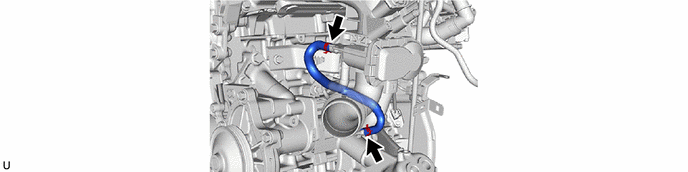

  16. REMOVE NO. 5 WATER BY-PASS HOSE
    1. GTY1221229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

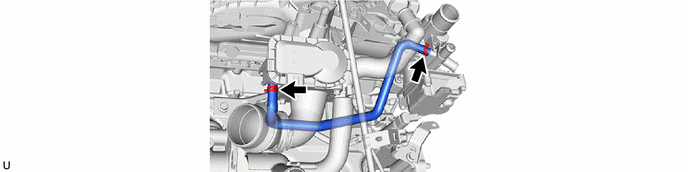

  17. REMOVE NO. 4 WATER BY-PASS HOSE
    1. GTY1221210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

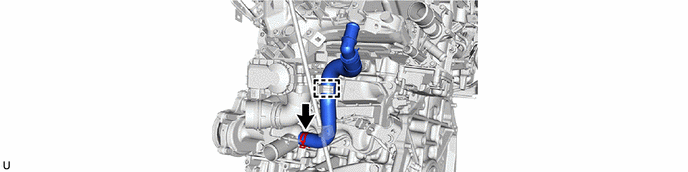

  18. REMOVE NO. 2 WATER BY-PASS HOSE
    1. GTY1226224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

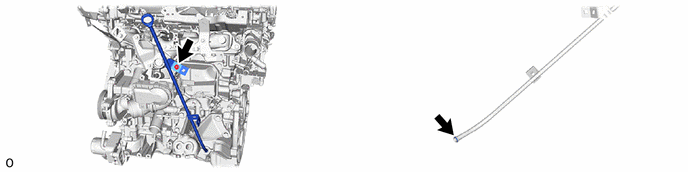

  19. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. GTY1221209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

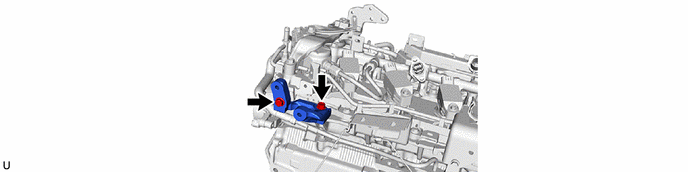

  20. REMOVE FUEL PUMP PROTECTOR BRACKET
    1. GTY1221208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

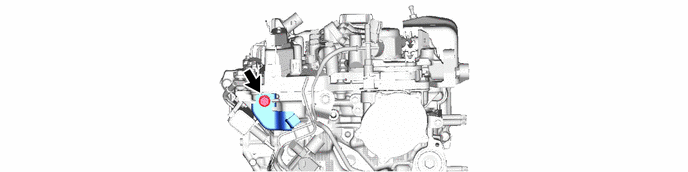

  21. REMOVE MOTOR CABLE BRACKET
    1. GTY1225021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

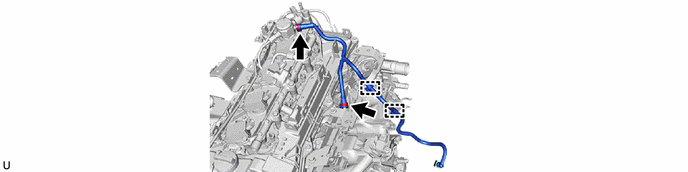

  22. REMOVE FUEL TUBE SUB-ASSEMBLY
    1. GTY1221213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

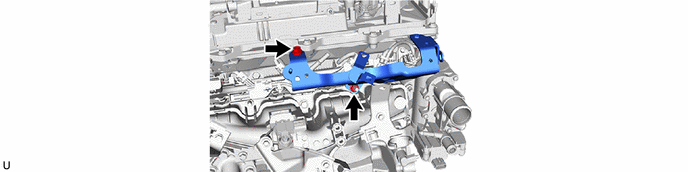

  23. REMOVE FUEL DELIVERY GUARD
    1. GTY1221214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 16

  25. REMOVE WATER CONTROL VALVE

    Refer to PROCEDURE - Step 6

  26. REMOVE FRONT WATER BY-PASS JOINT
    1. GTY1132059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE WATER OUTLET GASKET
    1. GTY1078351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

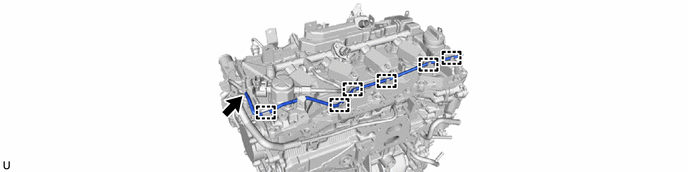

  28. REMOVE VACUUM TRANSMITTING HOSE ASSEMBLY
    1. GTY1226999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 10
  30. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    Refer to PROCEDURE - Step 11
  31. REMOVE FUEL PUMP SPACER

    Refer to PROCEDURE - Step 12

  32. REMOVE FUEL PUMP SPACER GASKET

    Refer to PROCEDURE - Step 13

  33. REMOVE FUEL PUMP LIFTER ASSEMBLY

    Refer to PROCEDURE - Step 14

  34. REMOVE FUEL DELIVERY PIPE
    Refer to PROCEDURE - Step 13
  35. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 14

  36. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 15

  37. REMOVE NO. 5 ENGINE WIRE

    Refer to PROCEDURE - Step 16

  38. REMOVE PORT FUEL INJECTOR ASSEMBLY
    Refer to PROCEDURE - Step 17
  39. REMOVE IGNITION COIL ASSEMBLY
    Refer to PROCEDURE - Step 1

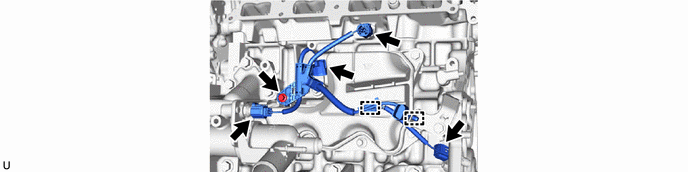

  40. REMOVE SENSOR WIRE
    1. GTY1226997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

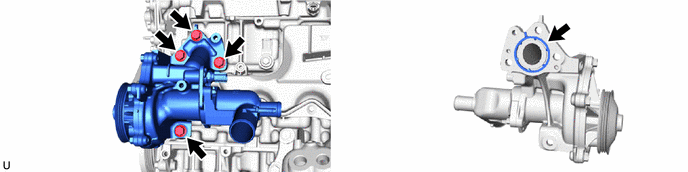

  41. REMOVE WATER INLET HOUSING
    1. GTY1224870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

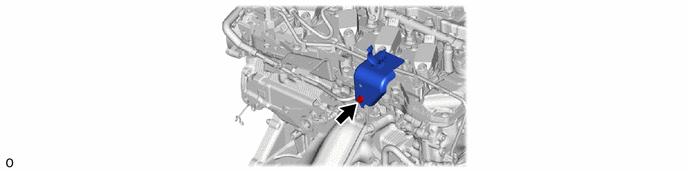

  42. REMOVE VENTILATION HOSE BRACKET
    1. GTY1227034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

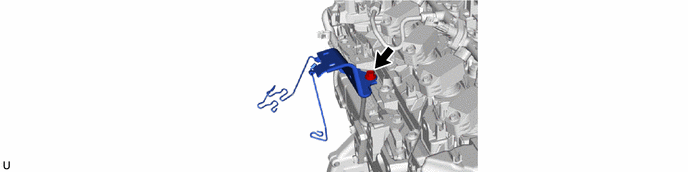

  43. REMOVE EXHAUST SENSOR CLAMP BRACKET
    1. GTY1224872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

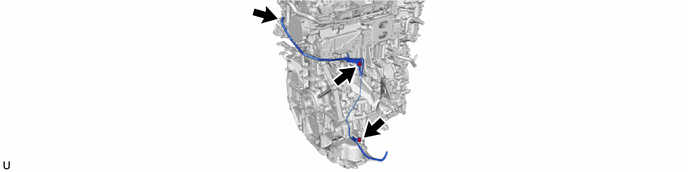

  44. REMOVE VACUUM TRANSMITTING PIPE SUB-ASSEMBLY
    1. GTY1224873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

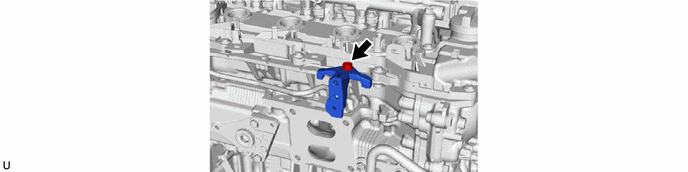

  45. REMOVE NO. 1 HEAT INSULATOR BRACKET
    1. GTY1224874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

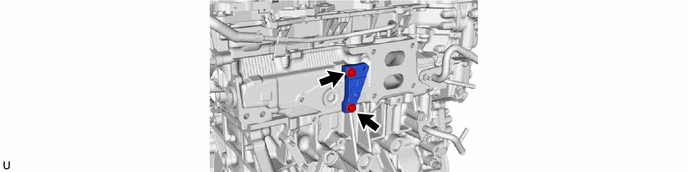

  46. REMOVE NO. 2 HEAT INSULATOR BRACKET
    1. GTY1224876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

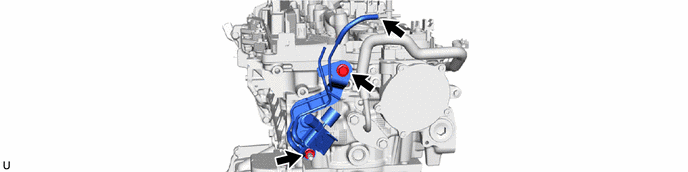

  47. REMOVE VACUUM SWITCHING VALVE SUB-ASSEMBLY
    1. GTY1224861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

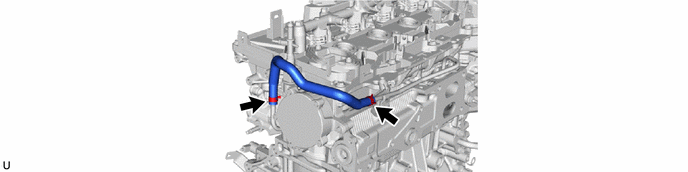

  48. REMOVE NO. 3 WATER BY-PASS HOSE
    1. GTY1224862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

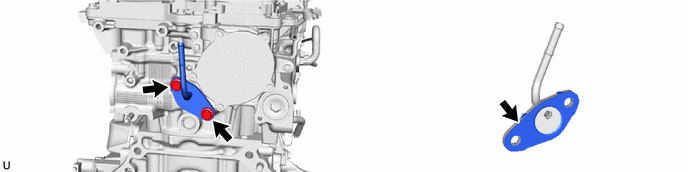

  49. REMOVE NO. 6 WATER BY-PASS PIPE
    1. GTY1226996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

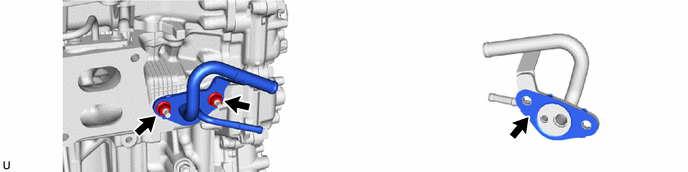

  50. REMOVE NO. 2 WATER BY-PASS PIPE
    1. GTY1224864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

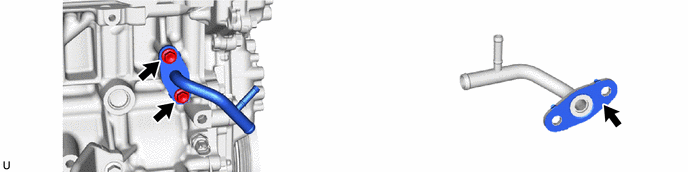

  51. REMOVE NO. 4 WATER BY-PASS PIPE
    1. GTY1224854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

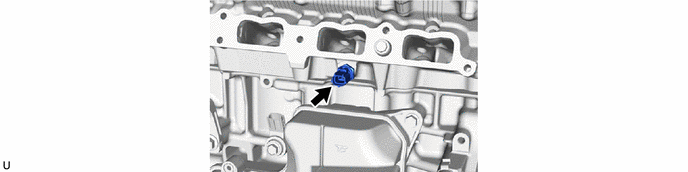

  52. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. GTY1226994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

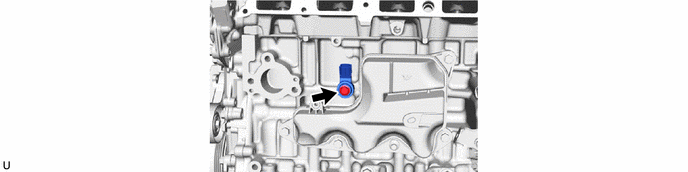

  53. REMOVE KNOCK CONTROL SENSOR
    1. GTY1224856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 2

  55. REMOVE CRANKSHAFT POSITION SENSOR
    Refer to PROCEDURE - Step 3

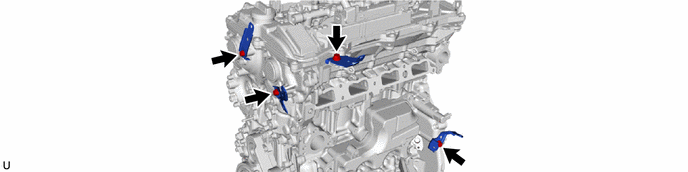

  56. REMOVE WIRE HARNESS CLAMP BRACKET
    1. GTY1224857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
