Removal [02/2024 - ]: Procedure

  1. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  2. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [02/2024 - ]

  3. DISCONNECT WATER HOSE SUB-ASSEMBLY

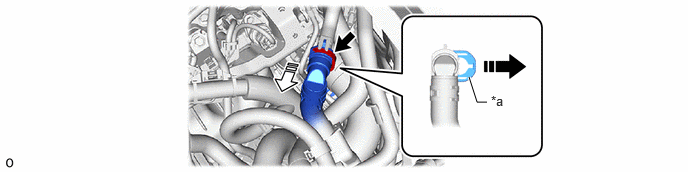

    1. GTY1225590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer - -
      Pull Pull off
  4. DISCONNECT NO. 7 WATER BY-PASS HOSE

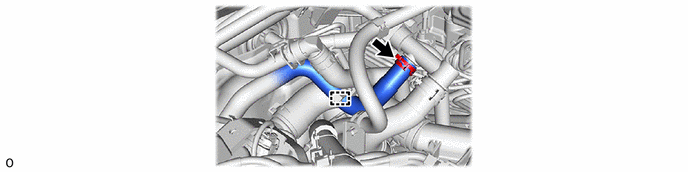

    1. GTY1221415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 4 WATER BY-PASS HOSE

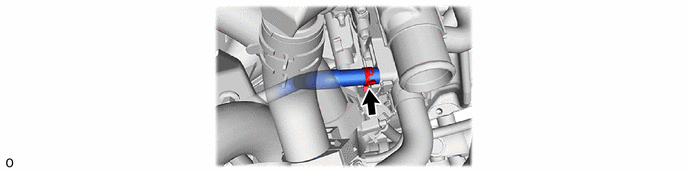

    1. GTY1226265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE WATER CONTROL VALVE

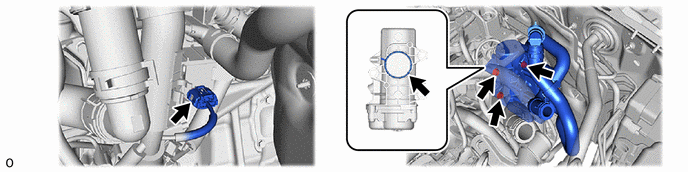

    1. GTY1221400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE WATER HOSE SUB-ASSEMBLY

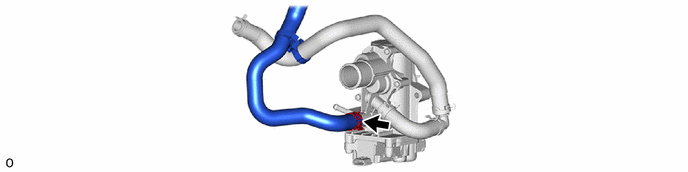

    1. GTY1221399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 8 WATER BY-PASS HOSE
    1. GTY1221397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
