Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to PRECAUTION [02/2024 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 3

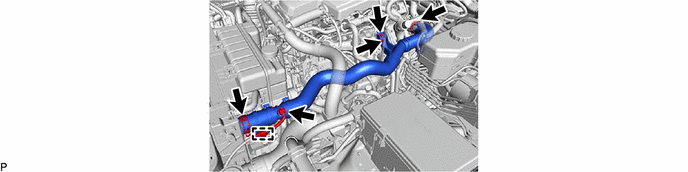

  4. REMOVE RADIATOR HOSE SUB-ASSEMBLY
    1. GTY1225776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

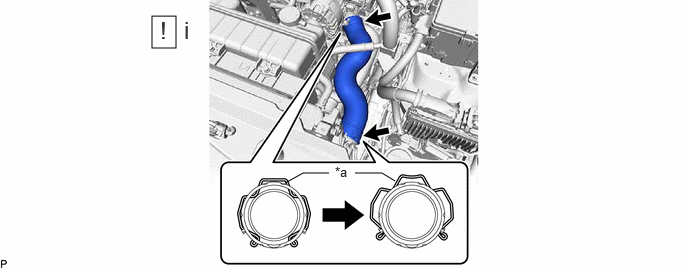

  5. REMOVE NO. 2 AIR HOSE
    1. GTY1223031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer - -
      1. Release the 2 retainers and disconnect the No. 2 air hose from the intercooler assembly and No. 2 air tube as shown in the illustration.

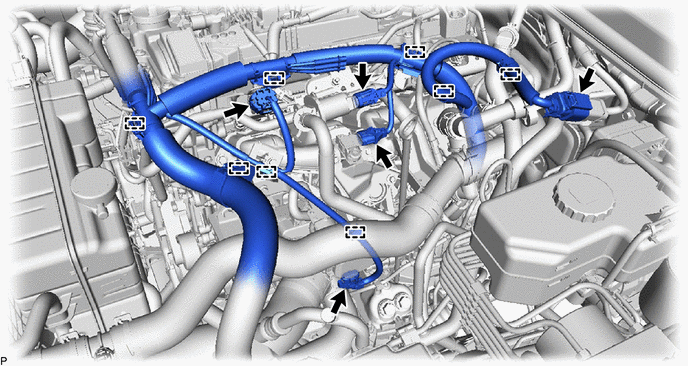

  6. DISCONNECT ENGINE WIRE
    1. GTY1225392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE PURGE VSV (DUTY VACUUM SWITCHING VALVE)

    Refer to PROCEDURE - Step 1

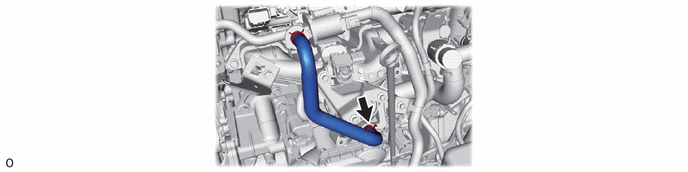

  8. REMOVE NO. 1 FUEL VAPOR FEED HOSE
    1. GTY1222095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

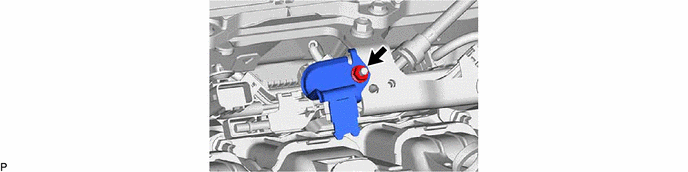

  9. REMOVE VACUUM SWITCHING VALVE BRACKET
    1. GTY1184991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

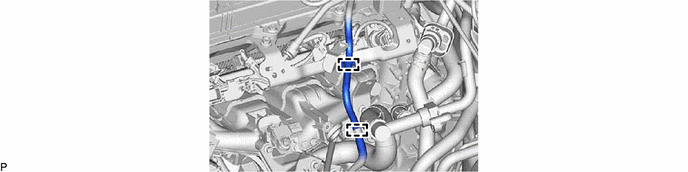

  10. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. GTY1184993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

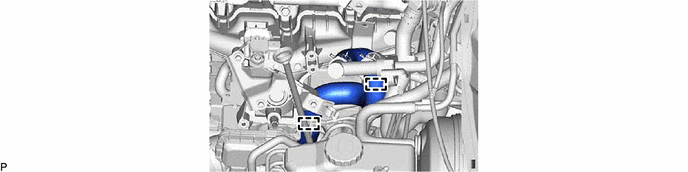

  11. DISCONNECT WATER BY-PASS HOSE ASSEMBLY WITH NO. 2 WATER BY-PASS HOSE
    1. GTY1184992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

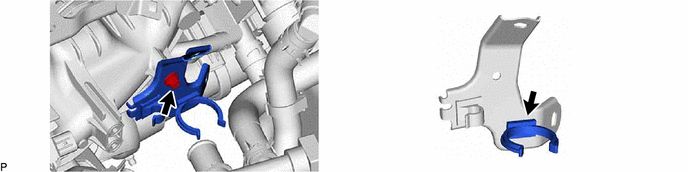

  12. REMOVE NO. 1 WATER HOSE CLAMP BRACKET
    1. GTY1183157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

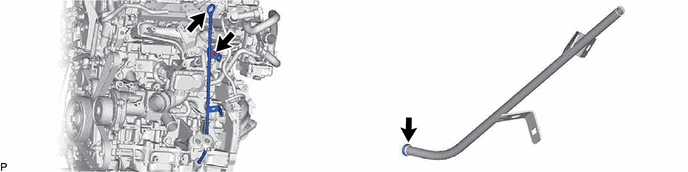

  13. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. GTY1222064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

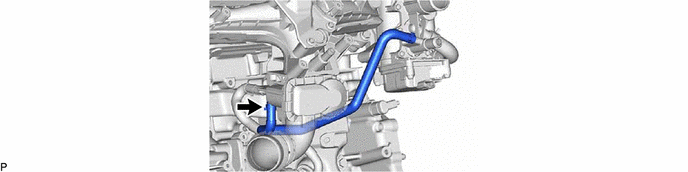

  14. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1222062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

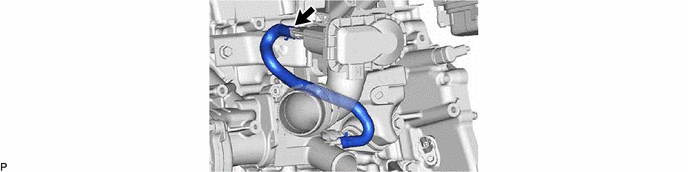

  15. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1226402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

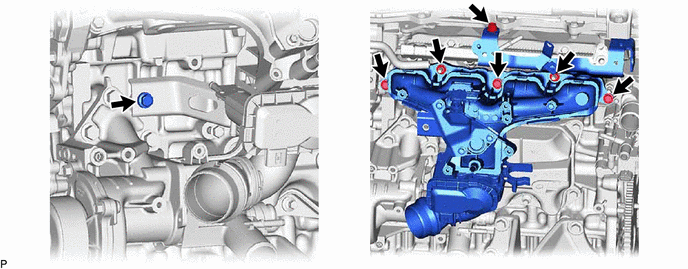

  16. REMOVE INTAKE MANIFOLD
    1. GTY1184988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

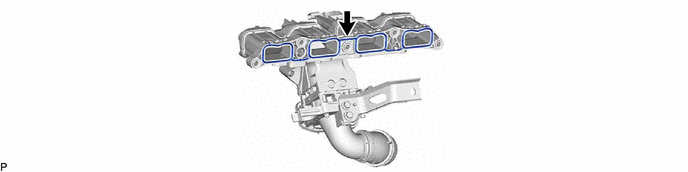

  17. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. GTY1184990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

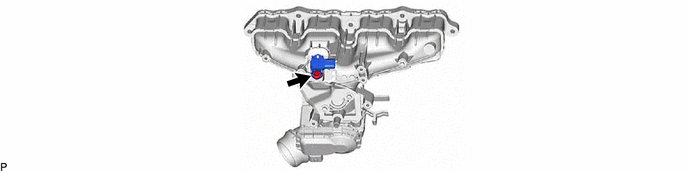

  18. REMOVE NO. 1 TURBO PRESSURE SENSOR
    NOTE:

    If the No. 1 turbo pressure sensor has been struck or dropped, replace it.
    1. GTY1184989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

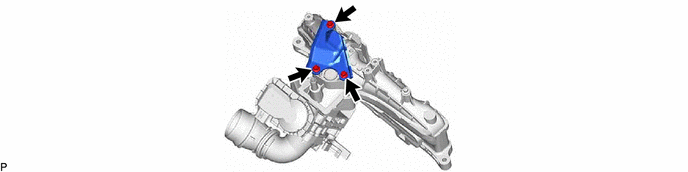

  19. REMOVE INTAKE MANIFOLD STAY
    1. GTY1184985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

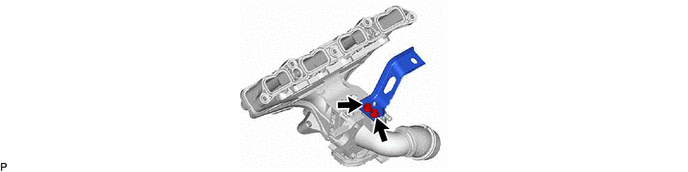

  20. REMOVE AIR TUBE SUPPORT
    1. GTY1184984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

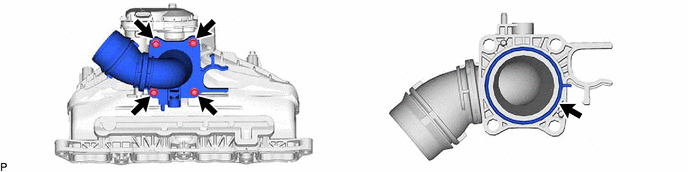

  21. REMOVE NO. 2 AIR TUBE
    1. GTY1184986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

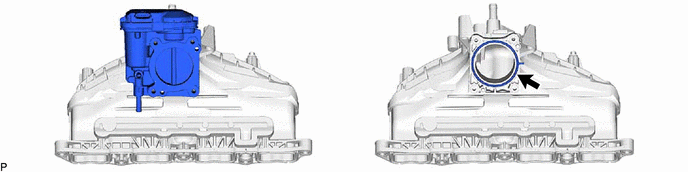

  22. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.
    1. GTY1183156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
