Removal [02/2024 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [02/2024 - ]

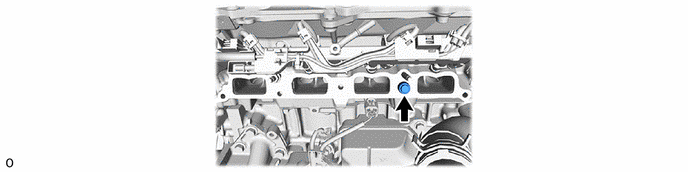

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. GTY1220493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
