Removal [02/2024 - ]: Procedure

  1. REMOVE IGNITION COIL ASSEMBLY
    NOTE:

    If the ignition coil assembly has been struck or dropped, replace it.

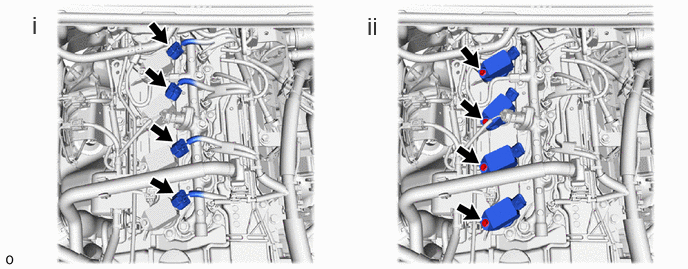

    1. GTY1183305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Remove the bolt and ignition coil assembly.
  2. REMOVE SPARK PLUG
    NOTE:

    If the spark plug has been struck or dropped, replace it.

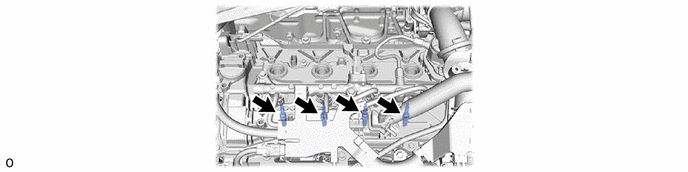

    1. GTY1155450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
