Removal [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [02/2024 - ]

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [02/2024 - ]

  4. DISCONNECT MOTOR CABLE

    See step  4

  5. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE PCV PRESSURE SENSOR CHAMBER

    See step  6

  7. REMOVE FUEL HOSE PROTECTOR

    See step  7

  8. REMOVE FUEL PUMP PROTECTOR

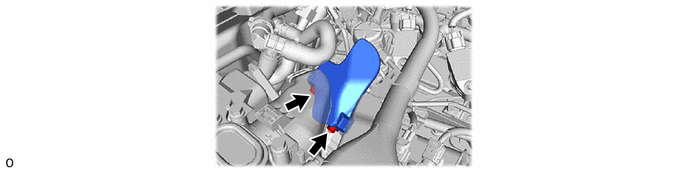

    1. GTY1220327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT FUEL TUBE SUB-ASSEMBLY

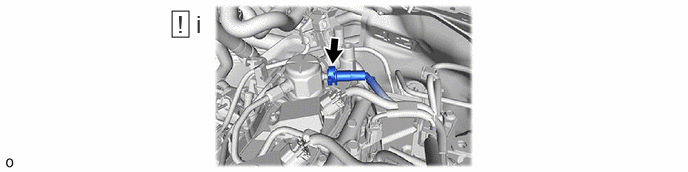

    1. GTY1226094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tube sub-assembly from the fuel (engine room side) pump assembly.

        Refer to PRECAUTION [02/2024 - ]

  10. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    WARNING:

    To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

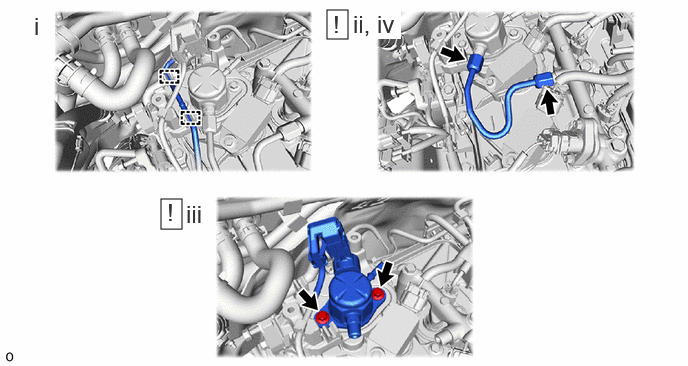

    1. GTY1221281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clamps and disconnect the vacuum transmitting hose assembly.
      2. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
      3. Loosen the 2 bolts of the fuel (engine room side) pump assembly.
      4. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe sub-assembly and fuel (engine room side) pump assembly.
  11. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    NOTE:

    When replacing the fuel (engine room side) pump assembly, it is necessary to replace the No. 1 fuel pipe sub-assembly with a new one.

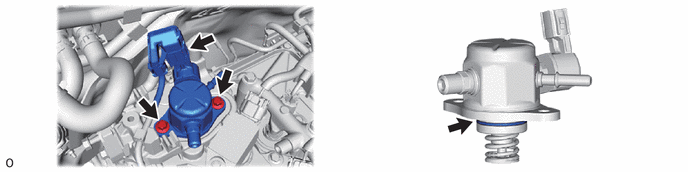

    1. GTY1220317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FUEL PUMP SPACER

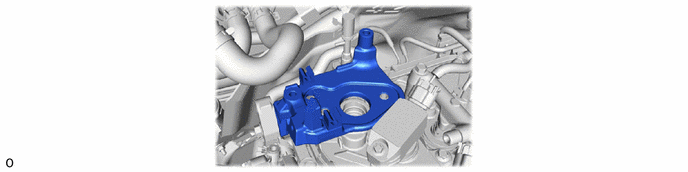

    1. GTY1220316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FUEL PUMP SPACER GASKET

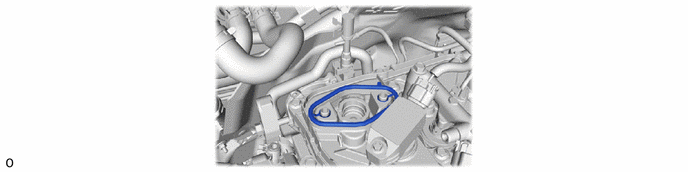

    1. GTY1226037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FUEL PUMP LIFTER ASSEMBLY

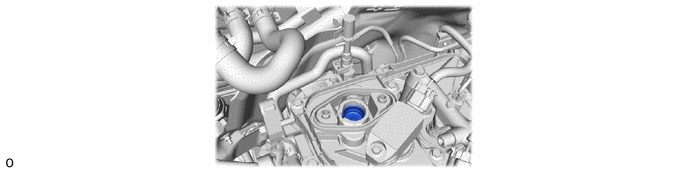

    1. GTY1220315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
