Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2018 - ]

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  3. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [11/2022 - ]

  4. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE SPARE WHEEL CUSHION

    Refer to PROCEDURE - Step 5

  6. DISCONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  7. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  8. REMOVE FRONT WHEELS

    Refer to REMOVAL [09/2022 - ]

  9. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    1. Remove the 4 bolts, 9 clips and No. 1 engine under cover assembly from the vehicle.
      GTY1103186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

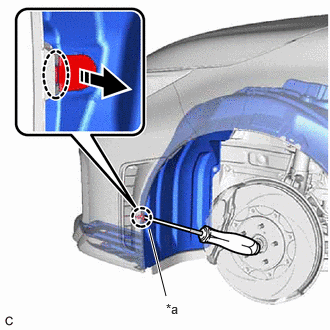

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.
      GTY1251510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
      Remove in this Direction

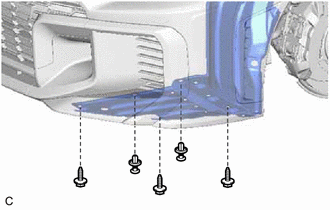

    2. Remove the 2 clips and 3 screws.
      GTY1251340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 grommets and 6 screws.

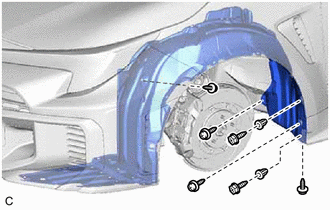

      GTY1251339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 9 clips and front fender splash shield sub-assembly LH.

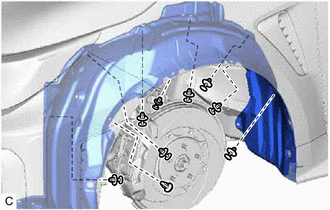

      GTY1251341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE PIN HOLD CLIP

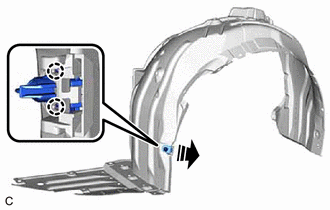

    1. Disengage the 2 claws to remove the pin hold clip as shown in the illustration.
      GTY1108331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  12. REMOVE FRONT FENDER LINER RETAINER

    Refer to PROCEDURE - Step 32

  13. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  14. REMOVE PIN HOLD CLIP

    Refer to PROCEDURE - Step 31

  15. REMOVE FRONT FENDER LINER RETAINER

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [09/2024 - ]

  17. REMOVE SUB RADIATOR ASSEMBLY WITH SUB RADIATOR DUCT (w/ Sub Radiator)

    Refer to REMOVAL [09/2024 - ]

  18. DRAIN WASHER FLUID

    Refer to PROCEDURE - Step 6

  19. REMOVE INLET HOSE

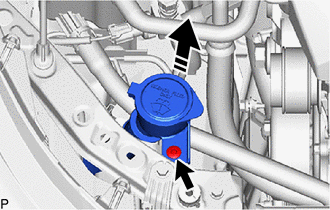

    1. Remove the clip.
      GTY1120558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the inlet hose as shown in the illustration.
  20. REMOVE WINDSHIELD WASHER JAR ASSEMBLY

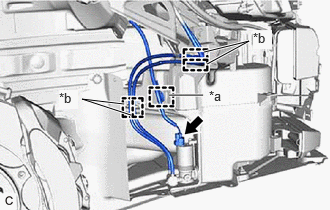

    1. Disconnect the connector.
      GTY1250993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide

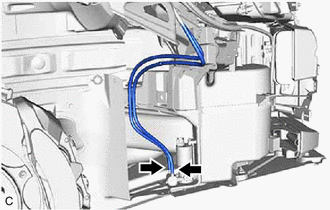

    2. Disengage the clamp and 3 guides.
    3. Disconnect the washer hose.
      GTY1251345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector.

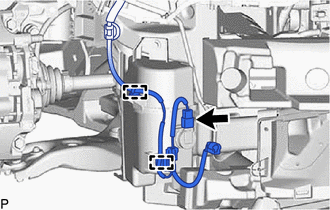

      GTY1119741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 clamps.
    6. Remove the screw.

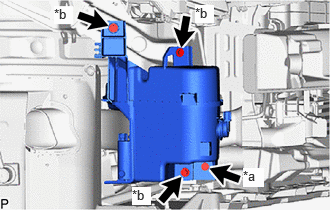

      GTY1121932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw
      *b Bolt
    7. Remove the 3 bolts and windshield washer jar assembly.
  21. REMOVE NO. 2 ENGINE UNDER COVER AIR GUIDE
    1. Remove the 2 screws and No. 2 engine under cover air guide.

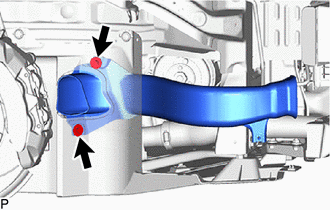

      GTY1119736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE NO. 3 ENGINE UNDER COVER AIR GUIDE
    1. Remove the bolt.

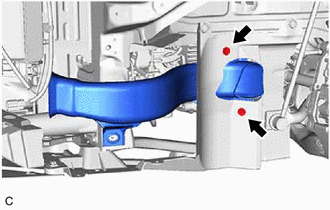

      GTY1107643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and No. 3 engine under cover air guide.

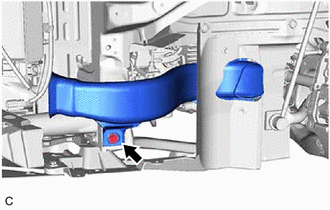

      GTY1107642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR ENGINE UNDER COVER LH

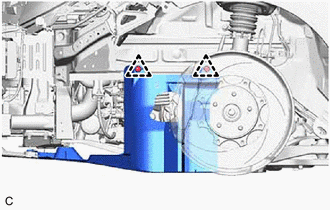

    1. Remove the 2 clips.
      GTY1109287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw.
      GTY1103188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clips and rear engine under cover LH from the vehicle.

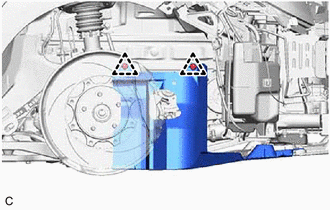

  24. REMOVE REAR ENGINE UNDER COVER RH
    1. Remove the 2 clips.
      GTY1107662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the screw.
      GTY1108359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clips and rear engine under cover RH from the vehicle.
  25. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    1. GTY1106919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 4 clamp and remove the No. 1 engine cover sub-assembly.

      NOTE:

      Attempting to disengage both front and rear clips at the same time may cause the No. 1 engine cover sub-assembly to break.

  26. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  27. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  28. DRAIN MANUAL TRANSAXLE OIL (for Manual Transaxle)

    Refer to PROCEDURE - Step 7

  29. DRAIN AUTOMATIC TRANSAXLE FLUID (for Automatic Transaxle)

    Refer to PROCEDURE - Step 8

  30. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 6

  31. REMOVE AIR CLEANER WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 7

  32. REMOVE AIR CLEANER BRACKET
    1. Remove the 2 bolts and air cleaner bracket from the vehicle.
      GTY1106917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE NO. 1 RELAY BLOCK COVER
    1. Disengage the 3 claws and remove the No. 1 relay block cover from the engine room relay block.
      GTY1106916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE COVER RELAY BLOCK UPR
    1. GTY1106938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the cover relay block upr.

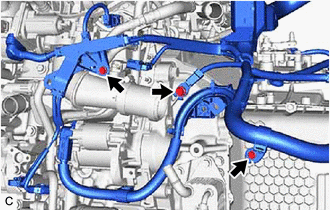

  35. DISCONNECT ENGINE WIRE
    1. Remove the nut.
      GTY1106937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut.
      GTY1106936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 3 connectors from the engine room relay block.
    4. Remove the 2 bolts to separate the engine wire from the vehicle.
      GTY1109135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 clamps.
      GTY1106935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

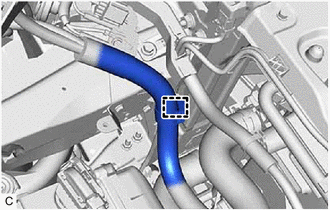

    6. Disengage the clamp.
      GTY1252445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. DISCONNECT NO. 1 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 1 radiator hose from the water outlet.
      GTY1106934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. DISCONNECT NO. 2 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 2 radiator hose from the water inlet with thermostat sub-assembly.
      GTY1106933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE NO. 2 AIR TUBE
    NOTE:

    If the No. 2 air tube is removed, make sure to replace the No. 4 air hose and No. 5 air hose.

    1. Loosen the 2 hose clamps.

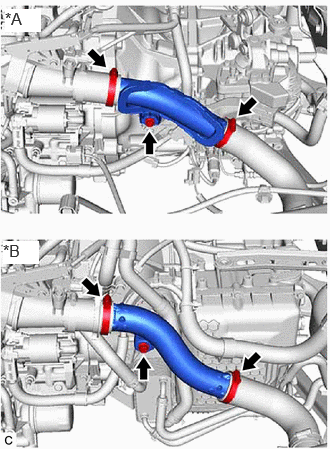

      GTY1252225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Manual Transaxle
      *B for Automatic Transaxle
    2. Remove the bolt and No. 2 air tube.
  39. REMOVE NO. 4 AIR HOSE
    1. Loosen the hose clamp and remove the No. 4 air hose.
      GTY1251235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. REMOVE NO. 5 AIR HOSE
    1. Loosen the hose clamp and remove the No. 5 air hose from the air tube assembly.
      GTY1019807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE ECM

    Refer to PROCEDURE - Step 7

  42. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

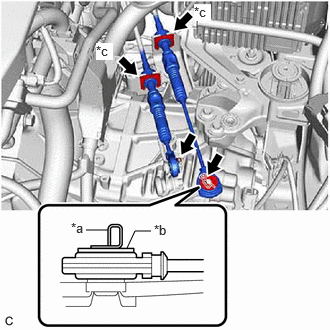

    1. for Manual Transaxle:
      GTY1252193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b Washer
      *c Clip (B)
      1. Remove the 2 clips (A) and washer to disconnect the transmission control cable assembly from the manual transaxle assembly.
      2. Remove the 2 clips (B) to disconnect the transmission control cable assembly from control cable bracket assembly.
    2. for Automatic Transaxle:

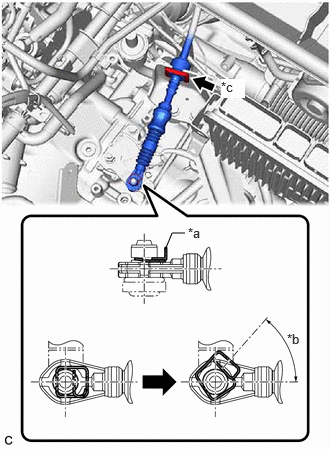

      GTY1251322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A)
      *b 45° to 60°
      *c Clip (B)
      1. While disengaging the clip (A) as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip (A).
      2. Remove the clip (B) and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.
  43. DISCONNECT CHECK VALVE TO CONNECTOR TUBE HOSE

    Refer to PROCEDURE - Step 9

  44. DISCONNECT NO. 1 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 1 water by-pass hose from the No. 4 water by-pass pipe.
      GTY1106931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
  45. DISCONNECT NO. 2 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 2 water by-pass hose from the No. 4 water by-pass pipe.
      GTY1106930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the fuel tank to canister tube.
      GTY1106929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. DISCONNECT INLET HEATER WATER HOSE

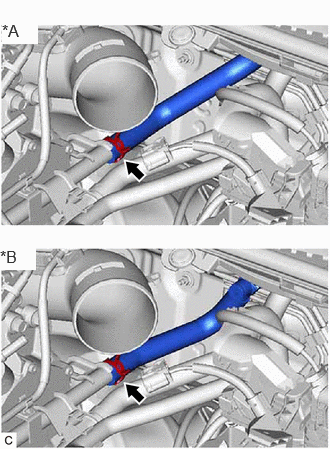

    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the inlet heater water hose.
      GTY1252375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A except Manual Transaxle (w/ Sub Radiator)
      *B for Manual Transaxle (w/ Sub Radiator)
  48. DISCONNECT OUTLET HEATER WATER HOSE
    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the outlet heater water hose.
      GTY1103179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. DISCONNECT FUEL TUBE SUB-ASSEMBLY
    1. Remove the No. 1 fuel pipe clamp from the fuel tube sub-assembly.
      GTY1106928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel tube sub-assembly from the fuel pipe.

      Refer to PRECAUTION [11/2022 - ]

      GTY1109133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  51. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  52. SECURE STEERING WHEEL ASSEMBLY

    Refer to PROCEDURE - Step 2

  53. REMOVE COLUMN HOLE COVER SILENCER SHEET

    Refer to PROCEDURE - Step 13

  54. DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 15

  55. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  56. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [09/2024 - ]

  57. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH
    1. for Manual Transaxle
      GTY1106925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 bolts and rear side rail reinforcement sub-assembly LH from the front suspension crossmember sub-assembly and vehicle body.
    2. for Automatic Transaxle

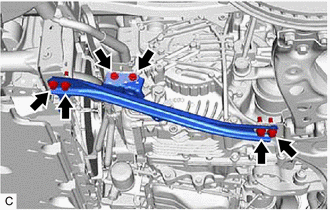

      GTY1251342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 6 bolts and rear side rail reinforcement sub-assembly LH from the front suspension crossmember sub-assembly and vehicle body.
  58. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH
    1. Remove the 6 bolts and rear side rail reinforcement sub-assembly RH from the front suspension crossmember sub-assembly and vehicle body.

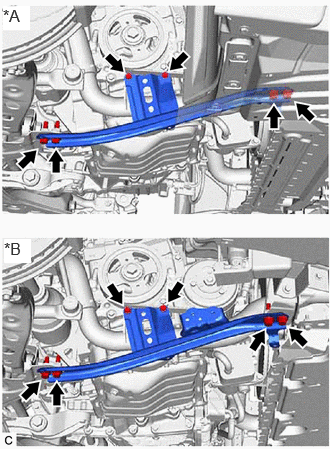

      GTY1251334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Sub Radiator
      *B w/ Sub Radiator
  59. REMOVE NO. 1 AIR TUBE
    1. Lossen the 2 hose clamps and remove the No. 1 air tube.
      GTY1106927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. DISCONNECT NO. 1 CLUTCH HOSE (for Manual Transaxle)
    1. Using a 10 mm union nut wrench, disconnect the bleeder clutch release tube from the No. 1 clutch hose.
      GTY1103180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and disconnect the No. 1 clutch hose from the clutch flexible hose bracket.
  61. DISCONNECT NO. 1 TRANSMISSION OIL COOLER HOSE ASSEMBLY (for Automatic Transaxle)
    1. Disengage the clamp.

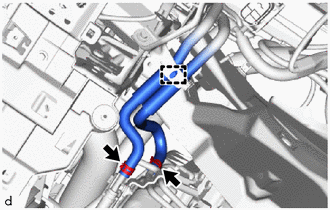

      GTY1251525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the 2 clips and disconnect the No. 1 transmission oil cooler hose assembly.
  62. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine assembly with transaxle on an engine lifter.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle and front suspension crossmember sub-assembly level.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the engine assembly from unexpectedly moving, securely support the engine assembly until it is secured to an engine stand.
      • To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly with transaxle.
      GTY1109265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Attachments
    2. Remove the 3 bolts and separate the engine mounting insulator sub-assembly RH from the engine mounting bracket RH.
      GTY1103181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and separate the engine mounting insulator LH from the transaxle assembly.
      GTY1103182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts to separate the front suspension crossmember sub-assembly from the vehicle.
      GTY1103183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Operate the engine lifter and remove the engine assembly with transaxle from the vehicle.
      NOTE:
      • Make sure that the engine assembly with transaxle is clear of all wiring and hoses.
      • While lowering the engine assembly with transaxle from the vehicle, do not allow it to contact the vehicle.
  63. REMOVE ENGINE MOUNTING BRACKET CAP
    1. Turn over the engine mounting bracket cap to the upper part.
      GTY1252188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. While rotating in the direction shown in the illustration, remove the engine mounting bracket cap.
      GTY1251415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Rotation Direction
  64. REMOVE FLEXIBLE HOSE BRACKET (for Automatic Transaxle)

    Refer to PROCEDURE - Step 13

  65. INSTALL ENGINE HANGERS
    1. Install the No. 1 engine hanger and No. 2 engine hanger with the 4 bolts as shown in the illustration.
      GTY1019489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Engine Hanger
      *2 No. 2 Engine Hanger
      Bolt

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      HINT:

      No. 1 Engine Hanger 12281-25030
      12281-25040
      No. 2 Engine Hanger 12282-18010
      12282-18020
      Bolt 91552-F1045
      91552-F1060
    2. Using an engine sling device and engine lift, secure the engine assembly with transaxle.
      NOTE:
      • Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hanger and No. 2 engine hanger may be damaged or deformed if the angle is incorrect.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
  66. REMOVE ENGINE MOUNTING INSULATOR LH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator LH is necessary.

    1. Disengage the clamp from the engine mounting insulator LH.
      GTY1103184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts, nut and engine mounting insulator LH from the vehicle.
      GTY1106924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE RESERVE TANK ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    1. Slide the clip and remove the No. 3 water by-pass hose from the reserve tank assembly.
      GTY1106923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and reserve tank assembly from the vehicle.
  68. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    1. Disengage the clamp and disconnect the air conditioner tube.
      GTY1109132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, nut and engine mounting insulator sub-assembly RH from the vehicle.
      GTY1109130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE NO. 1 FUEL VAPOR FEED HOSE
    1. Disengage the 2 clamps from the engine assembly with transaxle.
      GTY1106913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and remove the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
  70. DISCONNECT TRANSMISSION OIL COOLER (for Automatic Transaxle)

    Refer to PROCEDURE - Step 18

  71. DISCONNECT ENGINE WIRE (for Automatic Transaxle)

    Refer to PROCEDURE - Step 19

  72. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. Remove the flywheel housing side cover from the cylinder block sub-assembly.
      GTY1020476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE STARTER ASSEMBLY

    Refer to PROCEDURE - Step 21

  74. REMOVE FLYWHEEL HOUSING UNDER COVER
    1. Remove the flywheel housing under cover from the cylinder block sub-assembly.
      GTY1108279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE FAN AND GENERATOR V BELT

    Refer to PROCEDURE - Step 3

  76. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    1. Remove the 2 bolts and V-ribbed belt tensioner assembly from the timing chain cover assembly.
      GTY1019873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. REMOVE TIMING GEAR COVER INSULATOR
    1. Remove the timing gear cover insulator from the timing chain cover assembly.
      GTY1019959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  78. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 6

  79. REMOVE NO. 5 WATER BY-PASS HOSE (for Automatic Transaxle)
    1. Disengage the clamp

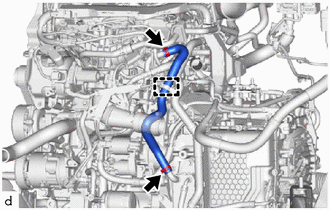

      GTY1251528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the 2 clips and remove the No. 5 water by-pass hose from the engine assembly with transaxle.
  80. REMOVE NO. 4 WATER BY-PASS HOSE (for Automatic Transaxle)

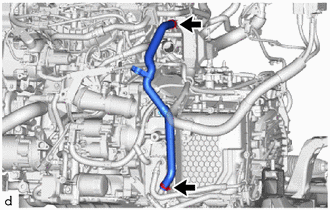

    1. Slide the 2 clips and remove the No. 4 water by-pass hose from the engine assembly with transaxle.
      GTY1251527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  81. REMOVE ENGINE WIRE
    1. for Manual Transaxle:
      GTY1019797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 bolts.
      2. Remove the 4 bolts.
        GTY1020458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 2 bolts.
        GTY1019794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Remove the bolt.
        GTY1251429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Automatic Transaxle:

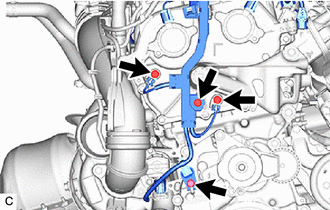

      1. Remove the 4 bolts.
        GTY1251434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

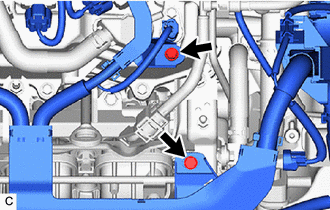

      2. Remove the 2 bolts.
        GTY1252463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 4 bolts.
        GTY1251280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

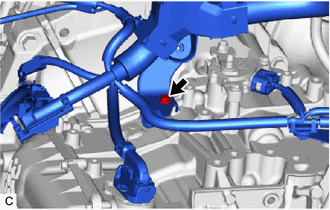

      4. Remove the bolt.
        GTY1251433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  82. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  83. REMOVE PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  84. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    for Manual Transaxle:

    Refer to PROCEDURE - Step 7

    for Automatic Transaxle:

    Refer to PROCEDURE - Step 18

  85. REMOVE DRIVE PLATE AND TORQUE CONVERTER CLUTCH SETTING BOLT (for Automatic Transaxle)

    Refer to PROCEDURE - Step 17

  86. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for Automatic Transaxle)

    Refer to PROCEDURE - Step 21

  87. REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

    Refer to PROCEDURE - Step 4

  88. REMOVE MANUAL TRANSAXLE ASSEMBLY (for Manual Transaxle)

    Refer to PROCEDURE - Step 11

  89. REMOVE COVER AND DISC CLUTCH SET (for Manual Transaxle)

    Refer to PROCEDURE - Step 8

  90. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

    Refer to PROCEDURE - Step 3

  91. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

    Refer to PROCEDURE - Step 5

  92. INSTALL ENGINE ASSEMBLY TO ENGINE STAND
    1. Install the engine assembly to an engine stand.
  93. REMOVE ENGINE HANGERS
    1. Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger.
scientia non olet · About LEMON Manuals
