Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  4. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9

  5. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  6. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  7. REMOVE OIL PRESSURE AND TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 2

  8. DISCONNECT NO. 6 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 5

  9. DISCONNECT NO. 5 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 6

  10. REMOVE OIL FILTER BRACKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  11. REMOVE RADIATOR SUPPORT OPENING COVER (for Automatic Transaxle)

    Refer to PROCEDURE - Step 1

  12. REMOVE INLET NO. 1 AIR CLEANER (for Automatic Transaxle)

    Refer to PROCEDURE - Step 6

  13. REMOVE AIR CLEANER WITH AIR CLEANER HOSE (for Automatic Transaxle)

    Refer to PROCEDURE - Step 7

  14. DISCONNECT NO. 1 RADIATOR HOSE (for Automatic Transaxle)

    Refer to PROCEDURE - Step 36

  15. REMOVE NO. 2 AIR TUBE (for Automatic Transaxle)

    Refer to PROCEDURE - Step 38

  16. REMOVE NO. 4 AIR HOSE (for Automatic Transaxle)

    Refer to PROCEDURE - Step 39

  17. REMOVE NO. 5 AIR HOSE (for Automatic Transaxle)

    Refer to PROCEDURE - Step 40

  18. DISCONNECT TRANSMISSION OIL COOLER (for Automatic Transaxle)

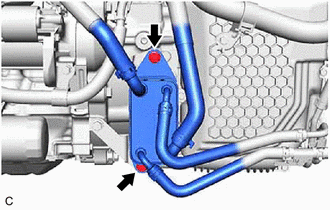

    1. GTY1251317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and disconnect the transmission oil cooler from the oil cooler bracket.

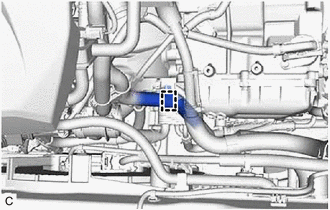

    2. GTY1251316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the clamp.

  19. DISCONNECT ENGINE WIRE (for Automatic Transaxle)

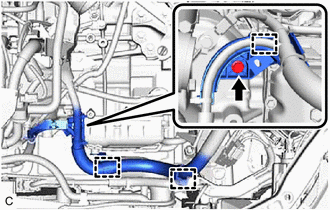

    1. GTY1251318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 clamps.

    2. Remove the bolt and disengage the guide and disconnect the engine wire.
  20. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. Disengage the claw as shown in the illustration to remove the flywheel housing side cover.
      GTY1109217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE STARTER ASSEMBLY
    1. Disconnect the starter assembly connector.
      GTY1107324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
    3. Disengage the clamp to separate the engine wire.
      GTY1107323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the nut and disconnect the engine wire from terminal 30.
    5. Remove the 2 bolts and starter assembly from the cylinder block sub-assembly.
      GTY1107322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the flywheel housing under cover is securely installed.

      Refer to PROCEDURE - Step 20

      GTY1108279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the bolt and wire harness clamp bracket from the starter assembly.
      GTY1020015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
