Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE COVER AND DISC CLUTCH SET (for Manual Transaxle)
Refer to REMOVAL [11/2022 - ]
REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (for Automatic Transaxle)
Refer to REMOVAL [09/2024 - ]

REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
NOTE:
- Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
- To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.
- Using an engine sling device and engine lift, secure the engine assembly before servicing.

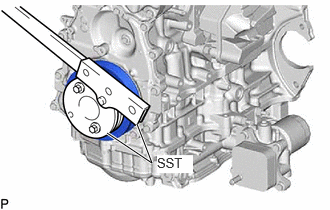

Using SST, hold the crankshaft pulley assembly.

SST: 09213-54015
SST: 09330-00021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

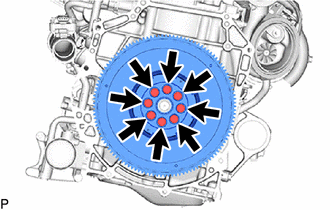

Remove the 8 bolts and flywheel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
NOTE:
- Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
- To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.
- Using an engine sling device and engine lift, secure the engine assembly before servicing.

Using SST, hold the crankshaft pulley assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09213-54015
SST: 09330-00021

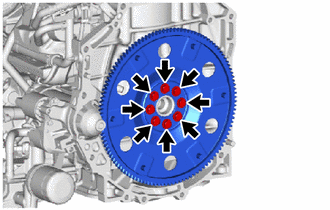

Remove the 8 bolts, drive plate and ring gear sub-assembly and rear drive plate spacer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

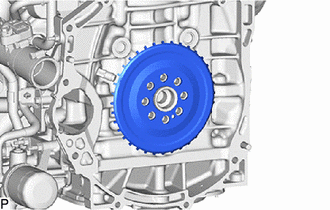

REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

Remove the No. 1 crankshaft position sensor plate.

REMOVE REAR ENGINE OIL SEAL

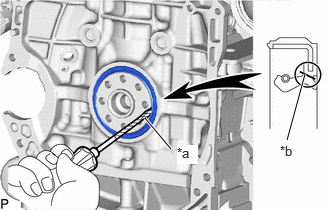

Using a knife, cut off the lip of the rear engine oil seal.

*a	Protective Tape
*b	Cut Position

Using a screwdriver, pry out the rear engine oil seal.
NOTE:
Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.

HINT:

Tape the screwdriver tip before use.
