Removal [09/2024 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE WINDSHIELD WIPER MOTOR AND LINK
Refer to REMOVAL [11/2022 - ]
REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL
Refer to PROCEDURE - Step 3
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 4

REMOVE DASH PANEL HEAT INSULATOR

GTY1103597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE RADIATOR SUPPORT OPENING COVER
Refer to PROCEDURE - Step 1

REMOVE INLET NO. 1 AIR CLEANER

GTY1103545

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR CLEANER WITH AIR CLEANER HOSE

GTY1103546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INTAKE AIR RESONATOR

GTY1108432

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 AIR INLET DUCT
REMOVE FRONT EXHAUST PIPE ASSEMBLY
Refer to REMOVAL [09/2022 - ]
REMOVE AIR FUEL RATIO SENSOR
Refer to REMOVAL [09/2024 - ]

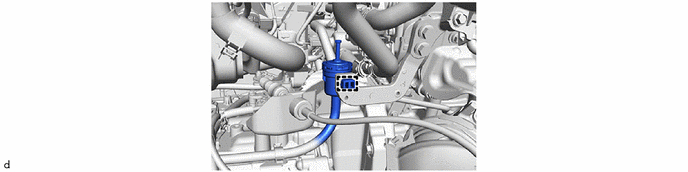

SEPARATE TRANSMISSION BREATHER HOSE SUB-ASSEMBLY (for Automatic Transaxle)

GTY1250745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the clamp to separate the transmission breather hose sub-assembly from the flexible hose bracket.

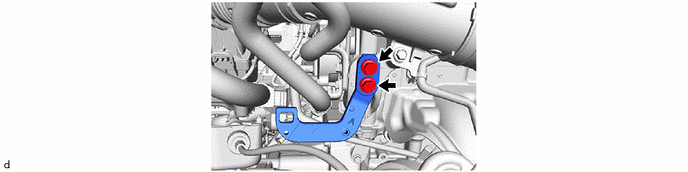

REMOVE FLEXIBLE HOSE BRACKET (for Automatic Transaxle)

GTY1250747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and flexible hose bracket.

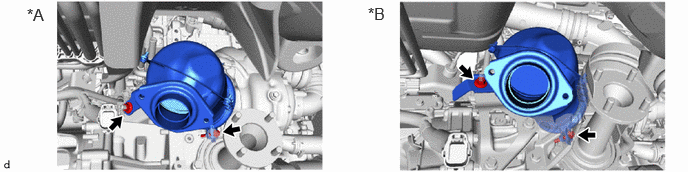

REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

WARNING:

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

GTY1250743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A

for Manual Transaxle

*B

for Automatic Transaxle

REMOVE EXHAUST PIPE CLAMP

GTY1108453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE OUTLET TURBINE ELBOW GASKET

NOTE:

Remove any peeling residue on the flange surface.

GTY1103644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
