Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [11/2022 - 09/2024] , or refer to REMOVAL [09/2024 - ]

  2. REMOVE FLYWHEEL HOUSING SIDE COVER

    Refer to PROCEDURE - Step 11 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 20 [09/2024 - ]

  3. REMOVE STARTER ASSEMBLY

    Refer to PROCEDURE - Step 12 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 21 [09/2024 - ]

  4. DISCONNECT ENGINE WIRE
    1. Disconnect the 4 connectors.

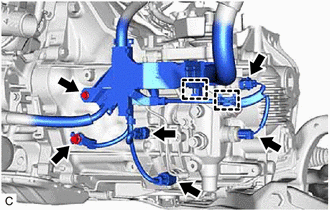

      GTY1109669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to disconnect the engine wire from the wire harness clamp bracket.
    3. Remove the 2 bolts and disconnect the engine wire from the manual transaxle assembly.
    4. Remove the bolt.

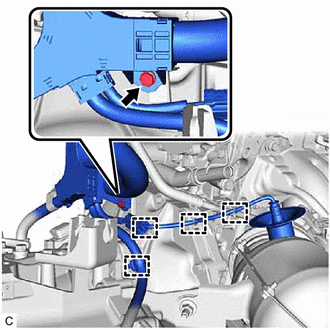

      GTY1109670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 4 clamps to disconnect the engine wire from the wire harness clamp bracket.
    6. Disengage the 4 clamps to disconnect the engine wire from the wire harness clamp bracket.

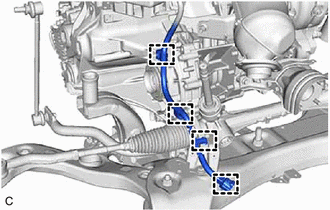

      GTY1109671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 14 [09/2024 - ]

  6. REMOVE OUTLET TURBINE ELBOW GASKET

    Refer to PROCEDURE - Step 14 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 16 [09/2024 - ]

  7. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
    1. Remove the bolt and front suspension crossmember sub-assembly from the No. 2 engine moving control rod.

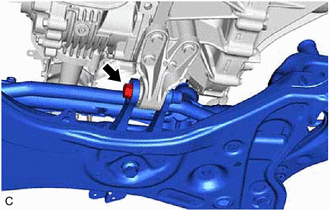

      GTY1109672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 ENGINE MOVING CONTROL ROD
    1. Remove the 4 bolts and No. 2 engine moving control rod from the manual transaxle assembly.

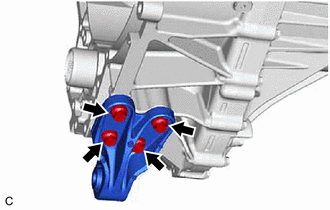

      GTY1109698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE PROPELLER SHAFT HEAT INSULATOR
    1. Remove the 2 bolts and propeller shaft heat insulator from the transfer assembly.

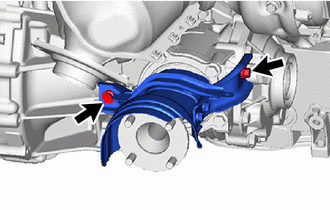

      GTY1023116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. LOOSEN TRANSFER ASSEMBLY
    1. Type A:
      1. Loosen the 2 bolts and 2 nuts.

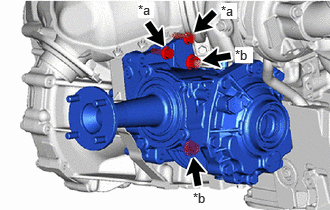

        GTY1116936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bolt
        *b Nut
    2. Type B:
      1. Loosen the 4 nuts.
        GTY1111030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Loosen the 4 nuts.
      GTY1114477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE MANUAL TRANSAXLE ASSEMBLY
    1. Remove the bolt.

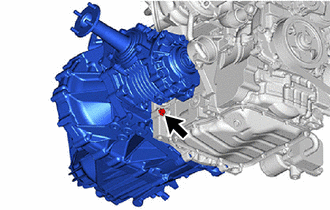

      GTY1023094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

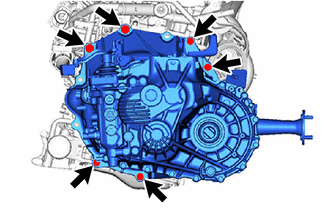

    2. GTY1023109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 6 bolts and manual transaxle assembly.

  12. REMOVE TRANSFER ASSEMBLY

    Refer to PROCEDURE - Step 2 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 4 [09/2024 - ]

  13. REMOVE BLEEDER TO FLEXIBLE HOSE TUBE

    Refer to PROCEDURE - Step 3

  14. REMOVE CLUTCH RELEASE BLEEDER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  15. REMOVE CLUTCH RELEASE BEARING PLATE

    Refer to PROCEDURE - Step 5

  16. REMOVE CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY

    Refer to PROCEDURE - Step 6

  17. REMOVE BLEEDER CLUTCH RELEASE TUBE

    Refer to PROCEDURE - Step 7

  18. REMOVE CLUTCH FLEXIBLE HOSE BRACKET

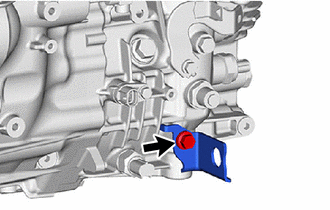

    1. GTY1023121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt and clutch flexible hose bracket from the manual transaxle assembly.

  19. REMOVE EXHAUST PIPE SUPPORT STAY
    1. Remove the 2 bolts and exhaust pipe support stay from the manual transaxle assembly.

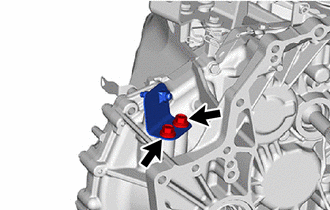

      GTY1023093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the 2 bolts and 2 wire harness clamp brackets from the manual transaxle assembly.

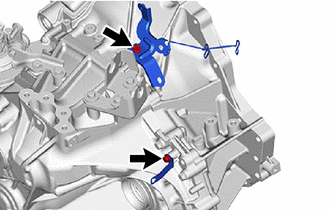

      GTY1023092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the manual transaxle assembly.

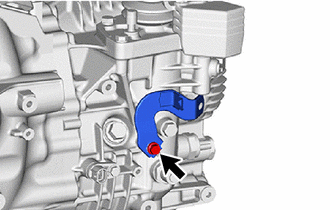

      GTY1024121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT
    1. Type A:
      1. Using 2 nuts, remove the 2 transfer and transaxle setting stud bolts from the manual transaxle assembly.

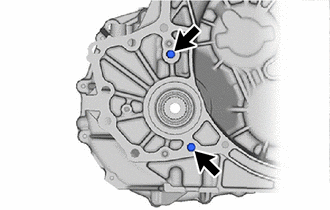

        GTY1023087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:
      1. Using 2 nuts, remove the 4 transfer and transaxle setting stud bolts from the manual transaxle assembly.

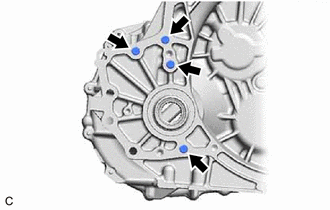

        GTY1109699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE TRANSMISSION CASE PLUG ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the transmission case plug assembly or manual transaxle assembly is necessary.

    1. Remove the transmission case plug assembly from the manual transaxle assembly.

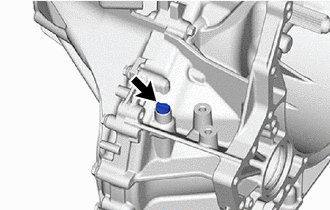

      GTY1023089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
