Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

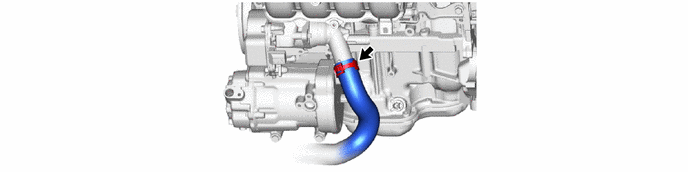

  1. DISCONNECT NO. 2 RADIATOR HOSE
    1. GTY1103141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FUEL HOSE BRACKET

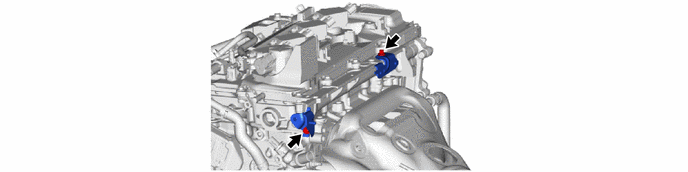

    1. GTY1103142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  4. REMOVE EXHAUST MANIFOLD
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8
  5. REMOVE MANIFOLD STAY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  6. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  7. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 6

  8. DISCONNECT NO. 3 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 3

  9. DISCONNECT NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 4

  10. REMOVE EGR COOLER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  11. REMOVE NO. 1 EGR COOLER GASKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  12. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  13. REMOVE EGR VALVE ADAPTER GASKET

    Refer to PROCEDURE - Step 3

  14. REMOVE EGR INLET GASKET

    Refer to PROCEDURE - Step 4

  15. DISCONNECT NO. 4 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 5

  16. DISCONNECT NO. 8 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 6

  17. REMOVE EGR VALVE ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  18. REMOVE EGR VALVE GASKET
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 6
  19. REMOVE NO. 3 WATER BY-PASS PIPE

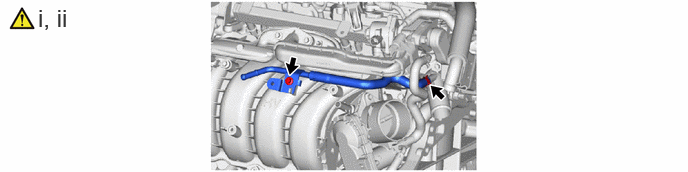

    1. GTY1109255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and No. 3 water by-pass pipe from the intake manifold.
      2. Slide the clip and disconnect the No. 3 water by-pass pipe from the water outlet sub-assembly.
  20. REMOVE INTAKE MANIFOLD STAY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 12
  21. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 13

  22. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

    Refer to PROCEDURE - Step 14

  23. DISCONNECT FUEL TUBE SUB-ASSEMBLY

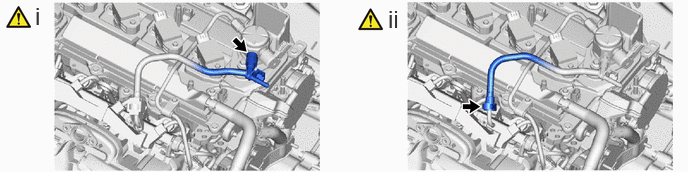

    1. GTY1106227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel tube sub-assembly from the fuel pump assembly.

        HINT:

        Refer to PRECAUTION [11/2022 - ]

      2. Disconnect the fuel tube sub-assembly from the fuel delivery pipe with sensor assembly.

        HINT:

        Refer to PRECAUTION [11/2022 - ]

  24. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY

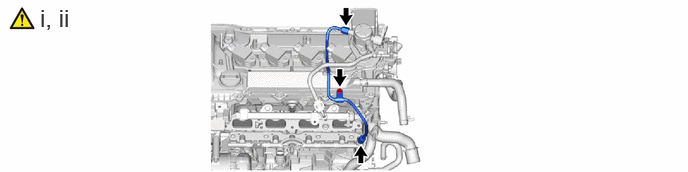

    1. GTY1108789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt.
      2. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
  25. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8
  26. REMOVE FUEL PUMP FLANGE

    Refer to PROCEDURE - Step 9

  27. REMOVE FUEL PUMP SPACER GASKET
  28. REMOVE FUEL PUMP LIFTER ASSEMBLY
  29. REMOVE WATER BY-PASS HOSE ASSEMBLY

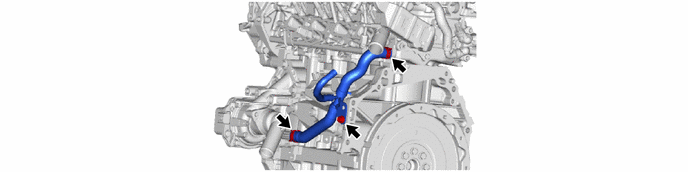

    1. GTY1108349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE SENSOR WIRE

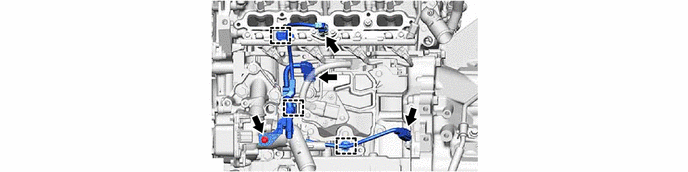

    1. GTY1103146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE NO. 6 ENGINE WIRE

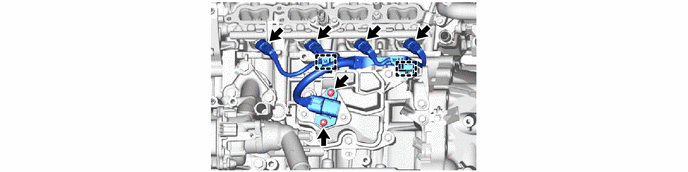

    1. GTY1103147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  33. REMOVE FUEL DELIVERY SPACER

    Refer to PROCEDURE - Step 3

  34. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 5

  35. REMOVE NO. 5 ENGINE WIRE

    Refer to PROCEDURE - Step 6

  36. REMOVE PORT FUEL INJECTOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  37. REMOVE FUEL DELIVERY PIPE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  38. REMOVE DIRECT FUEL INJECTOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  39. REMOVE NOZZLE HOLDER CLAMP

    Refer to PROCEDURE - Step 5

  40. REMOVE NO. 3 FUEL INJECTOR BACK-UP RING

    Refer to PROCEDURE - Step 6

  41. REMOVE NO. 1 FUEL INJECTOR BACK-UP RING

    Refer to PROCEDURE - Step 7

  42. REMOVE C-RING

    Refer to PROCEDURE - Step 8

  43. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 9

  44. REMOVE FUEL INJECTOR SEAL

    Refer to PROCEDURE - Step 10

  45. REMOVE IGNITION COIL ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  46. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

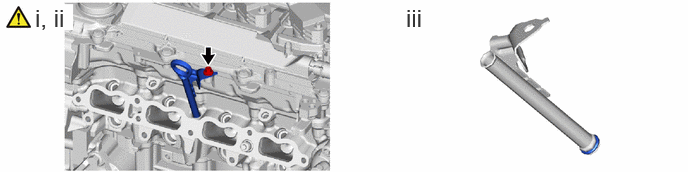

    1. GTY1105673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the engine oil level dipstick.
      2. Using an 8 mm socket wrench, remove the bolt and engine oil level dipstick guide from the cylinder head sub-assembly.
      3. Remove the O-ring from the engine oil level dipstick guide.
  47. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  48. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

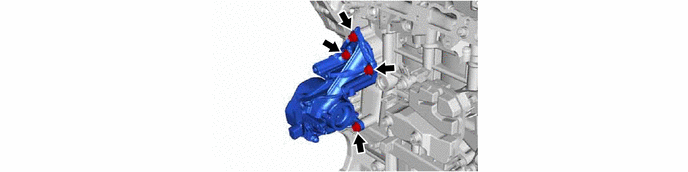

    1. GTY1103149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR

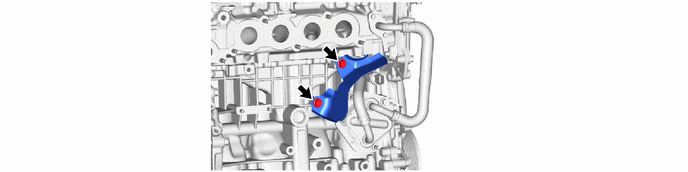

    1. GTY1108373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE WIRE HARNESS CLAMP BRACKET

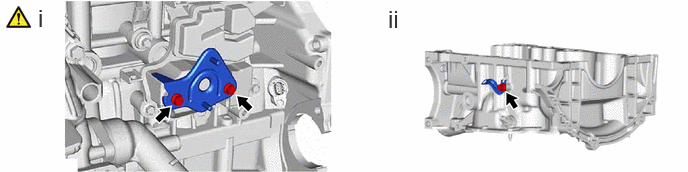

    1. GTY1103439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 2 bolts and wire harness clamp bracket from the No. 1 ventilation case.
      2. Remove the bolt and wire harness clamp bracket from the stiffening crankcase assembly.
