Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

    Refer to REMOVAL [11/2022 - ]

  2. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

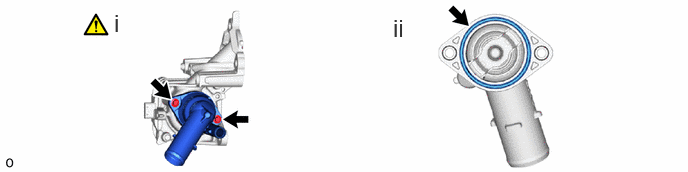

    1. GTY1106354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.
      2. Remove the gasket from the water inlet with thermostat sub-assembly.
