Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 5

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  4. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 6

  5. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE EGR VALVE ADAPTER GASKET

    Refer to PROCEDURE - Step 3

  7. REMOVE EGR INLET GASKET

    Refer to PROCEDURE - Step 4

  8. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Refer to PROCEDURE - Step 2

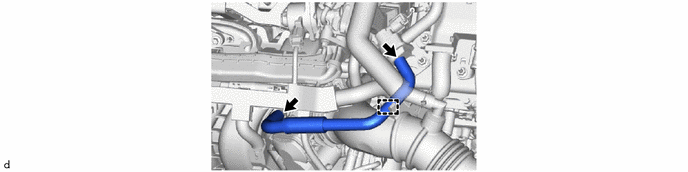

  9. REMOVE NO. 1 FUEL VAPOR FEED HOSE
    1. GTY1107150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

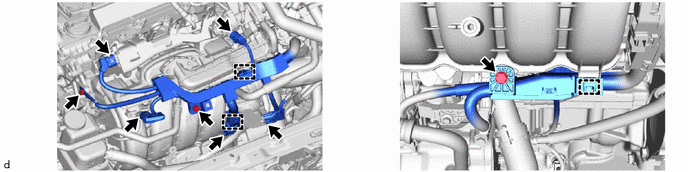

  10. DISCONNECT ENGINE WIRE
    1. GTY1109182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

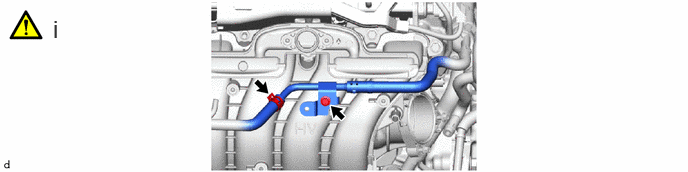

  11. DISCONNECT NO. 3 WATER BY-PASS PIPE
    1. GTY1105720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and separate the No. 3 water by-pass pipe from the intake manifold.

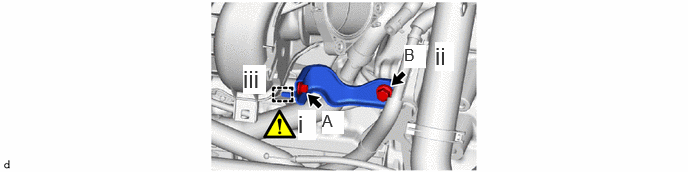

  12. REMOVE INTAKE MANIFOLD STAY
    1. GTY1107991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt (A).
      2. Remove the bolt (B).
      3. Disengage the guide and remove the intake manifold stay.

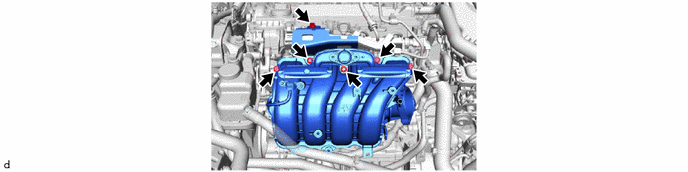

  13. REMOVE INTAKE MANIFOLD
    1. GTY1107147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

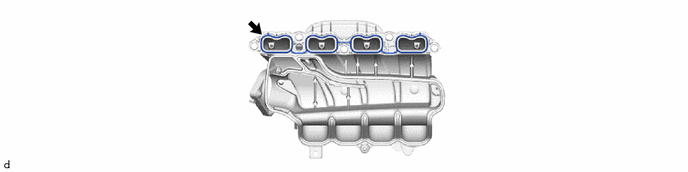

  14. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. GTY1109181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

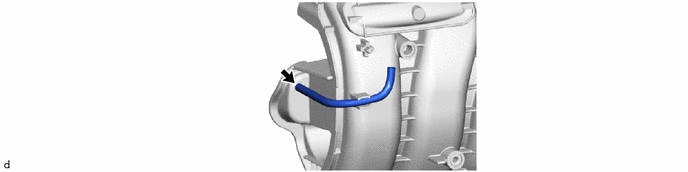

  15. REMOVE VACUUM HOSE
    1. GTY1107146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
