Removal [11/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE IGNITION COIL ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

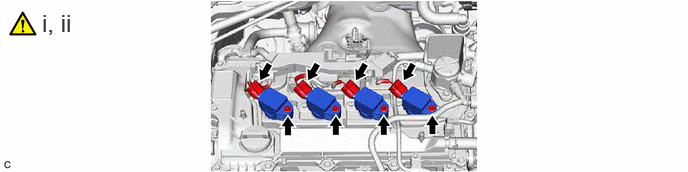

- Disconnect the 4 ignition coil assembly connectors.
- Using an 8 mm socket wrench, remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.
NOTE:
If an ignition coil assembly has been struck or dropped, replace it.
- REMOVE SPARK PLUG
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Refer to PROCEDURE - Step 2 |
