Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 2

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [11/2022 - 12/2024] , or refer to REMOVAL [12/2024 - ]

  3. DISCONNECT NO. 3 WATER BY-PASS HOSE

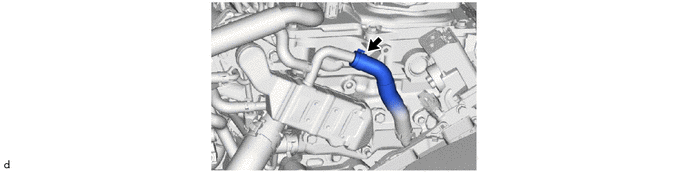

    1. GTY1105116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT NO. 4 WATER BY-PASS HOSE

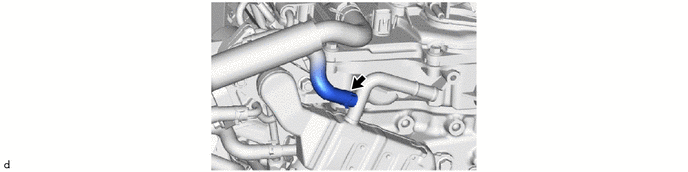

    1. GTY1105114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE EGR COOLER ASSEMBLY

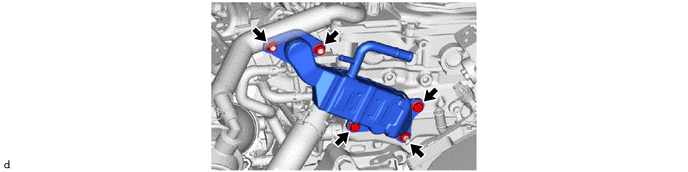

    1. GTY1105115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      [The illustrations are representative examples, and details may differ.]

  6. REMOVE EGR VALVE GASKET

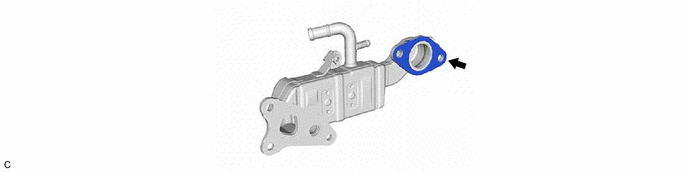

    1. GTY1029230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 EGR COOLER GASKET

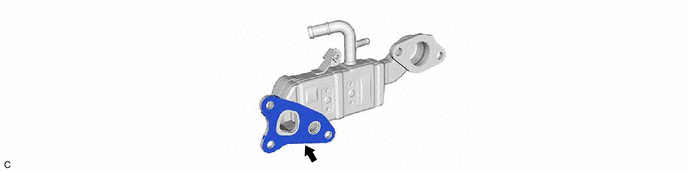

    1. GTY1030596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
