Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

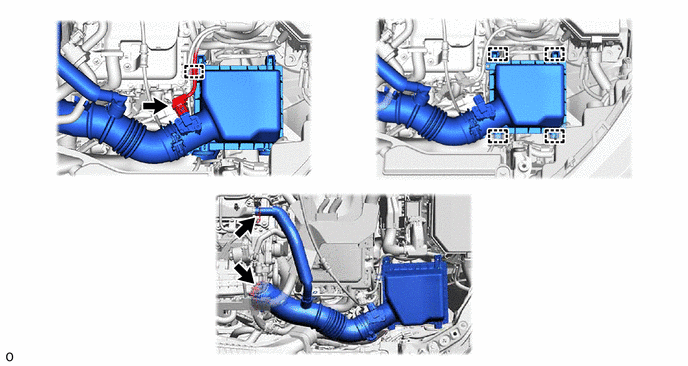

    1. GTY1106310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT NO. 8 WATER BY-PASS HOSE

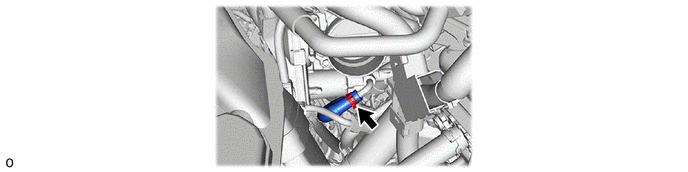

    1. GTY1105009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

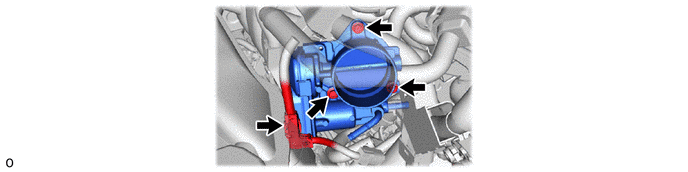

    1. GTY1105010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT NO. 5 WATER BY-PASS HOSE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.

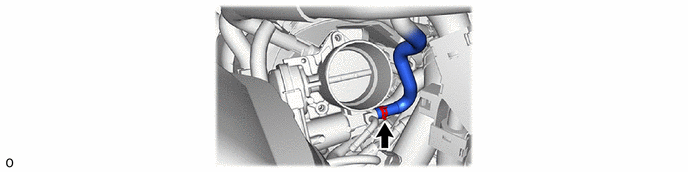

    1. GTY1105007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE THROTTLE BODY GASKET

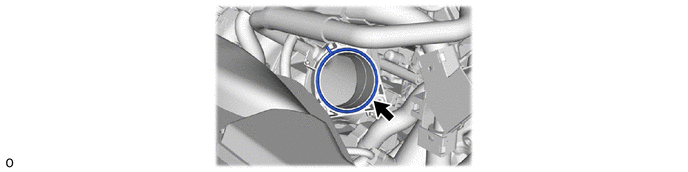

    1. GTY1105008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
