Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE EGR COOLER ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  2. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

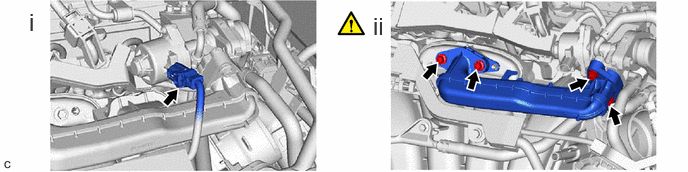

    1. GTY1029075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the EGR valve assembly connector.
      2. Using an 8 mm socket wrench, remove the 4 bolts and No. 1 EGR pipe sub-assembly from the intake manifold and EGR valve assembly.
  3. REMOVE EGR VALVE ADAPTER GASKET
    1. GTY1029238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE EGR INLET GASKET

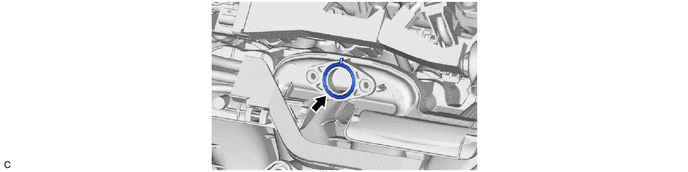

    1. GTY1029132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT NO. 4 WATER BY-PASS HOSE

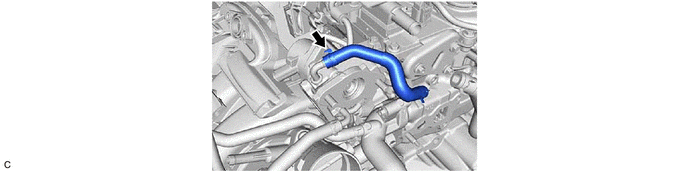

    1. GTY1029134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT NO. 8 WATER BY-PASS HOSE

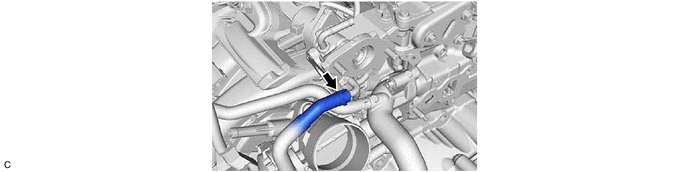

    1. GTY1029133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE EGR VALVE ASSEMBLY

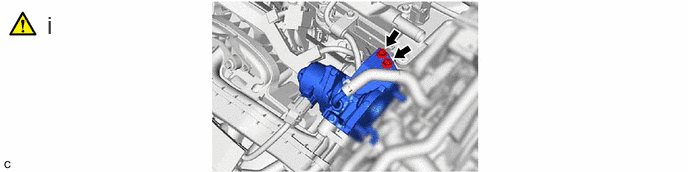

    1. GTY1030331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using the 8 mm socket wrench, remove the 2 bolts and EGR valve assembly.
