Home >> Toyota >> 2021 >> Land Cruiser Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical - Service Information >> Engine Assembly & Engine Under Cover >> Installation [08/2015 - ] >> Procedure

Installation [08/2015 - ]: Procedure

  1. REMOVE ENGINE STAND
    1. Install 2 engine hangers with 2 bolts as shown in the illustration.
      GTY566896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engine Hanger Part No.

      Item Part No.
      Engine hanger 12281-38030
      Bolt 90119-14120

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    2. Attach an engine sling device and hang the engine with a chain block.
    3. Remove the bolts and engine assembly from the engine stand.
  2. INSTALL NO. 2 FRONT ENGINE MOUNTING BRACKET LH

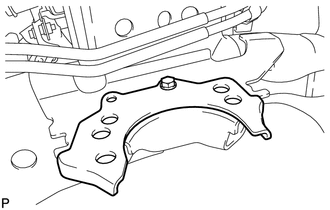

    1. Install the No. 2 front engine mounting bracket LH with the bolt.
      GTY611111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf)

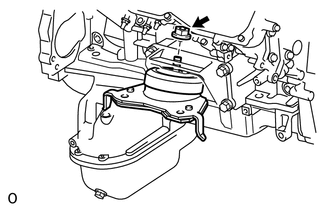

  3. INSTALL FRONT ENGINE MOUNTING INSULATOR RH
    1. GTY610742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the mounting insulator with the nut.

      Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

  4. INSTALL FRONT ENGINE MOUNTING INSULATOR LH
    1. GTY610744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the mounting insulator with the nut.

      Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

  5. INSTALL ENGINE ASSEMBLY
    1. Slowly lower the engine assembly into the engine compartment.
      NOTE:

      Make sure that the engine is clear of all wiring and hoses.

    2. Attach the engine mounting insulators to the vehicle.

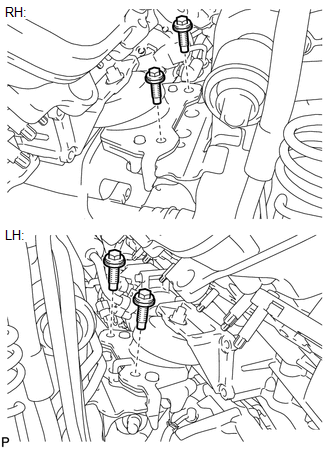

    3. Install the 4 engine mounting insulator bolts.
      GTY576598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 79 N*m (806 kgf*cm, 58 ft.*lbf)

    4. Remove the 2 bolts and 2 engine hangers.
  6. INSTALL WATER A PIPE AND HOSE SUBASSEMBLY

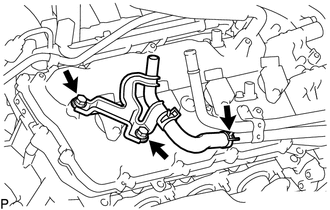

    1. Install the water A pipe and hose subassembly with the 2 bolts.
      GTY608977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  7. CONNECT OIL COOLER TUBE

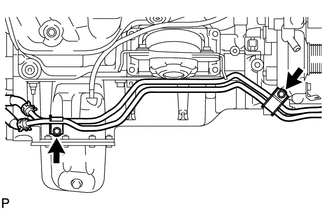

    1. GTY555620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the oil cooler tube with the 2 bolts.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

  8. INSTALL DRIVE PLATE AND RING GEAR SUBASSEMBLY

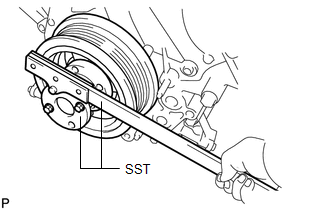

    1. Using SST, hold the crankshaft.
      GTY544045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
      • SST: 09330-00021
    2. Install the crankshaft angle sensor rotor, drive plate and rear drive plate spacer to the crankshaft.
    3. Clean the bolts and bolt holes.
    4. Apply adhesive to 2 or 3 threads at the end of each of the 10 bolts.
      GTY380433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    5. Install and uniformly tighten 10 new bolts in the sequence shown in the illustration.

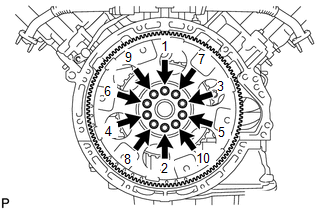

      Fig 1: Flywheel Bolts Tightening Sequence
      GTY551985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N*m (301 kgf*cm, 22 ft.*lbf)

      NOTE:
      • Do not reuse the flywheel installation bolts.
      • Do not strike or damage the flywheel installation bolts. Be sure to handle them carefully.
    6. Mark the upside of each flywheel installation bolt with paint.
      GTY105309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Tighten the flywheel installation bolts 90° as shown in the illustration.
    8. Check that the painted marks are now at a 90° angle to the upside.
  9. INSTALL REAR NO. 1 ENGINE MOUNTING INSULATOR

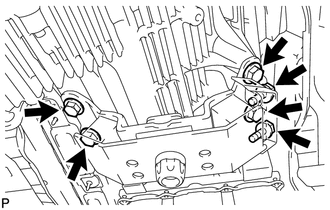

    1. Install the rear engine mounting insulator to the transmission with the 4 bolts.
      GTY562737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 59 N*m (602 kgf*cm, 44 ft.*lbf)

    2. Install the front engine mounting insulator RH with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  10. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY
    1. Install the automatic transmission (Refer to REMOVAL [08/2015 - ] ).
  11. INSTALL STARTER ASSEMBLY

    Refer to PROCEDURE - Step 1

  12. INSTALL STARTER COVER

    Refer to PROCEDURE - Step 2

  13. INSTALL EXHAUST MANIFOLD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 1

  14. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 2

  15. INSTALL NO. 1 MANIFOLD STAY

    Refer to PROCEDURE - Step 3

  16. INSTALL EXHAUST MANIFOLD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 4

  17. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 5

  18. INSTALL NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 6

  19. INSTALL PROPELLER SHAFT HEAT INSULATOR

    Refer to PROCEDURE - Step 7

  20. INSTALL REAR PROPELLER SHAFT ASSEMBLY
    1. Install the rear propeller shaft (Refer to INSTALLATION [08/2015 - ] ).
  21. INSTALL FRONT PROPELLER SHAFT ASSEMBLY
    1. Install the front propeller shaft (Refer to INSTALLATION [08/2015 - ] ).
  22. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

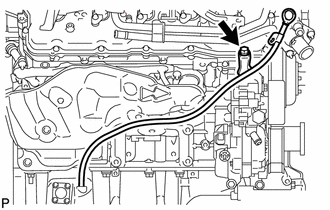

    GTY611093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply a light coat of engine oil to a new O-ring.
    2. Install the O-ring to the guide.
    3. Install the dipstick guide with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Install the dipstick.
    5. Connect the wire harness clamp.
  23. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 5

  24. INSTALL FRONT NO. 2 EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 6

  25. INSTALL CENTER EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 7

  26. INSTALL TAILPIPE ASSEMBLY

    Refer to PROCEDURE - Step 9

  27. INSTALL GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  28. CONNECT VANE PUMP ASSEMBLY

    Refer to PROCEDURE - Step 21

  29. CONNECT COOLER COMPRESSOR ASSEMBLY

    Refer to PROCEDURE - Step 31

  30. CONNECT WIRE HARNESS AND HOSE
    1. Install the ground wire to the air injection control bracket with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

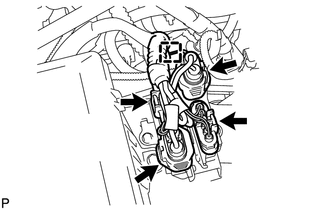

    2. Attach the clamp and connect the 4 air injection control driver connectors.
      GTY601310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

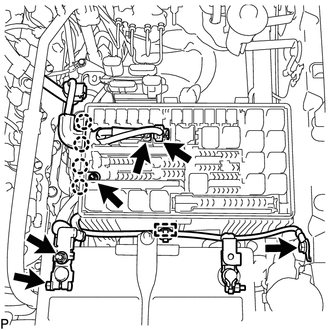

    3. Connect the 2 connectors and 2 clamps.
      GTY600331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 clamps and connect the wire to the engine room junction block with the nut.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    5. Connect the clamp.
    6. Connect the ground wire to the body with the nut.

      for Type A

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

      for Type B

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      HINT:

      Type A or B can be distinguished by confirming the mark on the bolt.

      GTY833037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
    7. Connect the cable to the positive (+) battery terminal.
    8. Connect the wire to the positive (+) battery cable with the nut.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

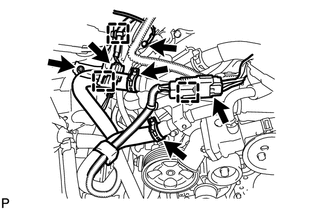

    9. Connect the 2 air injection system hoses and slide the 2 hose clamps to secure the hoses.
      GTY611232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Connect the ground wire with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    11. Connect the 3 clamps and 2 air pump connectors.
    12. Install the connector bracket with the nut.

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

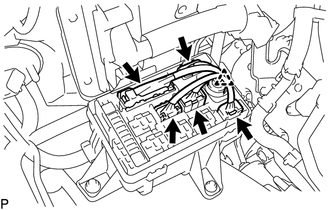

    13. Connect the wire harness clamp and connect the 5 connectors to the connector holder block.
      GTY554619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

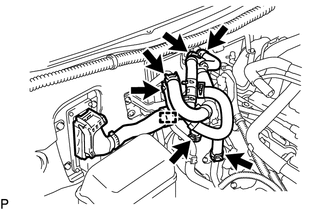

    14. Install the 4 heater hoses and slide the 6 hose clamps to secure the hoses.
      GTY589800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    15. Connect the ECM connector and attach the wire harness clamp.

      HINT:

      Refer to the following procedures to connect the ECM connector (Refer to INSTALLATION [08/2015 - ] ).

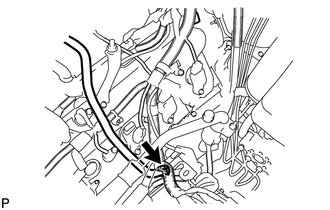

    16. Connect the purge line hose.
      GTY585194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. CONNECT FUEL MAIN AND RETURN HOSE

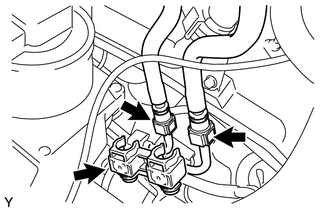

    1. Connect the fuel main and return hoses (Refer to PRECAUTION [08/2015 - ] ).
      GTY580824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fuel pipe clamp.
  32. INSTALL RADIATOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  33. INSTALL FAN SHROUD

    Refer to PROCEDURE - Step 2

  34. INSTALL NO. 2 RADIATOR HOSE
  35. INSTALL NO. 1 RADIATOR HOSE
  36. INSTALL AIR CLEANER ASSEMBLY

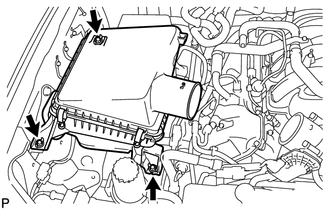

    1. GTY611281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the air cleaner with the 3 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  37. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 10

  38. ADD ENGINE OIL

    Refer to PROCEDURE - Step 6

  39. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  40. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  41. INSPECT FOR OIL LEAK

    Refer to PROCEDURE - Step 7

  42. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  43. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 13

  44. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 12

  45. INSPECT SHIFT LEVER POSITION

    Refer to PROCEDURE - Step 1

  46. INSTALL V-BANK COVER SUBASSEMBLY

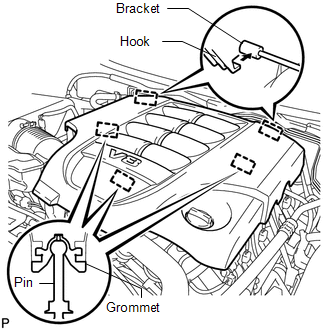

    1. GTY538494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the 2 V-bank cover hooks to the bracket. Then align the 3 V-bank cover grommets with the 3 pins, and press down on the V-bank cover to attach the pins.

  47. INSTALL OIL PAN PROTECTOR ASSEMBLY

    Refer to PROCEDURE - Step 31

  48. INSTALL NO. 2 ENGINE UNDER COVER

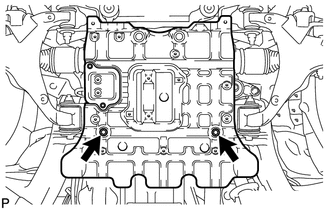

    1. GTY607707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 2 engine under cover with the 2 bolts.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

  49. INSTALL NO. 1 ENGINE UNDER COVER SUBASSEMBLY

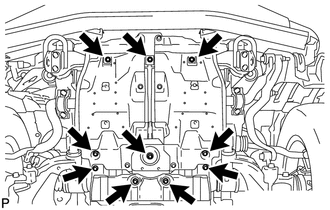

    1. GTY584096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 1 engine under cover with the 10 bolts.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

  50. INSTALL FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 14

  51. INSTALL FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 15

  52. INSTALL FRONT FENDER APRON TRIM PACKING C

    Refer to PROCEDURE - Step 17

  53. INSTALL FRONT FENDER APRON TRIM PACKING A

    Refer to PROCEDURE - Step 16

  54. INSTALL FRONT FENDER APRON TRIM PACKING D

    Refer to PROCEDURE - Step 15

  55. INSTALL FRONT FENDER APRON TRIM PACKING B

    Refer to PROCEDURE - Step 14

  56. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
    1. Install the cowl top ventilator louver (Refer to INSTALLATION [08/2015 - ] ).
  57. INSTALL HOOD SUBASSEMBLY

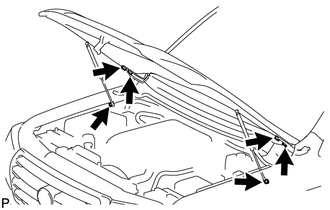

    1. Install the hood with the 4 bolts.
      GTY611010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

    2. Connect the 2 hood supports with the 2 hood support bolts.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

      WARNING:

      Install the hood support while supporting the hood by hand.

      NOTE:

      Check that the hood support is engaged in the ball joint and that it cannot be pulled out.

  58. ADJUST HOOD SUBASSEMBLY

    Refer to PROCEDURE - Step 2

  59. CONNECT RADIATOR SIDE DEFLECTOR LH

    Refer to PROCEDURE - Step 10

  60. INSTALL TRANSMISSION OIL COOLER AIR DUCT

    Refer to PROCEDURE - Step 11

  61. INSTALL FRONT BUMPER COVER

    Refer to PROCEDURE - Step 10

  62. INSTALL RADIATOR GRILLE

    Refer to PROCEDURE - Step 1

  63. INSTALL UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 13

  64. INSPECT IGNITION TIMING

    See step  1

  65. INSPECT ENGINE IDLE SPEED

    See step  2

  66. INSPECT CO/HC

    See step  4

  67. INSPECT ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  68. INSPECT ENGINE COOLANT LEVEL

    Refer to PROCEDURE - Step 2
