Installation [08/2015 - ]: Procedure

  1. INSTALL WIRE HARNESS CLAMP BRACKET

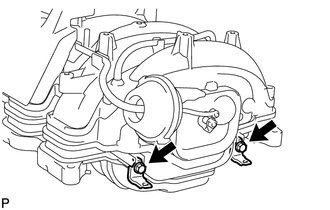

    1. GTY611157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the 2 wire harness clamp brackets with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  2. INSTALL PURGE VSV
    1. Connect the purge line hose to the intake manifold.
      GTY602313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the purge VSV to the intake manifold with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  3. INSTALL VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
    1. Install the vacuum switching valve to the intake manifold with the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

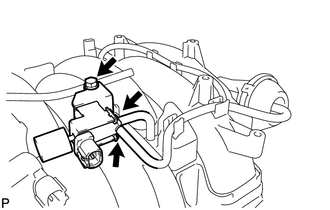

      GTY548276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 vacuum hoses to the vacuum switching valve.
  4. INSTALL THROTTLE BODY ASSEMBLY
    1. Align the protrusion of a new gasket with the groove of the intake manifold, and install the gasket.

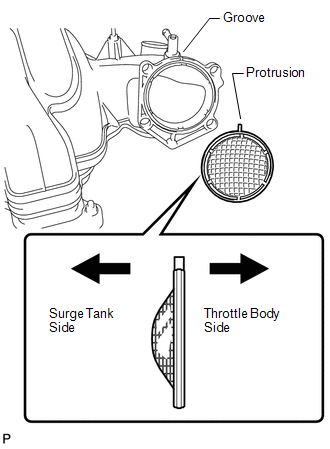

      GTY129922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the throttle body with the 4 bolts.

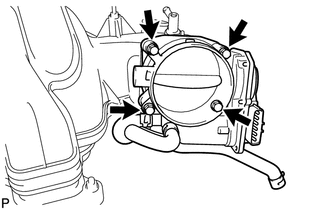

      GTY121218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  5. INSTALL NO. 2 V-BANK COVER BRACKET SUBASSEMBLY

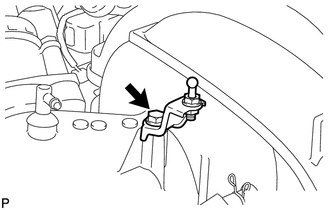

    1. GTY592204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the bracket with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  6. INSTALL V-BANK COVER BOLT
    1. Install the cover bolt to the intake manifold.
      GTY609511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  7. INSTALL NO. 1 V-BANK COVER BRACKET
    1. Install the bracket with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

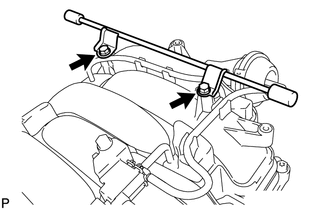

      GTY592202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL VENTILATION HOSE ASSEMBLY
    1. Install the ventilation hose to the intake manifold with the 2 bolts.

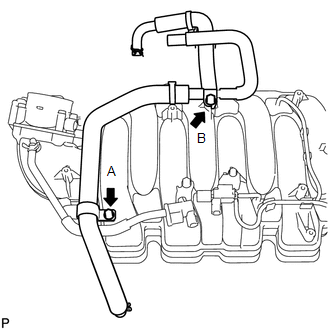

      GTY569704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for bolt A

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      for bolt B

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  9. INSTALL INTAKE MANIFOLD
    1. Place 2 new gaskets on the intake manifold.

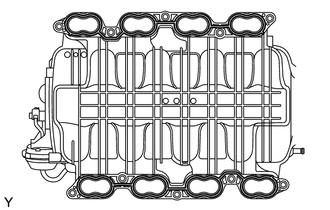

      GTY549855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place the intake manifold on the cylinder head.
    3. Install and uniformly tighten the 8 bolts and 2 nuts in several steps.
      Fig 1: Intake Manifold Bolts Tightening Sequence

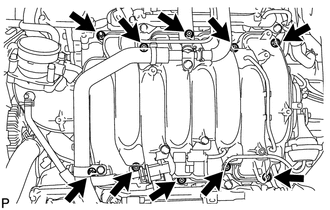

      GTY611154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    4. Install the wire bracket to the intake manifold with the bolt.

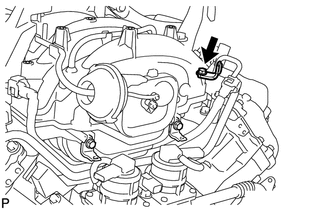

      GTY548275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    5. Connect the 3 wire clamps to the 3 wire brackets.

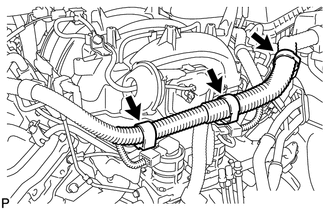

      GTY592203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the No. 3 engine cover.

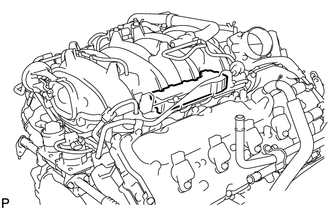

      GTY548421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the No. 1 engine cover subassembly.
      GTY604650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Connect the purge VSV connector.
      GTY570615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Connect the purge line hose to the purge VSV.
    10. Connect the vacuum switching valve connector (for ACIS).
    11. Connect the No. 1 ventilation hose.

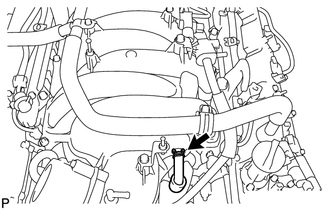

      GTY548277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Connect the 2 water by-pass hoses.

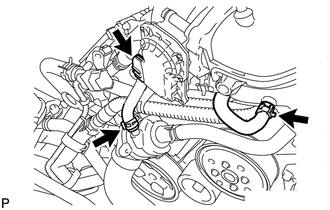

      GTY611501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    13. Connect the throttle body connector.
    14. Connect the ventilation hose to the ventilation pipe of the cylinder head cover LH and RH.
      GTY603852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL AIR CLEANER HOSE ASSEMBLY

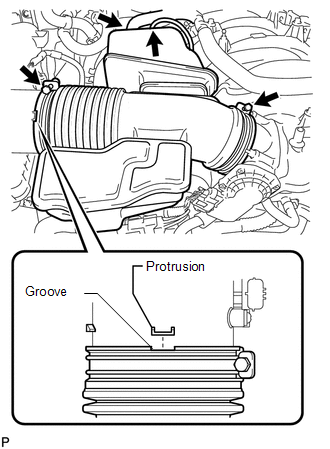

    1. GTY561254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the air cleaner hose so that the protrusion of the air cleaner cap aligns with the groove of the hose as shown in the illustration.

    2. Tighten the 2 clamps.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Connect the vacuum hose.
    4. Connect the No. 2 ventilation hose.
  11. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  12. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  13. INSTALL V-BANK COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 46

  14. INSTALL NO. 1 ENGINE UNDER COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 49

  15. INSTALL FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 14

  16. INSTALL FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 15

  17. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY
    1. Install the cowl top ventilator louver (Refer to INSTALLATION [08/2015 - ] ).
  18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  19. CHECK THROTTLE BODY ASSEMBLY

    Refer to PROCEDURE - Step 1
