Installation [08/2015 - ]: Procedure

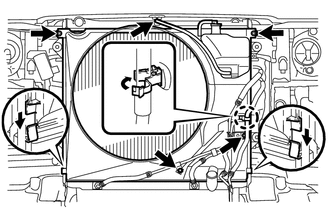

1. Set the radiator bracket hooks to the radiator support holes.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the radiator with the 4 bolts.

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

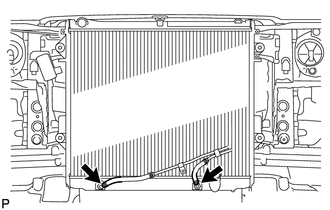

   Connect the 2 oil cooler hoses.

1. Install the fan pulley.
2. Place the shroud together with the coupling fan between the radiator and engine.
   NOTE:

   Be careful not to damage the radiator core.

3. Temporarily install the fluid coupling fan to the fluid coupling bracket with the 4 nuts. Tighten the nuts as much as possible by hand.

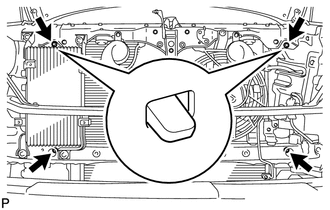

4. Attach the claws of the shroud to the radiator as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Install the shroud with the 2 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

6. Connect the oil cooler tube to the fan shroud with the 2 bolts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

7. Pass the hose through the flexible hose clamp and close the clamp as shown in the illustration.
8. Connect the reservoir hose to the upper radiator tank.
9. Install the fan and generator V belt (Refer to INSTALLATION [08/2015 - ] ).
10. Tighten the 4 nuts of the fluid coupling fan.

    Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 46

See step  5

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 49

1. Install the radiator side deflector LH with the 4 clips.

(Refer to INSTALLATION [08/2015 - ] )
