Installation [10/2020 - ]: Procedure
- INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- When installing a new instrument panel safety pad sub-assembly:

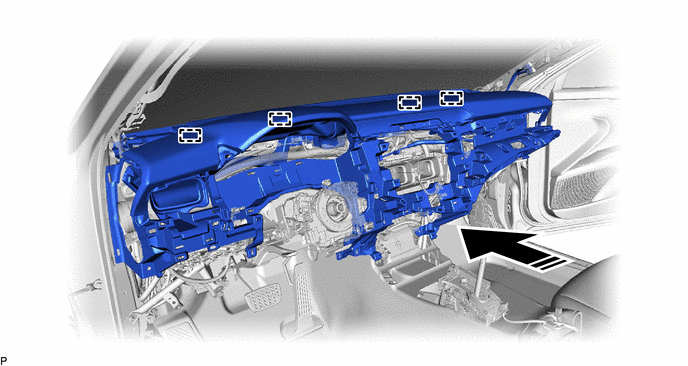

- Engage the 4 guides to temporarily install the instrument panel safety pad sub-assembly as shown in the illustration.
Install in this Direction - - NOTE:- Do not damage the instrument panel safety pad sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
- Install the instrument panel safety pad sub-assembly with the 4 bolts <B>, 2 bolts <A> and nut <E>.
*a Bolt <A> *b Bolt <B> *c Clip *d Nut <E> Bolt <A>
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
- Install the 2 clips.
- Engage each clamp.
*A w/ Headup Display *B w/ Navigation System *C w/ Manual (SOS) Switch - - - Connect each connector.
- Engage the 2 claws to connect the cooler (room temp. sensor) thermistor as shown in the illustration.
Install in this Direction

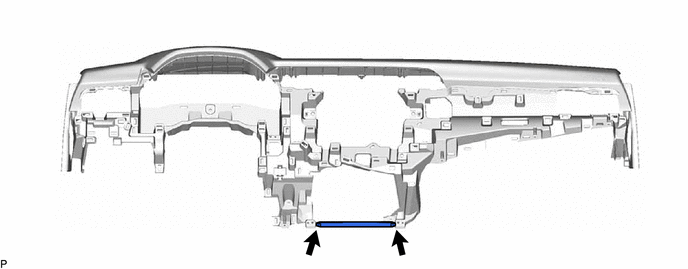

- CONNECT NO. 5 INSTRUMENT PANEL WIRE
Refer to PROCEDURE - Step 4
- INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

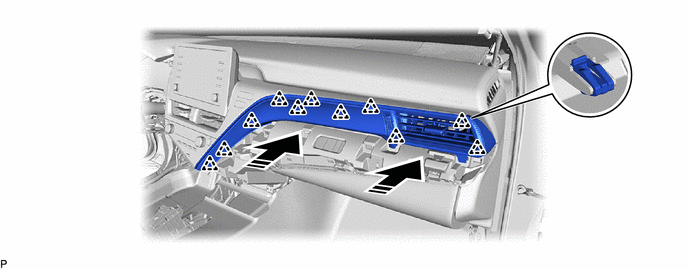

- INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 1
- INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL
- INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
- INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- INSTALL INSTRUMENT SIDE PANEL RH
- INSTALL FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 25 [03/2020 - 08/2021] , or refer to PROCEDURE - Step 25 [08/2021 - ]
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 1
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 27 [03/2020 - 08/2021] , or refer to PROCEDURE - Step 27 [08/2021 - ]
- INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 28 [03/2020 - 08/2021] , or refer to PROCEDURE - Step 28 [08/2021 - ]
- INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)
Refer to PROCEDURE - Step 7
- INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 9 Inch Display)
Refer to PROCEDURE - Step 8
- INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- Connect each connector.

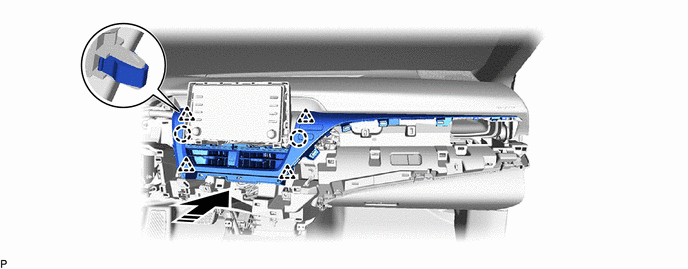

- Engage the 2 claws and 4 clips as shown in the illustration.

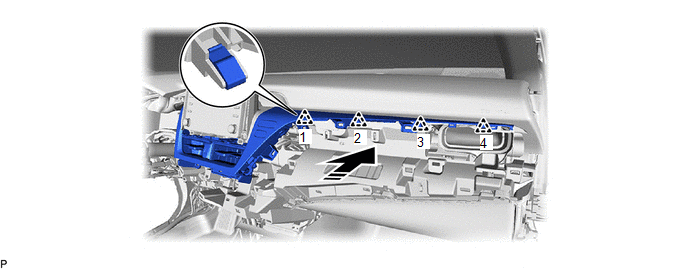

Install in this Direction - - - Engage the 4 clips in the order shown in the illustration to install the center instrument cluster finish panel assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install in this Direction - -

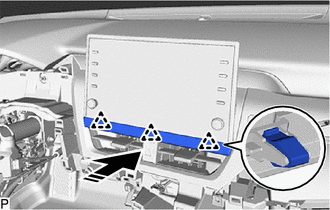

- INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)

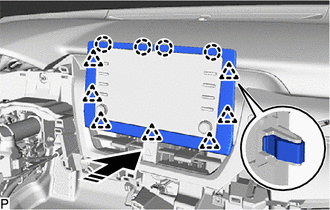

- INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 9 Inch Display)
- INSTALL AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

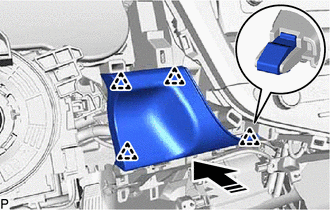

- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
- INSTALL COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 1

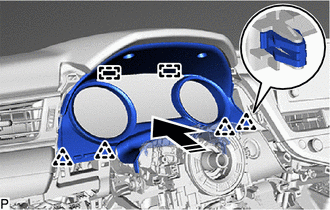

- INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
- CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Engage the claw and 2 guides to connect the hood lock control lever sub-assembly.
- INSTALL NO. 2 METER HOOD CLUSTER
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
- Engage the 2 claws to connect the DLC3 connector.
- Engage the 2 clamps.
- Connect the connector.
- Engage the guide as shown in the illustration.
Install in this Direction - Engage the 3 claws as shown in the illustration.
Install in this Direction - Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <C>.
- INSTALL INSTRUMENT SIDE PANEL LH
- INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 25 [03/2020 - 08/2021] , or refer to PROCEDURE - Step 25 [08/2021 - ]
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 27 [03/2020 - 08/2021] , or refer to PROCEDURE - Step 27 [08/2021 - ]
- INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 28 [03/2020 - 08/2021] , or refer to PROCEDURE - Step 28 [08/2021 - ]
- INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [03/2020 - ]
- INSTALL TURN SIGNAL SWITCH
Refer to PROCEDURE - Step 1
- INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 11 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 11 [08/2022 - ]
- INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 12 [08/2022 - ]
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- INSTALL STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 6
- CHECK STEERING WHEEL CENTER POINT
- INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION [06/2017 - ]
