Installation [03/2017 - ]: Procedure

INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

NOTE:

Do not touch the speaker cone.

Install the front No. 2 speaker assembly with the 2 screws.

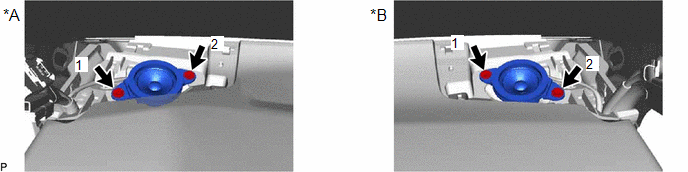

Fig 1: Front No. 2 Speaker Assembly Screws Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For LH Side

For RH Side

HINT:

Install the screws in the order shown in the illustration.

INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL
Refer to PROCEDURE - Step 8 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 8 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - ]
INSTALL FRONT PILLAR GARNISH
Refer to PROCEDURE - Step 27 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 28 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 28 [08/2018 - 09/2019] , or refer to PROCEDURE - Step 25 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 25 [03/2020 - 08/2021] , or refer to PROCEDURE - Step 25 [08/2021 - ]
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP
Refer to PROCEDURE - Step 1
