Installation [10/2020 - ]: Procedure

  1. PRECAUTION (w/o Navigation System)
    NOTE:
    • When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occurs:
      • A communication malfunction DTC may be stored.
      • The radio and display receiver assembly may not operate normally.

    Refer to PRECAUTION [10/2020 - ]

  2. PRECAUTION (w/ Navigation System)
    NOTE:
    • When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
      • A communication malfunction DTC may be stored.
      • The radio and display receiver assembly or navigation ECU may not operate normally.
    • After replacing the radio and display receiver assembly, if "New software is not compatible with the system. Contact your dealer." is displayed on the multi-display, update the software of the navigation ECU.

    Refer to PRECAUTION [10/2020 - ]

  3. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY
  4. INSTALL NO. 1 RADIO RECEIVER BRACKET
    1. Install the No. 1 radio receiver bracket with the 2 screws.
  5. INSTALL NO. 2 RADIO RECEIVER BRACKET
    1. Install the No. 2 radio receiver bracket with the 2 screws.
  6. INSTALL CENTER INSTRUMENT CLUSTER FINISH UPPER PANEL ASSEMBLY (for 7 Inch Display)

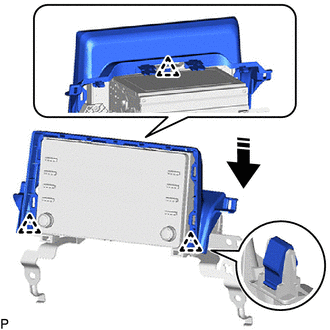

    1. Engage the 3 clips to install the center instrument cluster finish upper panel assembly as shown in the illustration.
      GTY991637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  7. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)
    1. Connect each connector.

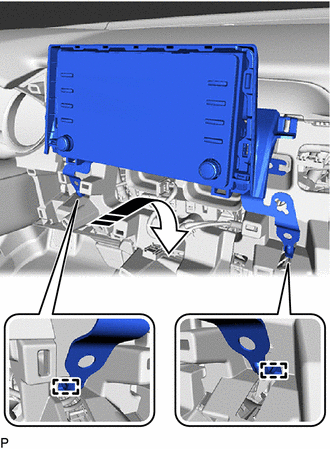

    2. Engage the 2 guides to temporarily install the radio and display receiver assembly with bracket as shown in the illustration.
      GTY991467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

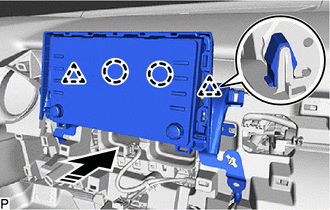

    3. Engage the 2 clips and 2 claws as shown in the illustration.
      GTY990239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the radio and display receiver assembly with bracket with the 4 bolts.
    5. Engage the clamp.
  8. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 9 Inch Display)
    1. Connect each connector.

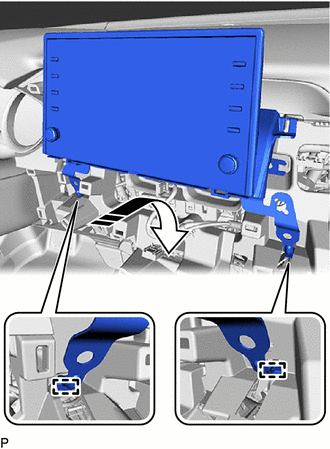

    2. Engage the 2 guides to temporarily install the radio and display receiver assembly with bracket as shown in the illustration.
      GTY990691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

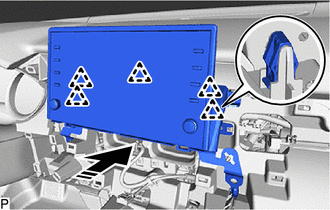

    3. Engage the 5 clips as shown in the illustration.
      GTY990536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the radio and display receiver assembly with bracket with the 4 bolts.
    5. Engage the clamp.
  9. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 19

  10. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 20

  11. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 9 Inch Display)

    Refer to PROCEDURE - Step 21

  12. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 24

  13. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to INSTALLATION [10/2020 - ]
