Installation [03/2017 - 06/2017]: Procedure
- INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- When installing a new instrument panel safety pad sub-assembly:

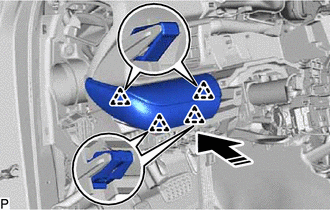

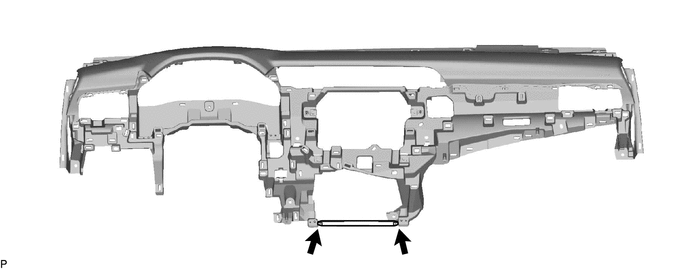

- Engage the 4 guides to temporarily install the instrument panel safety pad sub-assembly as shown in the illustration.
Install in this Direction - - NOTE:- Do not damage the instrument panel safety pad sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
- Install the instrument panel safety pad sub-assembly with the 4 bolts <B>, 2 bolts <A> and nut <E>.
*a Bolt <A> *b Bolt <B> *c Clip *d Nut <E> Bolt<A>
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
- Install the 2 clips.
- Engage each clamp.
*A w/ Manual (SOS) Switch - - - Connect each connector.
- Engage the 2 claws to connect the cooler (room temp. sensor) thermistor as shown in the illustration.
Install in this Direction
- CONNECT NO. 5 INSTRUMENT PANEL WIRE
Refer to PROCEDURE - Step 4
- INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 1

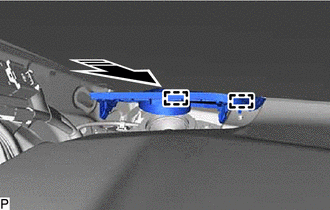

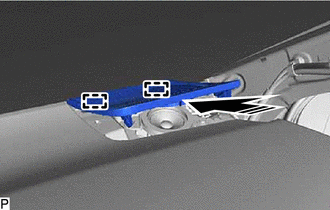

- INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL
- INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)
Refer to PROCEDURE - Step 1

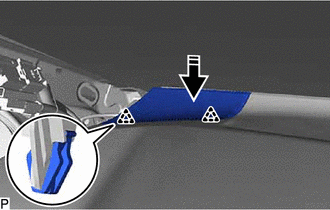

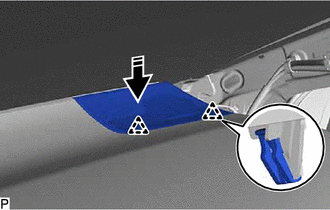

- INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL
- INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY
- INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1

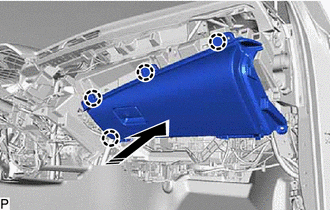

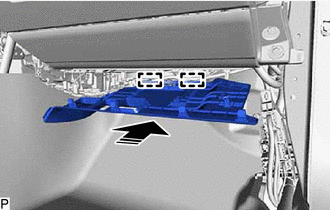

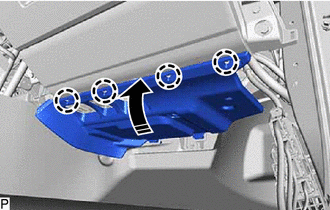

- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

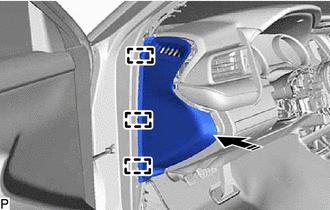

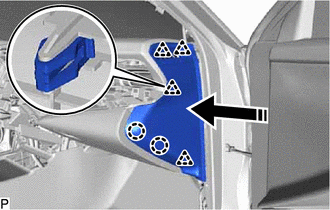

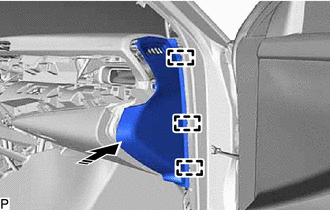

- INSTALL INSTRUMENT SIDE PANEL RH

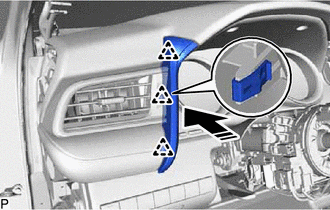

- INSTALL FRONT PILLAR GARNISH RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 27
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 1
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 29
- INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 30
- INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)
Refer to PROCEDURE - Step 7
- INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)
Refer to PROCEDURE - Step 8
- INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for 7 Inch Display)
Refer to PROCEDURE - Step 1

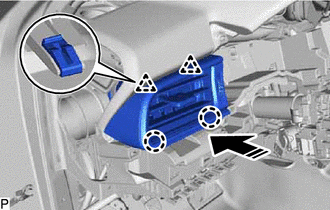

- INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
- INSTALL COMBINATION METER ASSEMBLY
Refer to PROCEDURE - Step 1

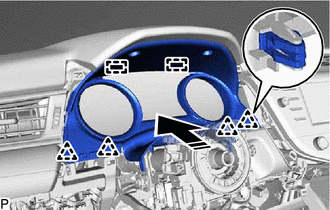

- INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 1

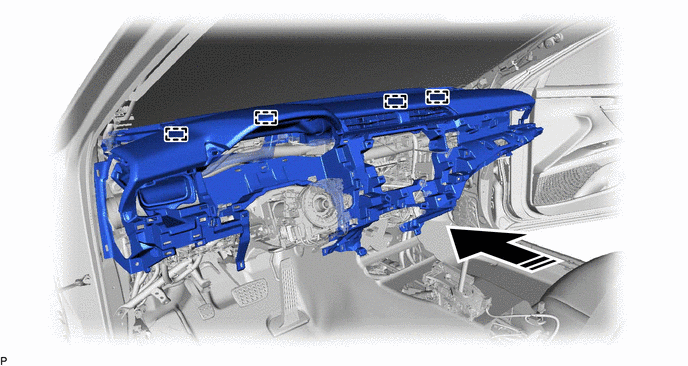

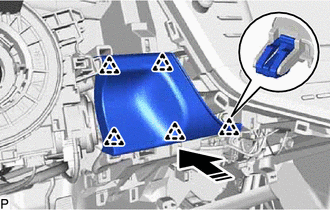

- INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
- CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Engage the claw and 2 guides to connect the hood lock control lever sub-assembly.
- INSTALL NO. 2 METER HOOD CLUSTER
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

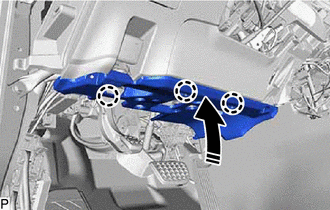

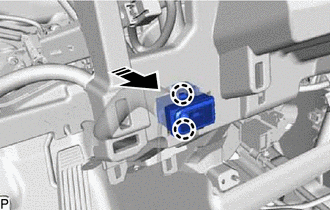

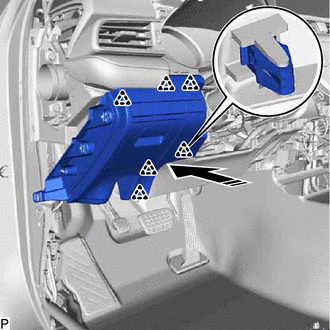

- Engage the 2 claws to connect the DLC3 connector.
- Engage the 2 clamps.
- Connect the connector.

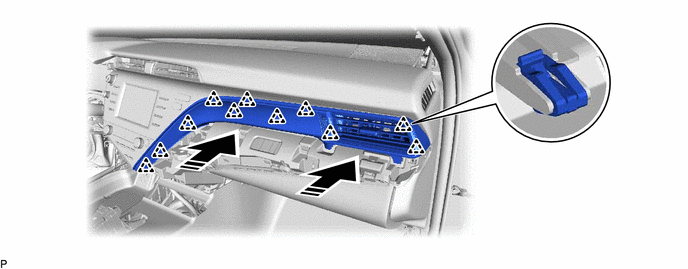

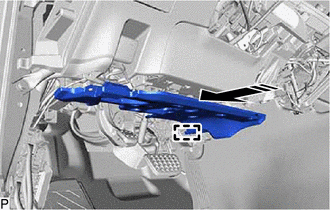

- Engage the guide as shown in the illustration.
Install in this Direction - Engage the 3 claws as shown in the illustration.
Install in this Direction - Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <C>.

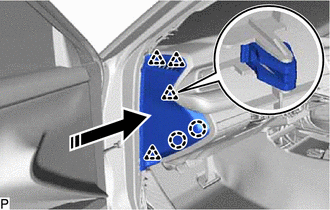

- INSTALL INSTRUMENT SIDE PANEL LH
- INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 27
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 29
- INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 30
- INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [03/2017 - 06/2017]
- INSTALL TURN SIGNAL SWITCH
Refer to PROCEDURE - Step 1
- INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 11
- INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- INSTALL STEERING WHEEL ASSEMBLY
Refer to PROCEDURE - Step 6
- CHECK STEERING WHEEL CENTER POINT
- INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION [03/2017 - 06/2017]
