Installation [03/2017 - 06/2017]: Procedure

  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. INSTALL STEERING COLUMN ASSEMBLY
    NOTE:

    Make sure that the wire harness is not interfering with the steering column assembly.

    1. Install the steering column assembly with the bolt and 2 nuts.

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

      NOTE:
      • After the column is installed, check the tilt operation.
      • If a large amount of force is required to operate the tilt mechanism or abnormal noise occurs, loosen the nuts and move the bracket forward or backward until the tilt operation works smoothly.

        Tighten the nuts and check the tilt operation again.

    2. Connect each connector and engage each wire harness clamp to the steering column assembly.
  3. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the steering intermediate shaft assembly and steering column assembly.

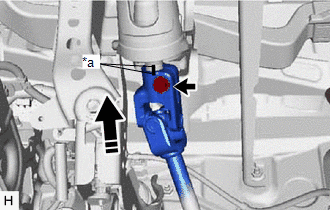

      GTY754616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Install the steering intermediate shaft assembly to the steering column assembly.
    3. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

    4. Tighten the clamp.
      GTY742692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STEERING COLUMN HOLE COVER
    1. Install the steering column hole cover with the 2 clips.
    2. Install the clip.
    3. Return the floor carpet.
  5. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 11

  6. INSTALL FRONT WHEEL LH

    Refer to INSTALLATION [03/2017 - 06/2017]

  7. INSTALL NO. 1 AIR DUCT
    1. Engage the 3 claws to install a new No. 1 air duct.
      GTY767109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 bolts.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  8. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [03/2017 - 06/2017]

  9. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not remove/install the spiral cable with sensor sub-assembly with the battery connected and the ignition switch ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the battery connected and the ignition switch ON.
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    1. Using pliers, expand the clamp.

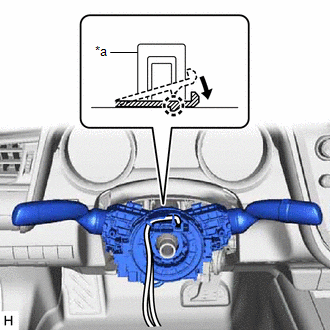

      GTY746589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
    2. While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.
    3. Return the clamp to its original position.
    4. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
  10. INSTALL TRANSPONDER KEY COIL (w/o Smart Key System)
    1. Engage the 2 claws to install the transponder key coil.
      GTY767112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  11. INSTALL UPPER STEERING COLUMN COVER
    1. GTY767110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the 2 claws and 4 clips to connect the upper steering column cover.

    2. Engage the claw to install the upper steering column cover.

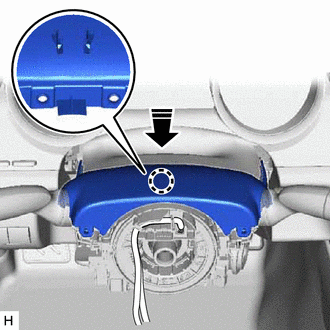

      GTY748647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this direction
  12. INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY
    1. Engage the 2 claws to install the lower steering column cover sub-assembly.

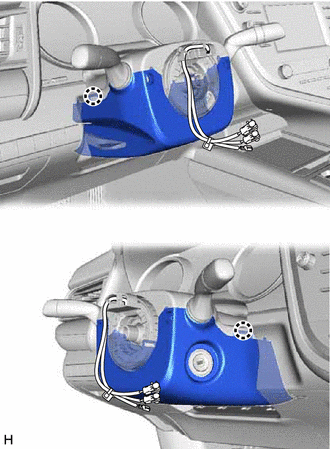

      GTY742685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 screws.
      GTY767118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  14. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  15. INSTALL STEERING WHEEL ASSEMBLY

    See step  6

  16. CHECK STEERING WHEEL CENTER POINT
  17. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [03/2017 - 06/2017]

  18. PERFORM INITIALIZATION AND CALIBRATION (w/ Parking Assist Monitor System)

    For Initialization: Refer to INITIALIZATION [03/2017 - ]

    For Calibration: Refer to CALIBRATION [03/2017 - 06/2017]
