Installation [03/2017 - 10/2020]: Procedure

  1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for 7 Inch Display)
    1. Connect the connector.

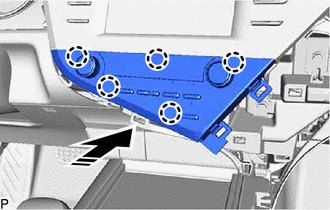

    2. Engage the 5 claws to install the air conditioning control assembly as shown in the illustration.
      GTY771387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY (for 8 Inch Display)

    Refer to INSTALLATION [03/2017 - 06/2017] , or refer to INSTALLATION [06/2017 - 10/2020]

  3. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 20 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 20 [06/2017 - 10/2020]

  4. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 12 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 12 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 11 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 11 [03/2020 - ]

  5. INSTALL NO. 1 METER HOOD CLUSTER (for 7 Inch Display)

    Refer to PROCEDURE - Step 13 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 13 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 12 [09/2019 - 03/2020] , or refer to PROCEDURE - Step 12 [03/2020 - ]
